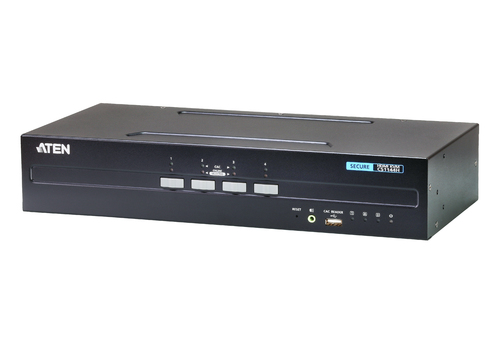

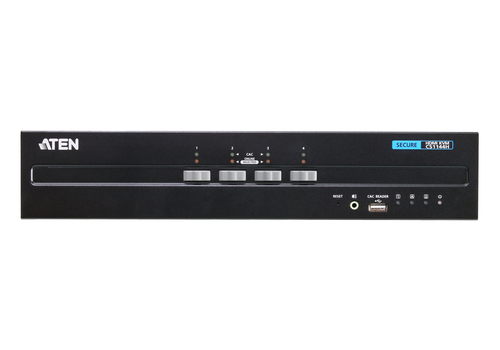

4-Port USB HDMI Dual Display Secure KVM Switch (PSS PP v3.0 Compliant)
Model CS1144H-AT-U
37 specifications
- Weight2.13 kg
- ColourBlack
- Number of computers controlled4
- HD type4K Ultra HD
- Rack mountingNo
- Power sourceAC
Overview
- Weight
- 2.13 kg
- Colour
- Black
- Number of computers controlled
- 4
- HD type
- 4K Ultra HD
- Rack mounting
- No
- Power source
- AC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1144H-AT-U
- Part number
- CS1144H-AT-U
- Also known as
- ATEN 4-Port USB HDMI Dual Display Secure KVM Switch (PSS PP v3.0 Compliant)
Specifications
37 specifications in 9 groups

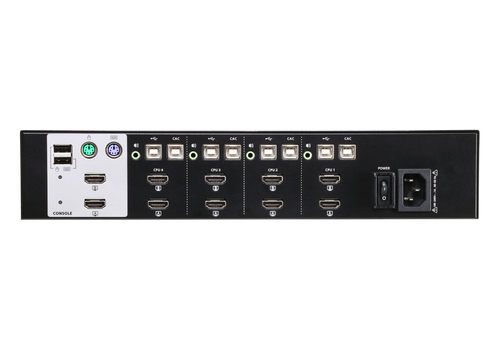

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | HDMI |
| HDMI ports quantity | 8 |
| USB 2.0 Type-B ports quantity | 8 |
| Console USB ports quantity | 2 |
| Console ports | HDMI, PS/2, USB A |
| Console HDMI ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| PS/2 ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 4 |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 30 Hz |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 3.6 W |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 335 mm |
| Depth | 164 mm |
| Height | 66 mm |
| Weight | 2.13 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
