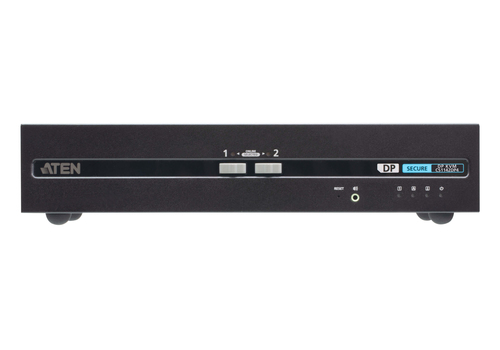

CS1142DP4 KVM switch Black
Model CS1142DP4EAN 672792013300
41 specifications
- Weight2.07 kg
- ColourBlack
- Number of computers controlled2
- HD type4K Ultra HD
- Built-in displayNo
- Power sourceAC
Overview
- Weight
- 2.07 kg
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- 4K Ultra HD
- Built-in display
- No
- Power source
- AC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1142DP4
- Part numbers
- CS1142DP4, CS1142DP4-AT-G, CS1142DP4-AT-E
- EAN / UPC
- 672792013300, 4710469341496
- Also known as
- ATEN CS1142DP4 KVM switch Black
Specifications
41 specifications in 10 groups

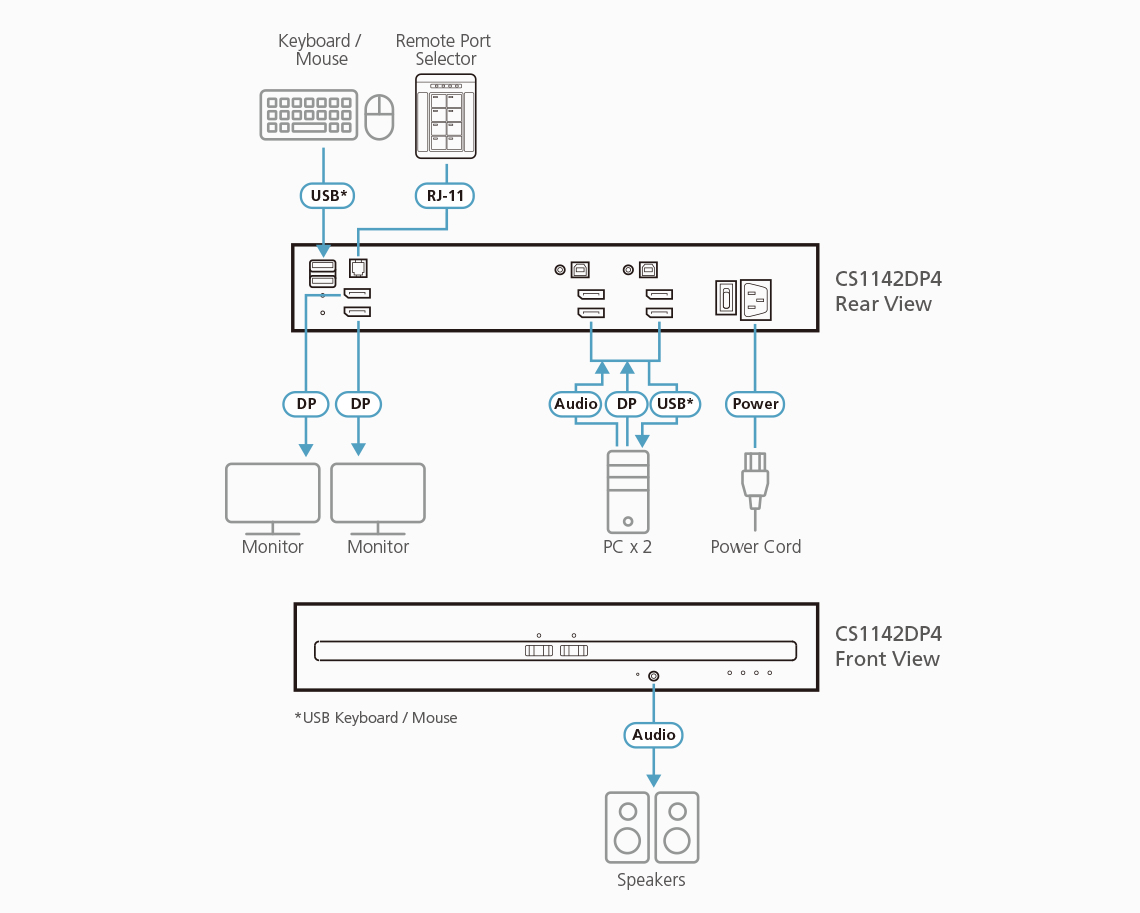

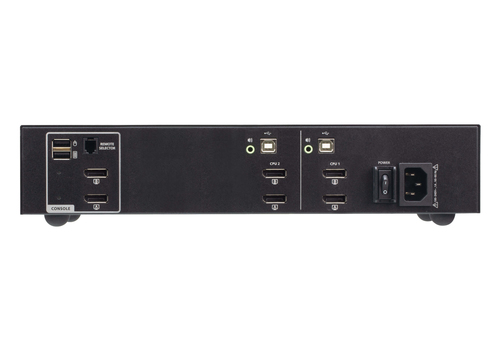

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 4 |
| USB 2.0 Type-B ports quantity | 2 |
| Console USB ports quantity | 2 |
| Console ports | DisplayPort, USB A |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 1 |
| Audio connections | Yes |
| Headphone outputs | 2 |
| RJ-11 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Wired remote switch | Yes |
| LED indicators | Yes |
| Push button | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 10.19 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 163.9 mm |
| Depth | 335 mm |
| Height | 65.5 mm |
| Weight | 2.07 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 131 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 2.91 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
