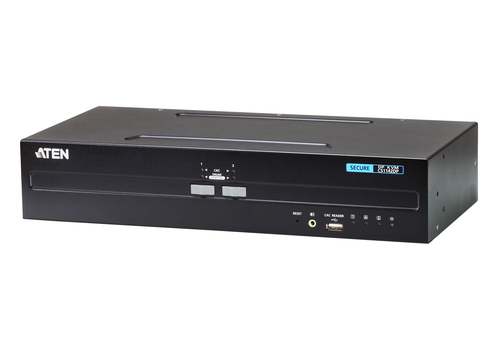

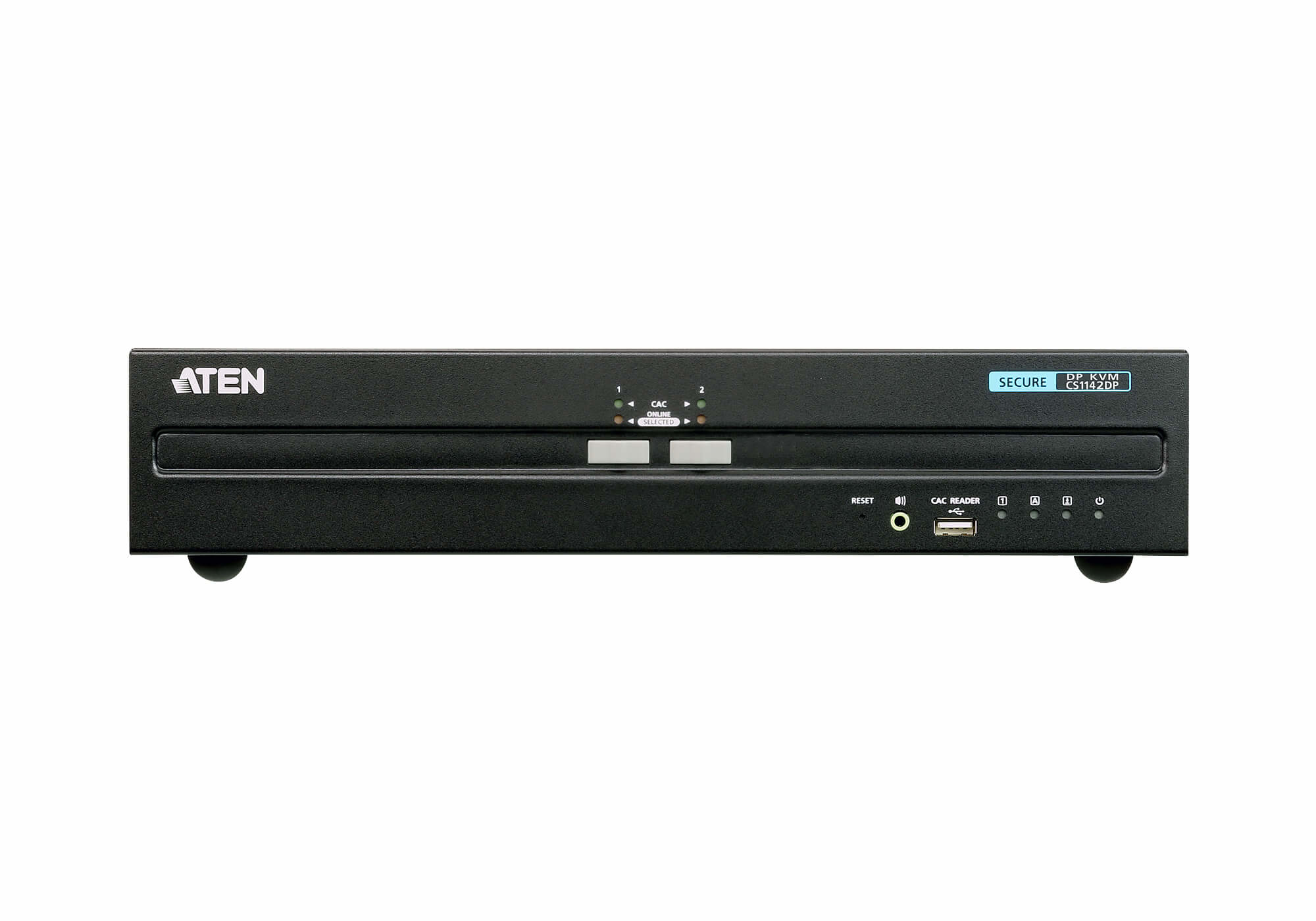

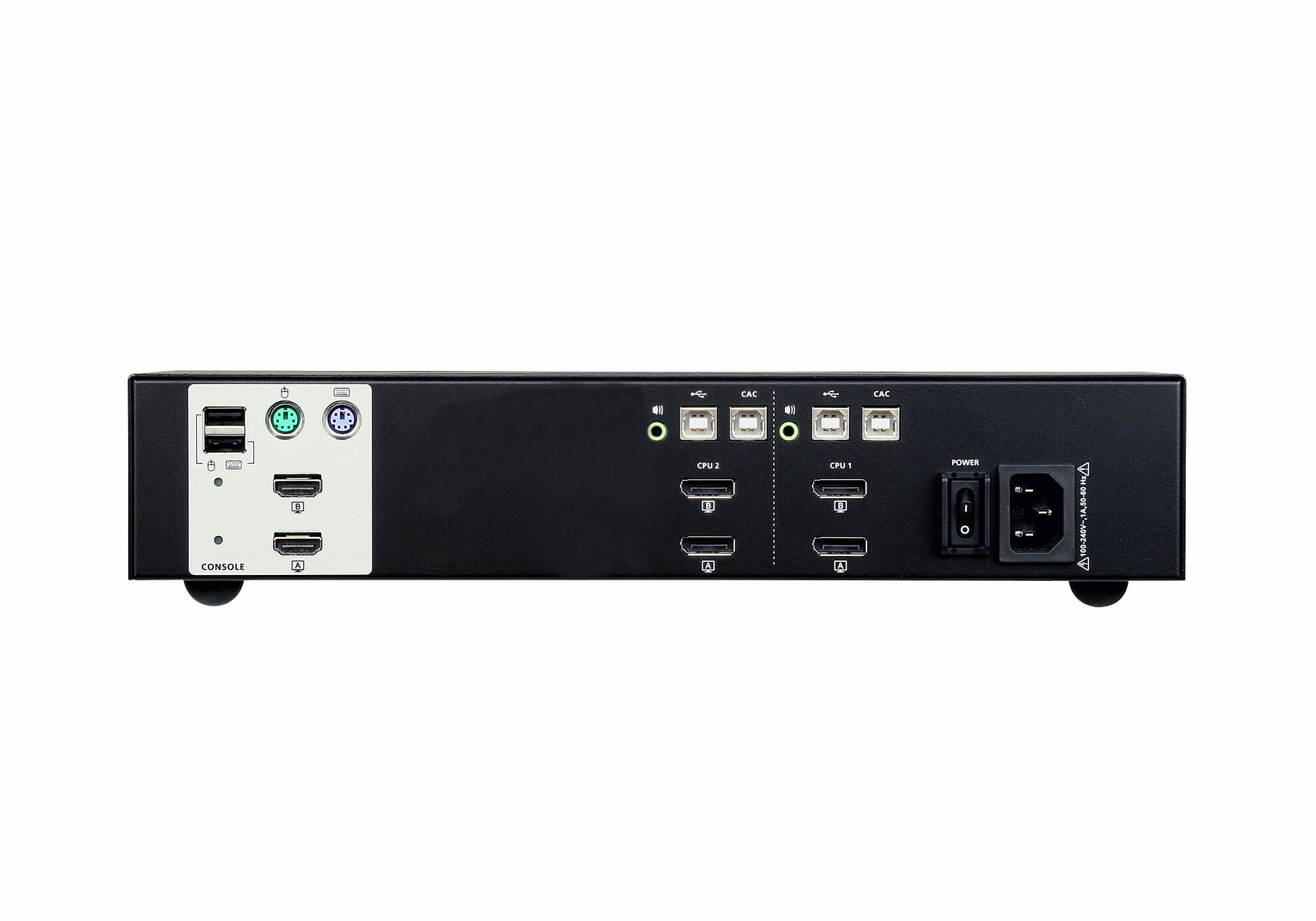

CS1142DP-AT-U KVM switch Black
Model CS1142DP-AT-U
32 specifications
- Weight2.31 kg
- ColourBlack
- Number of computers controlled2
- Ethernet LANNo
- HD type4K Ultra HD
- Power sourceAC
Overview
- Weight
- 2.31 kg
- Colour
- Black
- Number of computers controlled
- 2
- Ethernet LAN
- No
- HD type
- 4K Ultra HD
- Power source
- AC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1142DP-AT-U
- Part number
- CS1142DP-AT-U
- Also known as
- ATEN CS1142DP-AT-U KVM switch Black
Specifications
32 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 4 |
| USB 2.0 Type-B ports quantity | 4 |
| Console USB ports quantity | 2 |
| Console ports | HDMI, PS/2, USB A |
| USB hub | No |
| USB connector type | USB Type-A, USB Type-B |
| Headphone outputs | 3 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 335 mm |
| Depth | 163.9 mm |
| Height | 65.5 mm |
| Weight | 2.31 kg |
