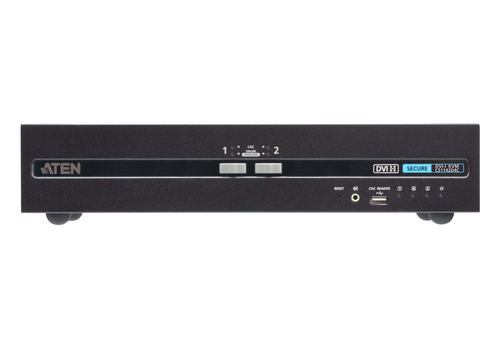

CS1142D4C KVM switch Rack mounting Black
Model CS1142D4CEAN 672792013805
38 specifications
- Weight2.19 kg
- ColourBlack
- Number of computers controlled2
- HD type4K Ultra HD
- Rack mountingYes
- Built-in displayNo
Overview
- Weight
- 2.19 kg
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- 4K Ultra HD
- Rack mounting
- Yes
- Built-in display
- No
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1142D4C
- Part numbers
- CS1142D4C, CS1142D4C-AT-E
- EAN / UPC
- 672792013805
- Also known as
- ATEN CS1142D4C KVM switch Rack mounting Black
Specifications
38 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 4 |
| USB 2.0 Type-B ports quantity | 4 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, DVI-I, USB A |
| Console DVI-I ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 3 |
| RJ-11 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 30 Hz |
| Number of displays supported | 2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Certification | 4K,NIAP,common_criteria,CC |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 163.9 mm |
| Depth | 335 mm |
| Height | 65.5 mm |
| Weight | 2.19 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.03 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Other features
| Specification | Value |
|---|---|
| Compatibility | 2L-7D03UDX5,2L-7D02UDX3,2X-046G,2XRT-0019G |
| I/O ports | USB CAC Port |
