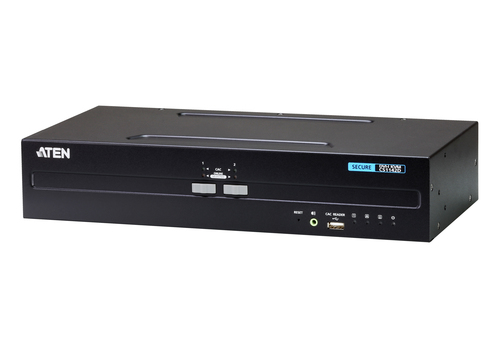

CS1142D-AT-U KVM switch Black
Model CS1142D-AT-U
45 specifications
- Weight2.12 kg
- ColourBlack
- Number of computers controlled2
- Ethernet LANNo
- HD type4K Ultra HD
- Power sourceAC
Overview
- Weight
- 2.12 kg
- Colour
- Black
- Number of computers controlled
- 2
- Ethernet LAN
- No
- HD type
- 4K Ultra HD
- Power source
- AC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1142D-AT-U
- Part number
- CS1142D-AT-U
- Also known as
- ATEN CS1142D-AT-U KVM switch Black
Specifications
45 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D |
| DVI-D ports quantity | 6 |
| USB 2.0 Type-B ports quantity | 4 |
| Console USB ports quantity | 2 |
| Console ports | DVI-D, PS/2, USB A |
| USB hub | No |
| USB connector type | USB Type-A, USB Type-B |
| PS/2 ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Ethernet LAN (RJ-45) ports | 0 |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Cable lock slot | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 5.8 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 335 mm |
| Depth | 163.9 mm |
| Height | 65.5 mm |
| Weight | 2.12 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 131 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 2.93 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
