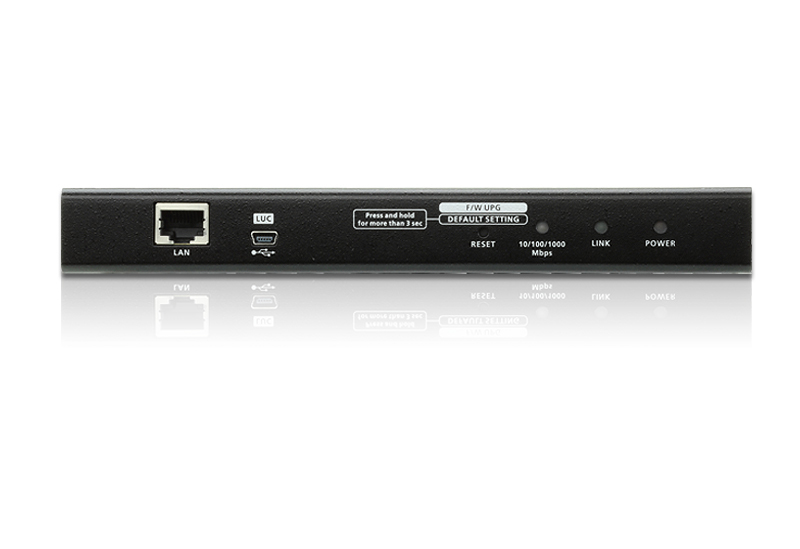

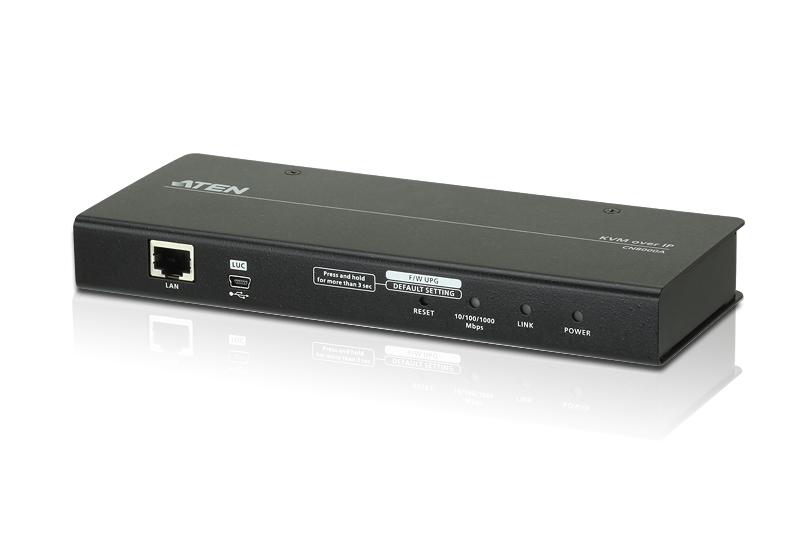

CN8000A-AT-E KVM switch Rack mounting Black
Model CN8000A-AT-E
47 specifications
- Weight1.05 kg
- ColourBlack
- Number of computers controlled1
- Ethernet LANYes
- HD typeWUXGA
- Built-in displayNo
Overview
- Weight
- 1.05 kg
- Colour
- Black
- Number of computers controlled
- 1
- Ethernet LAN
- Yes
- HD type
- WUXGA
- Built-in display
- No
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CN8000A-AT-E
- Part number
- CN8000A-AT-E
- Also known as
- ATEN CN8000A-AT-E KVM switch Rack mounting Black
Specifications
47 specifications in 12 groups

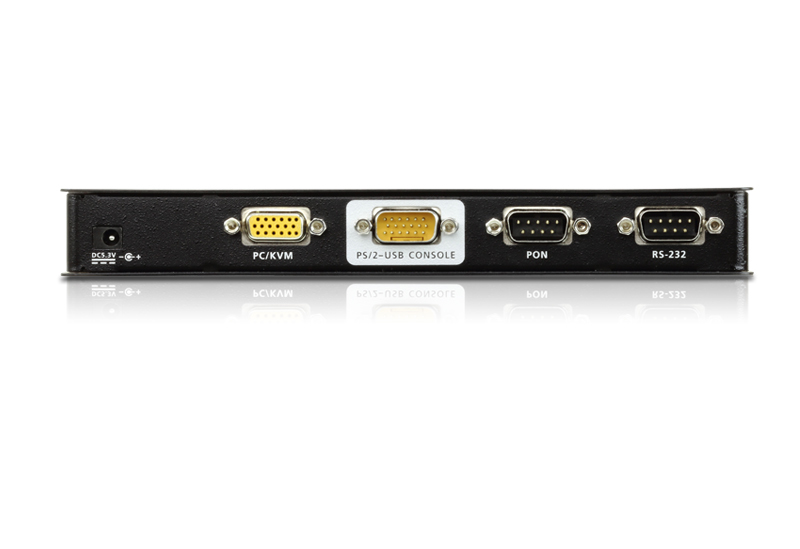

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 1 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Console ports | USB B, VGA (D-Sub) |
| USB connector type | Mini-USB B |
| Serial port type | RS-232 |
| Serial ports quantity | 1 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Security algorithms | TLS |
Performance
| Specification | Value |
|---|---|
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| DDC2B support | Yes |
| Number of users | 64 user(s) |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 5.3 V |
| External power adapter | Yes |
| Power consumption (typical) | 7.26 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 81.4 mm |
| Depth | 25 mm |
| Height | 200 mm |
| Weight | 1.05 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 100 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.23 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| AC adapter included | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
