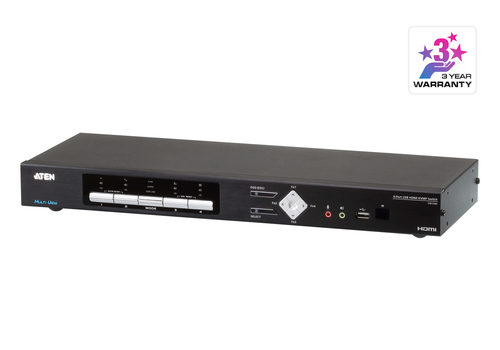

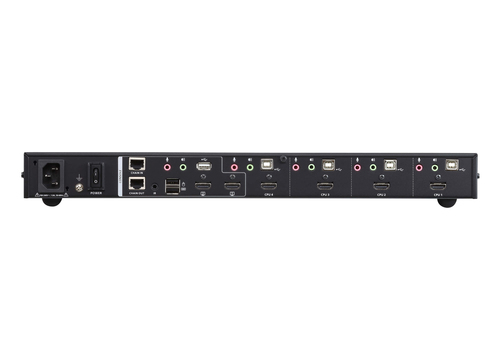

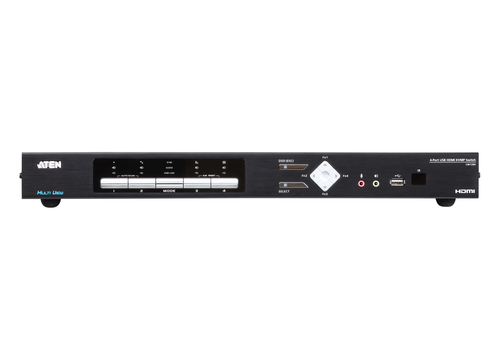

CM1284-AT-E KVM switch Rack mounting Black
Model CM1284-AT-E
55 specifications
- Weight3.86 kg
- ColourBlack
- Number of computers controlled4
- Ethernet LANYes
- HD type4K Ultra HD
- Rack capacity1U
Overview
- Weight
- 3.86 kg
- Colour
- Black
- Number of computers controlled
- 4
- Ethernet LAN
- Yes
- HD type
- 4K Ultra HD
- Rack capacity
- 1U
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CM1284-AT-E
- Part number
- CM1284-AT-E
- Also known as
- ATEN CM1284-AT-E KVM switch Rack mounting Black
Specifications
55 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 6 |
| USB 2.0 Type-B ports quantity | 4 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, HDMI, RJ–45, USB A |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 6 |
| Number of microphone inputs | 6 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 30 Hz |
| Scan interval | 5,10,15,30,60,90 s |
| HDCP | Yes |
| Hot-Plug support | Yes |
| Daisy chain | Yes |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| Cascadable | Yes |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 110 - 220 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 16 W |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437.2 mm |
| Depth | 164 mm |
| Height | 44 mm |
| Weight | 3.86 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 131 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 4.26 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | HDMI, USB |
| AC adapter included | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
