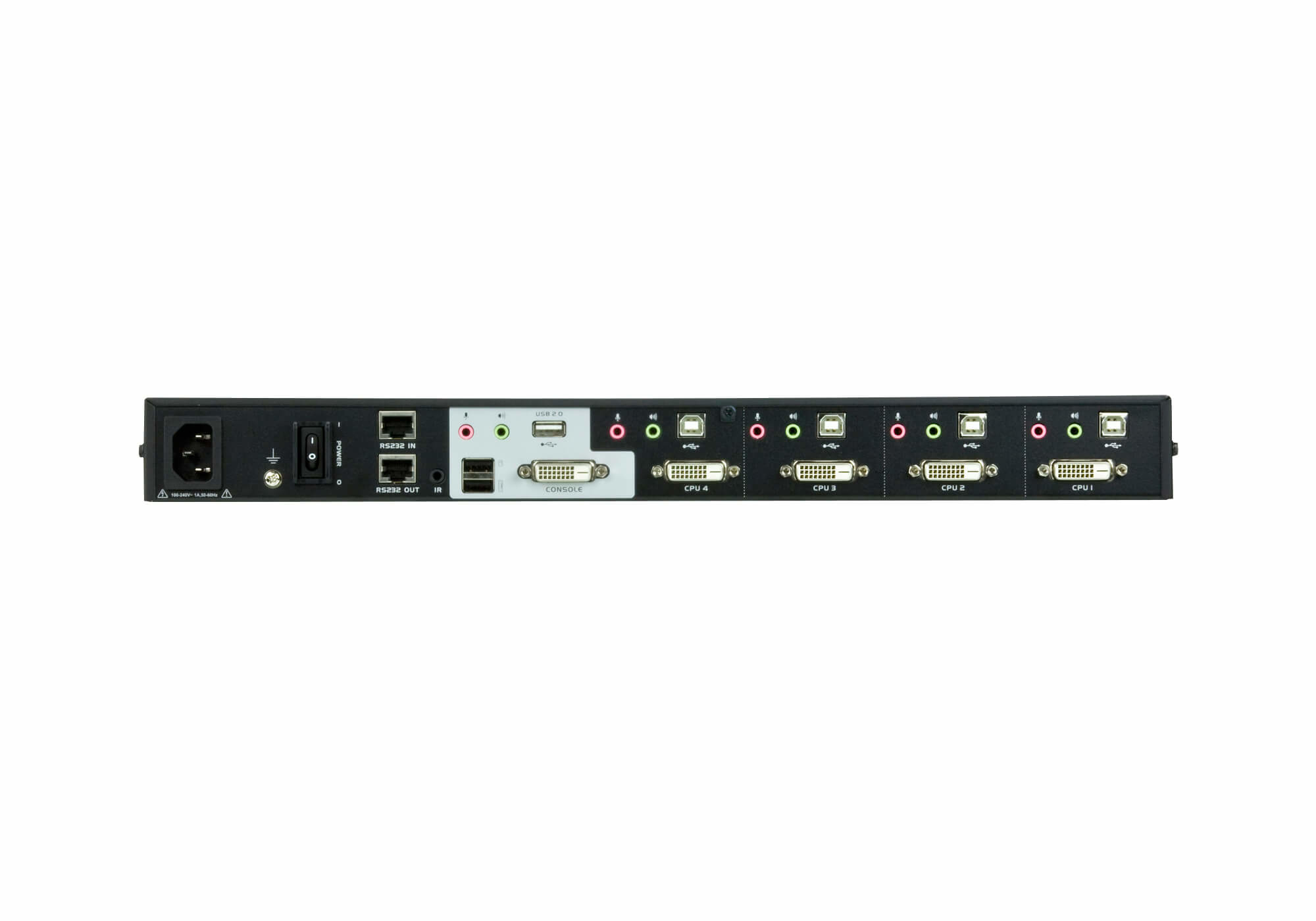

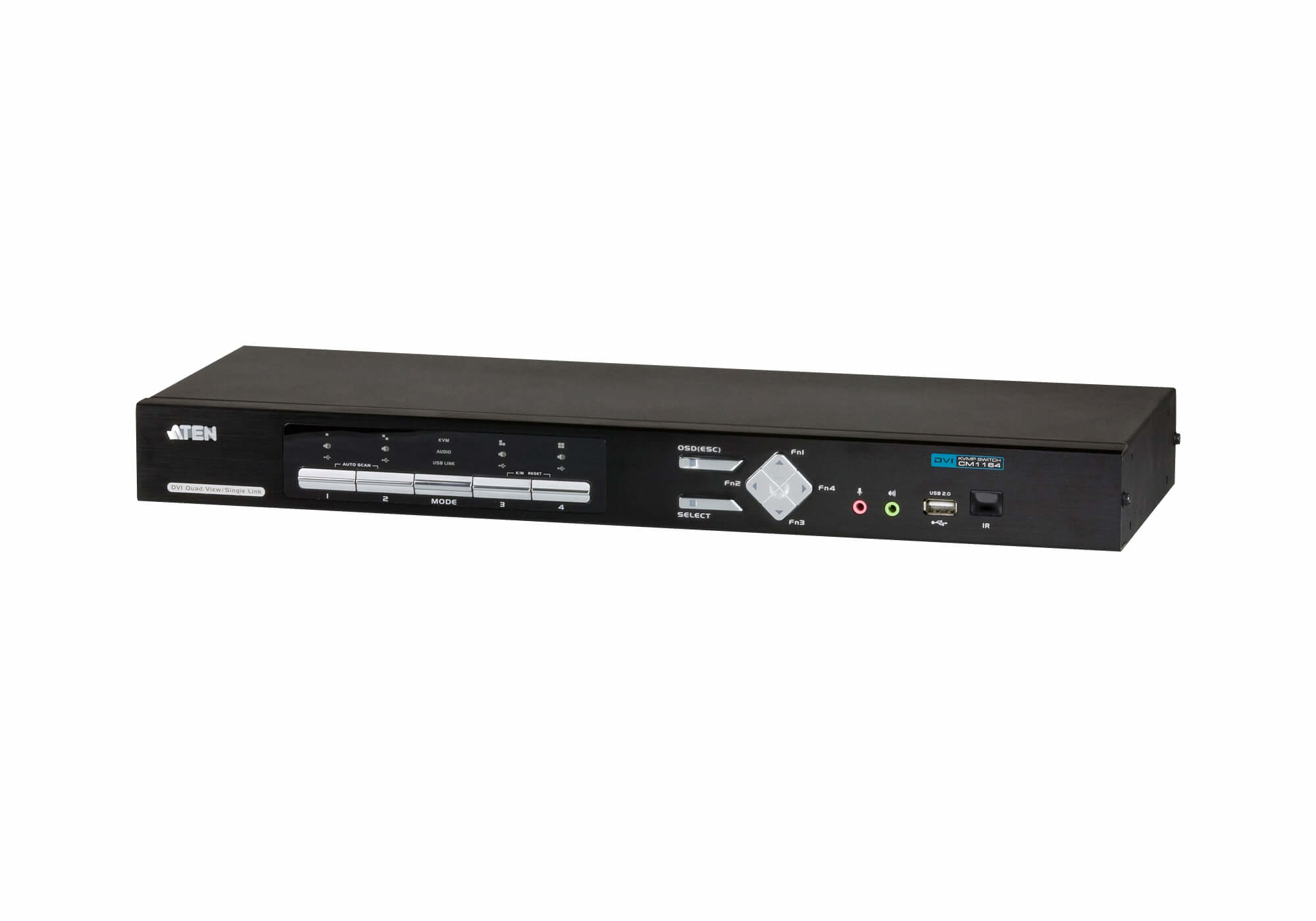

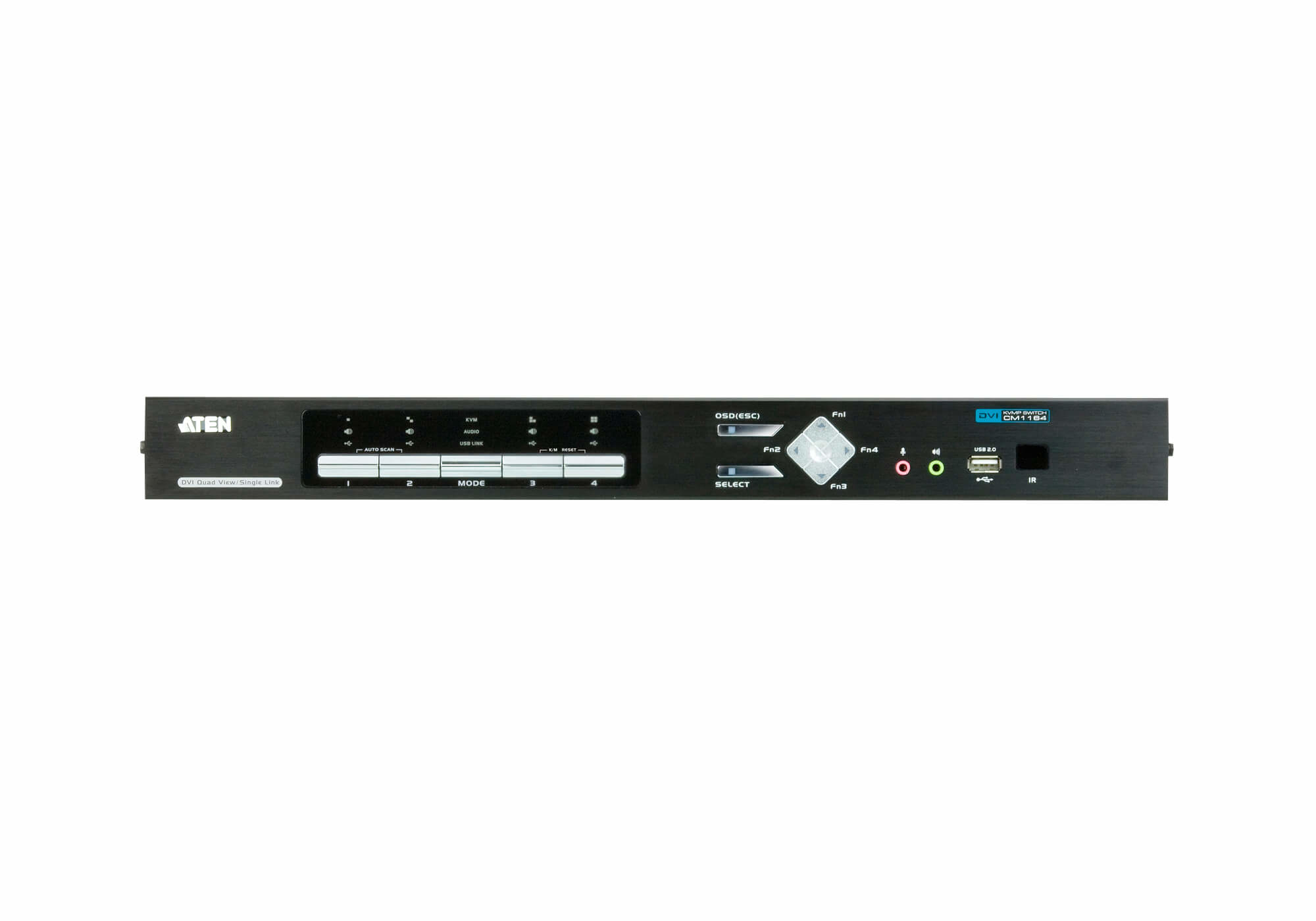

CM1164-AT-G KVM switch Black
Model CM1164-AT-GEAN 390585293189
41 specifications
- Weight2.5 kg
- ColourBlack
- Number of computers controlled4
- Ethernet LANYes
- HD typeWUXGA
- Built-in displayNo
Overview
- Weight
- 2.5 kg
- Colour
- Black
- Number of computers controlled
- 4
- Ethernet LAN
- Yes
- HD type
- WUXGA
- Built-in display
- No
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CM1164-AT-G
- Part number
- CM1164-AT-G
- EAN / UPC
- 390585293189, 617407438192, 672792003592, 6727920035922
- Also known as
- ATEN CM1164-AT-G KVM switch Black
Specifications
41 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D |
| DVI-D ports quantity | 5 |
| DVI-I ports quantity | 1 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-D, RJ–45, USB A |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 5 |
| Number of microphone inputs | 5 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
Performance
| Specification | Value |
|---|---|
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,99 s |
| Auto scan delay (min) | 1 s |
| Auto scan delay (max) | 99 s |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 15.2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437.2 mm |
| Depth | 163.8 mm |
| Height | 44 mm |
| Weight | 2.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
