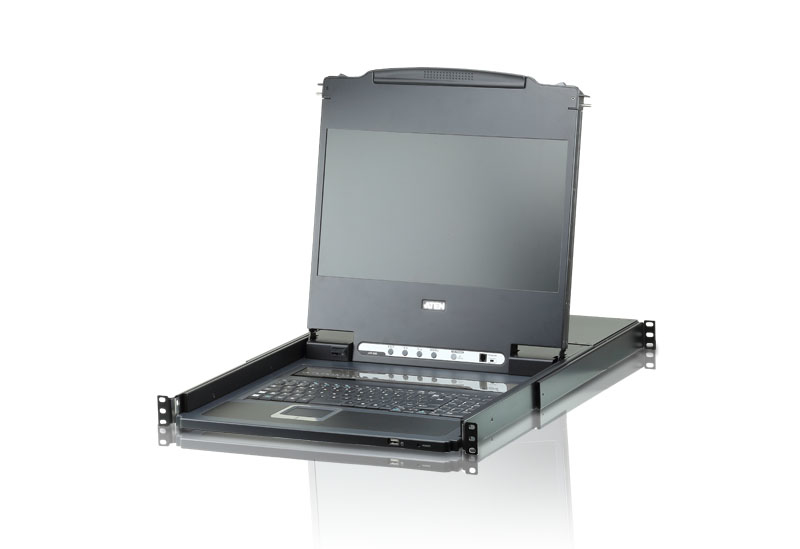

CL6708MW-ATA-XG KVM switch Rack mounting Black
Model CL6708MW-ATA-XGEAN 5715328143500
43 specifications
- Display43.9 cm (17.3")
- Weight13.5 kg
- ColourBlack
- Number of computers controlled8
- HD typeWUXGA
- Rack mountingYes
Overview
- Display
- 43.9 cm (17.3")
- Weight
- 13.5 kg
- Colour
- Black
- Number of computers controlled
- 8
- HD type
- WUXGA
- Rack mounting
- Yes
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CL6708MW-ATA-XG
- Part number
- CL6708MW-ATA-XG
- EAN / UPC
- 5715328143500
- Also known as
- ATEN CL6708MW-ATA-XG KVM switch Rack mounting Black
Specifications
43 specifications in 10 groups

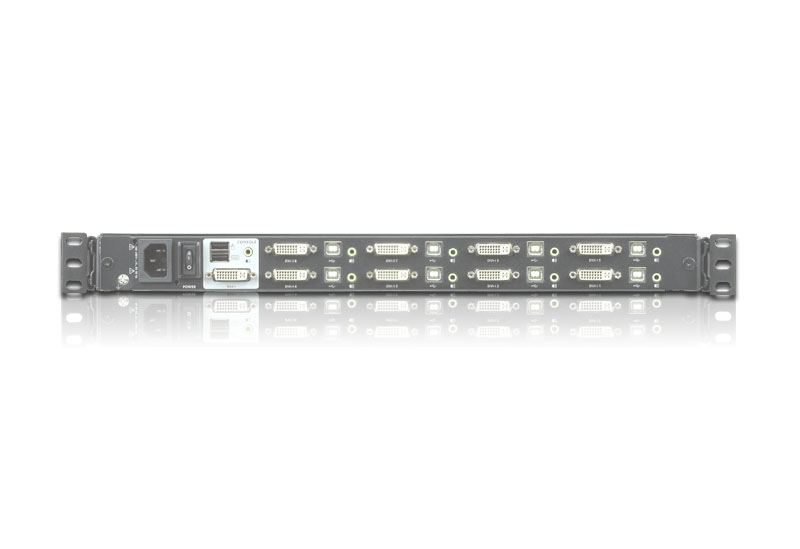

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 8 |
| USB 2.0 Type-B ports quantity | 8 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, DVI-I, USB A |
Performance
| Specification | Value |
|---|---|
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 1,255 s |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal, Plastic |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 43.9 cm (17.3") |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 689.2 mm |
| Depth | 480 mm |
| Height | 44 mm |
| Weight | 13.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 660 mm |
| Package depth | 825 mm |
| Package height | 135 mm |
| Package weight | 16.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case net weight | 13.5 kg |
| Master (outer) case width | 660 mm |
| Master (outer) case length | 825 mm |
| Master (outer) case height | 135 mm |
| Master (outer) case gross weight | 16.6 kg |
| Products per master (outer) case | 1 pc(s) |
