CL5716N-ATA-EE KVM switch Rack mounting Black
Model CL5716N-ATA-EE
42 specifications
- Display48.3 cm (19")
- Weight13.7 kg
- ColourBlack
- Number of computers controlled512
- HD typeWUXGA
- Rack capacity1U
Overview
- Display
- 48.3 cm (19")
- Weight
- 13.7 kg
- Colour
- Black
- Number of computers controlled
- 512
- HD type
- WUXGA
- Rack capacity
- 1U
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CL5716N-ATA-EE
- Part number
- CL5716N-ATA-EE
- Also known as
- ATEN CL5716N-ATA-EE KVM switch Rack mounting Black
Specifications
42 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 512 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |

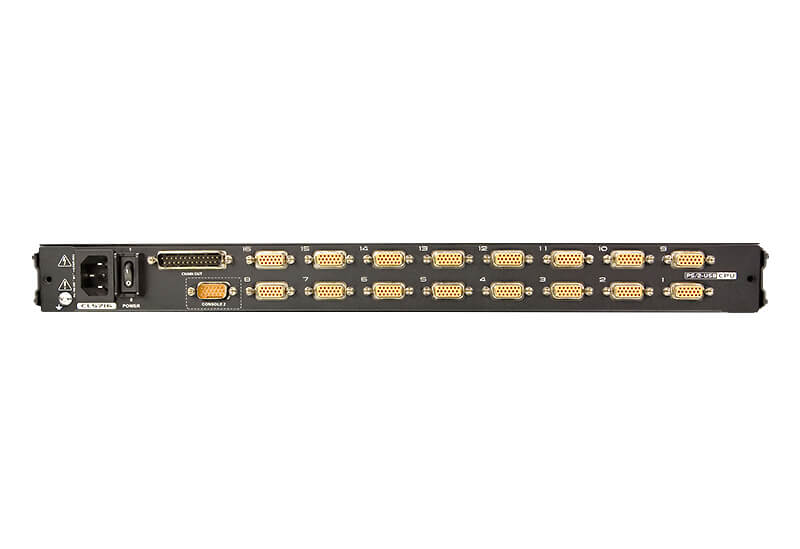

| VGA (D-Sub) ports quantity | 16 |
| Console ports | VGA (D-Sub) |
Performance
| Specification | Value |
|---|---|
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
| DDC2B support | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Daisy chain | Yes |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal, Plastic |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 48.3 cm (19") |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 27.9 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 480 mm |
| Depth | 689.2 mm |
| Height | 44 mm |
| Weight | 13.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, KVM |
| Manual | Yes |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
