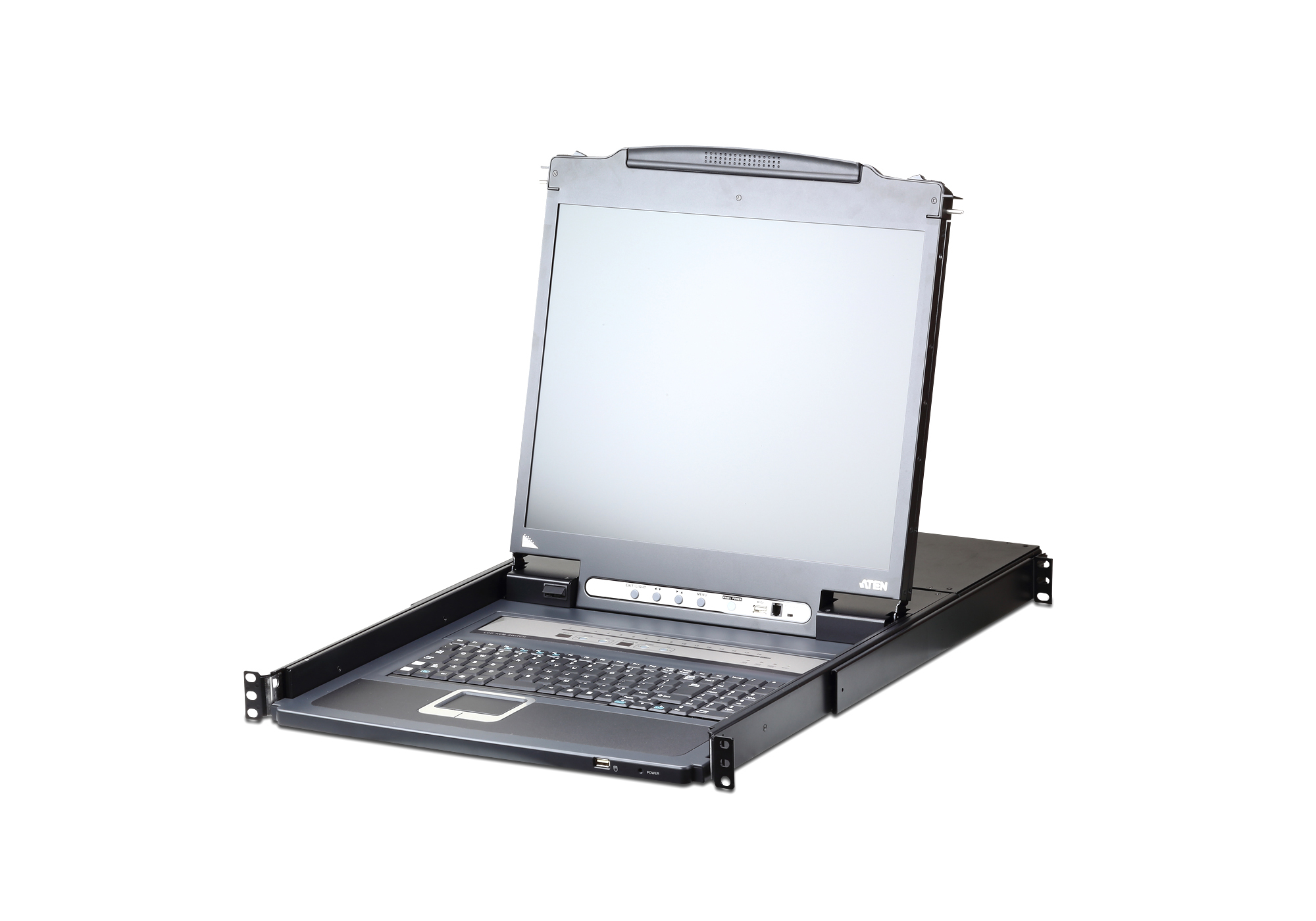

CL5716IM-ATA-EE KVM switch Rack mounting Black
Model CL5716IM-ATA-EE
39 specifications
- Display43.2 cm (17")
- Weight14.3 kg
- ColourBlack
- Number of computers controlled1
- Ethernet LANYes
- HD typeWUXGA
Overview
- Display
- 43.2 cm (17")
- Weight
- 14.3 kg
- Colour
- Black
- Number of computers controlled
- 1
- Ethernet LAN
- Yes
- HD type
- WUXGA
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CL5716IM-ATA-EE
- Part number
- CL5716IM-ATA-EE
- Also known as
- ATEN CL5716IM-ATA-EE KVM switch Rack mounting Black
Specifications
39 specifications in 10 groups

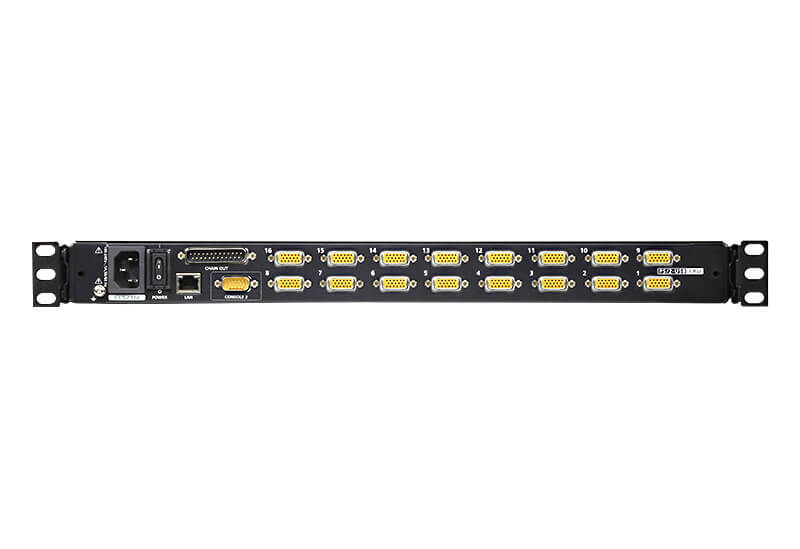

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 16 |
| Console ports | VGA (D-Sub) |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Performance
| Specification | Value |
|---|---|
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 75 Hz |
| Scan interval | 1,255 s |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 43.2 cm (17") |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 642.7 mm |
| Depth | 480 mm |
| Height | 44 mm |
| Weight | 14.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 668 mm |
| Package depth | 718 mm |
| Package height | 135 mm |
| Package weight | 17 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Quick installation guide | Yes |
