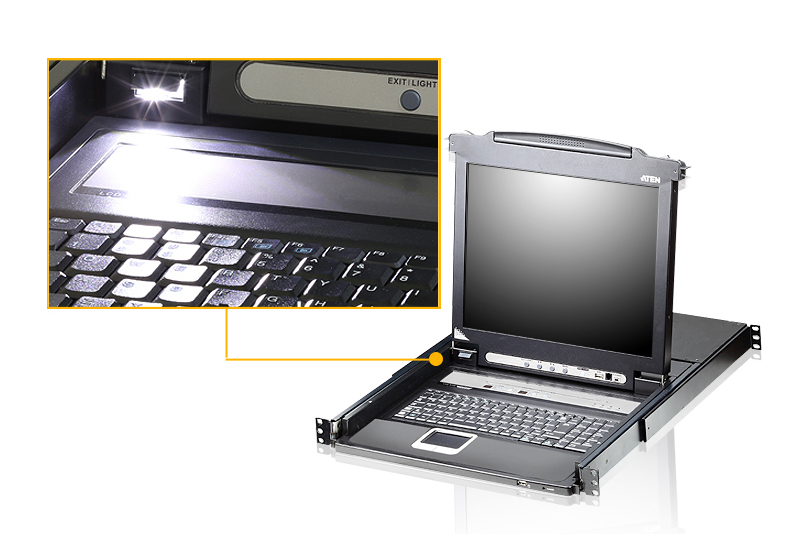

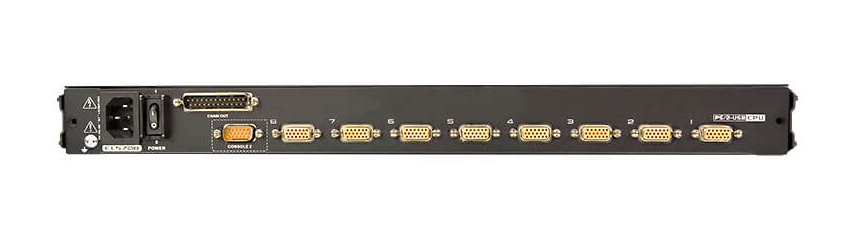

CL5708M-AT-EG KVM switch Rack mounting Black
Model CL5708M-AT-EG
39 specifications
- Display43.2 cm (17")
- Weight13.7 kg
- ColourBlack
- Number of computers controlled8
- HD typeWUXGA
- Rack capacity1U
Overview
- Display
- 43.2 cm (17")
- Weight
- 13.7 kg
- Colour
- Black
- Number of computers controlled
- 8
- HD type
- WUXGA
- Rack capacity
- 1U
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CL5708M-AT-EG
- Part number
- CL5708M-AT-EG
- Also known as
- ATEN CL5708M-AT-EG KVM switch Rack mounting Black
Specifications
39 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Console ports | VGA (D-Sub) |
| USB connector type | USB Type-A |
Performance
| Specification | Value |
|---|---|
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 1,255 s |
| DDC2B support | Yes |
| Hot-swap | Yes |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal, Plastic |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 43.2 cm (17") |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 642.7 mm |
| Depth | 480 mm |
| Height | 44 mm |
| Weight | 13.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 668 mm |
| Package depth | 718 mm |
| Package height | 135 mm |
| Package weight | 16.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Quick installation guide | Yes |
