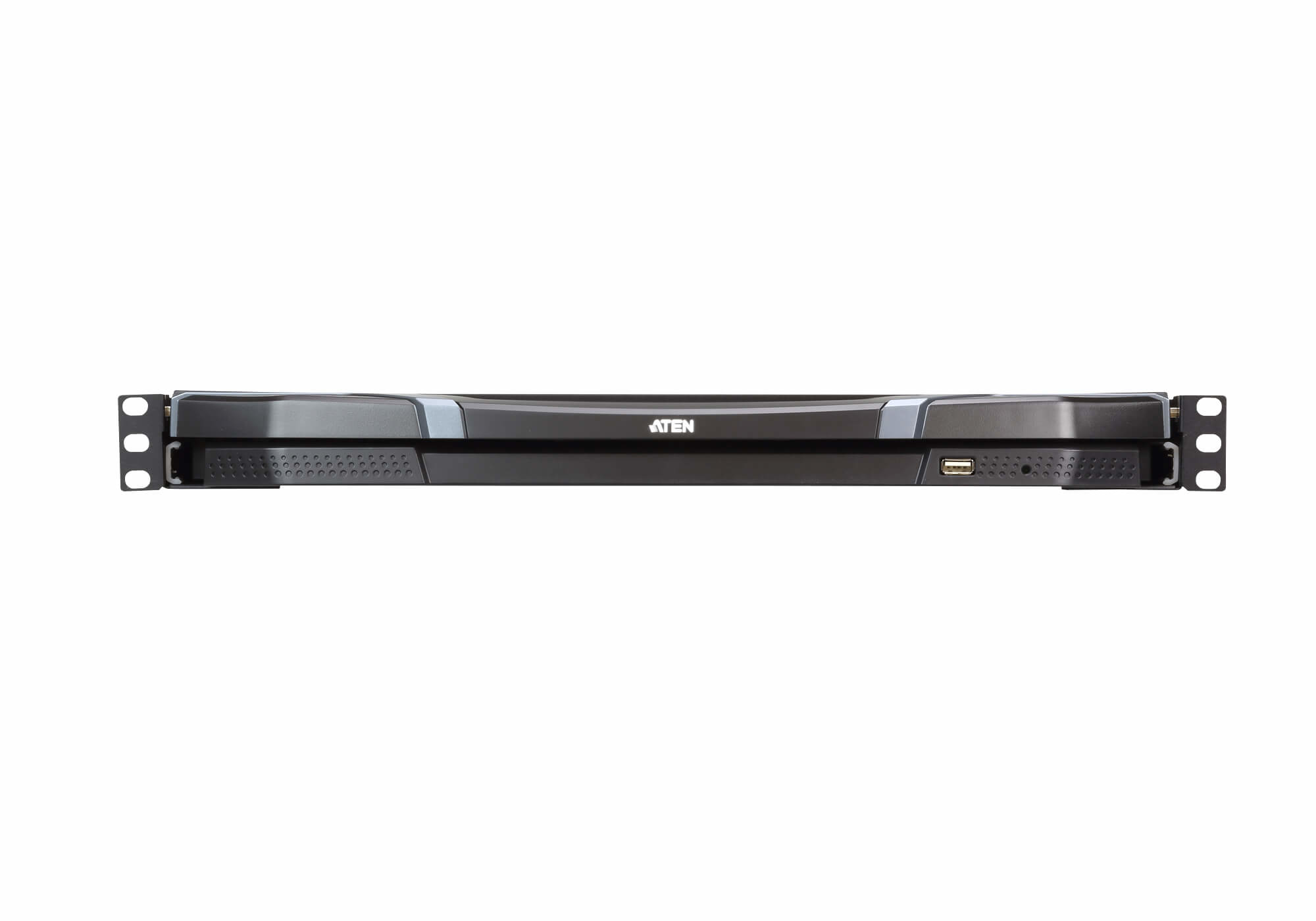

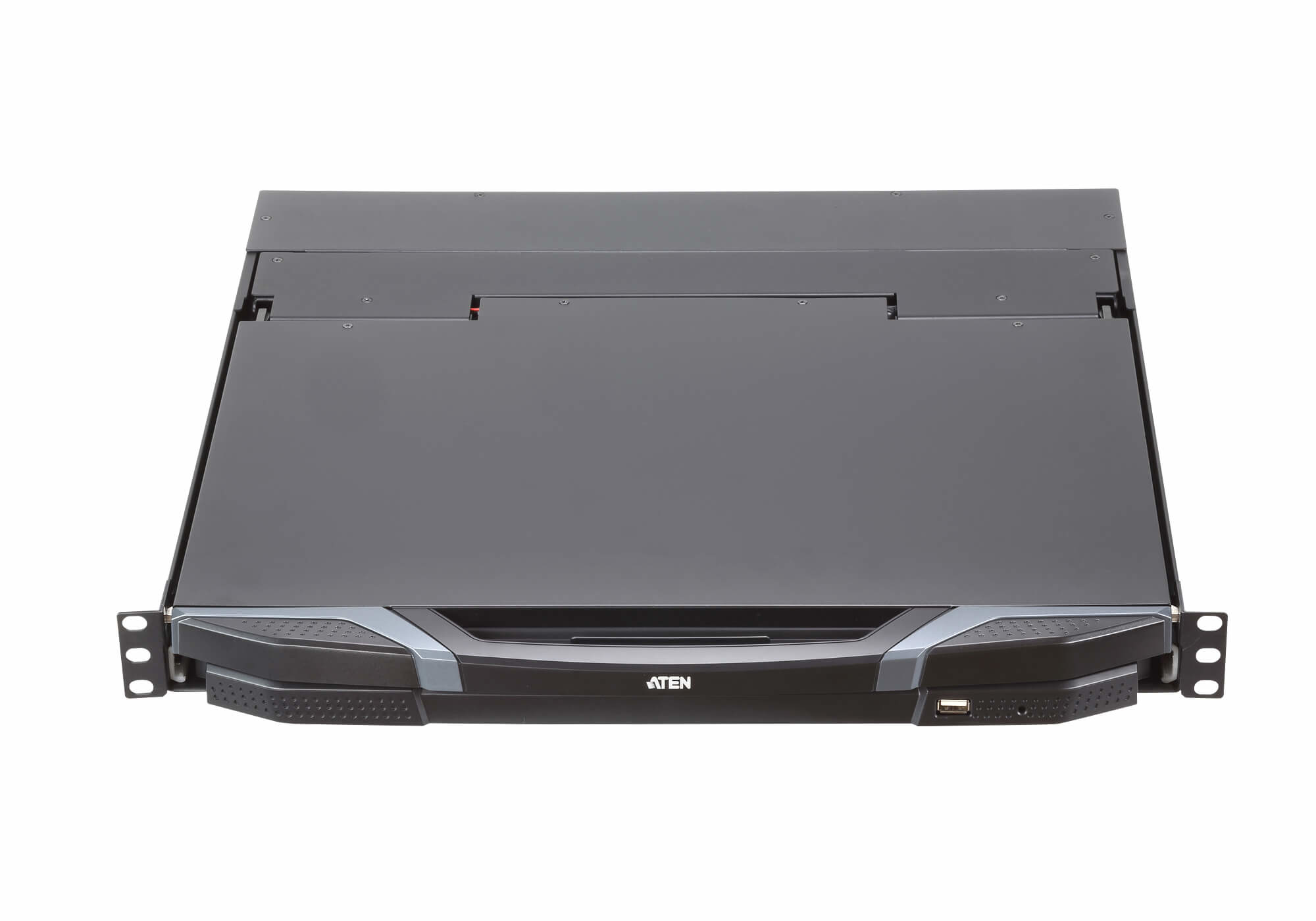

CL3800NW KVM switch Rack mounting Black
Model CL3800NWPart no. CL3800NW-UKEAN 5704174981312
44 specifications
- Display47 cm (18.5")
- Weight9.61 kg
- ColourBlack
- Number of computers controlled1
- HD typeFull HD
- Rack capacity1U
Overview
- Display
- 47 cm (18.5")
- Weight
- 9.61 kg
- Colour
- Black
- Number of computers controlled
- 1
- HD type
- Full HD
- Rack capacity
- 1U
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CL3800NW
- Part number
- CL3800NW-UK
- EAN / UPC
- 5704174981312
- Also known as
- ATEN CL3800NW KVM switch Rack mounting Black
Specifications
44 specifications in 9 groups

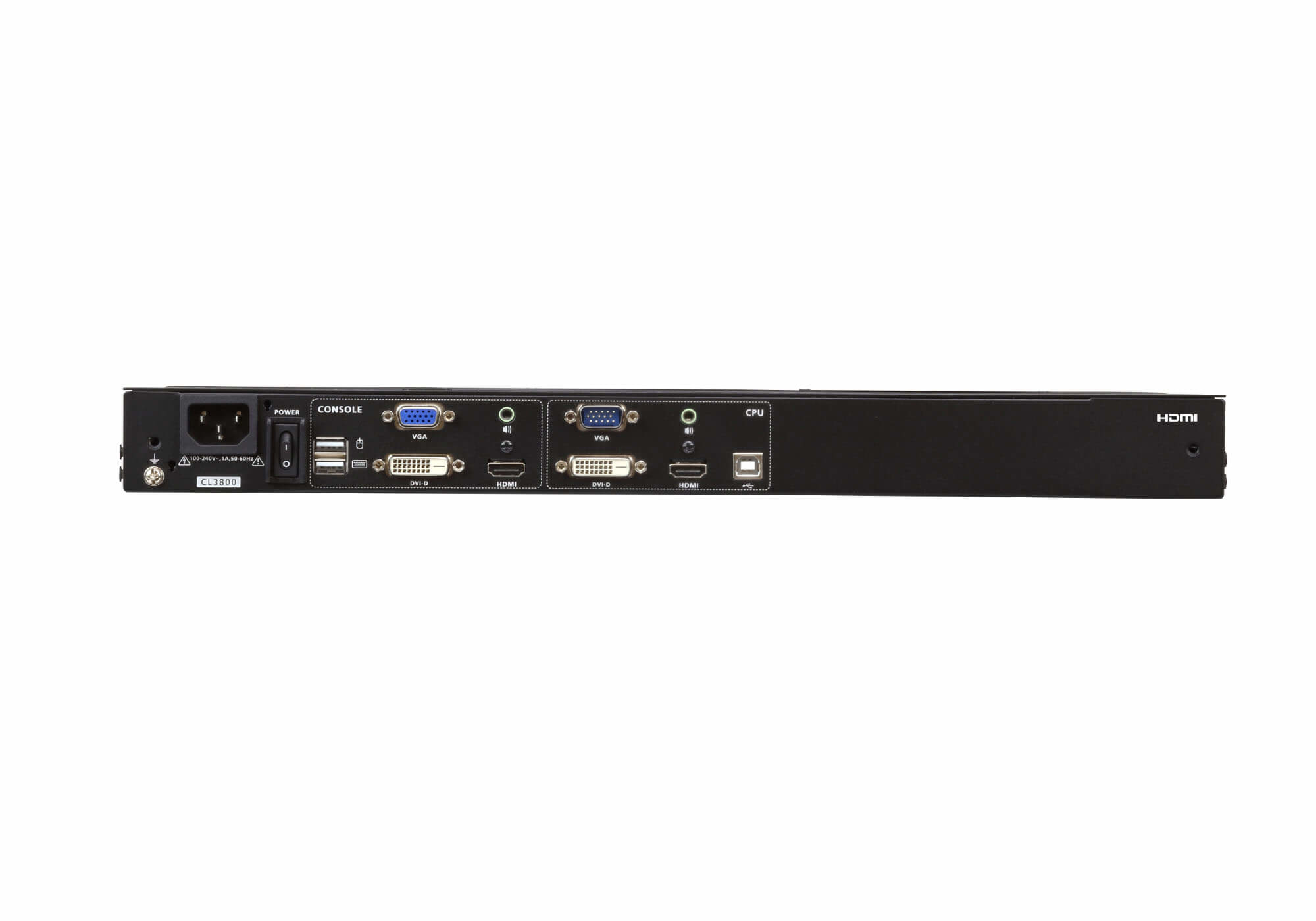

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D/HDMI/VGA |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, DVI-D, HDMI, USB A |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| AC-in ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| HD type | Full HD |
| Maximum digital resolution | 1920 x 1200 pixels |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| DDC2B support | Yes |
| Hot-Plug support | Yes |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 47 cm (18.5") |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 514.2 mm |
| Depth | 480.6 mm |
| Height | 42.8 mm |
| Weight | 9.61 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, KVM |
| Manual | Yes |
| Rack mount kit | Yes |
Other features
| Specification | Value |
|---|---|
| I/O ports | 1x USB Type A 3.5 mm |
