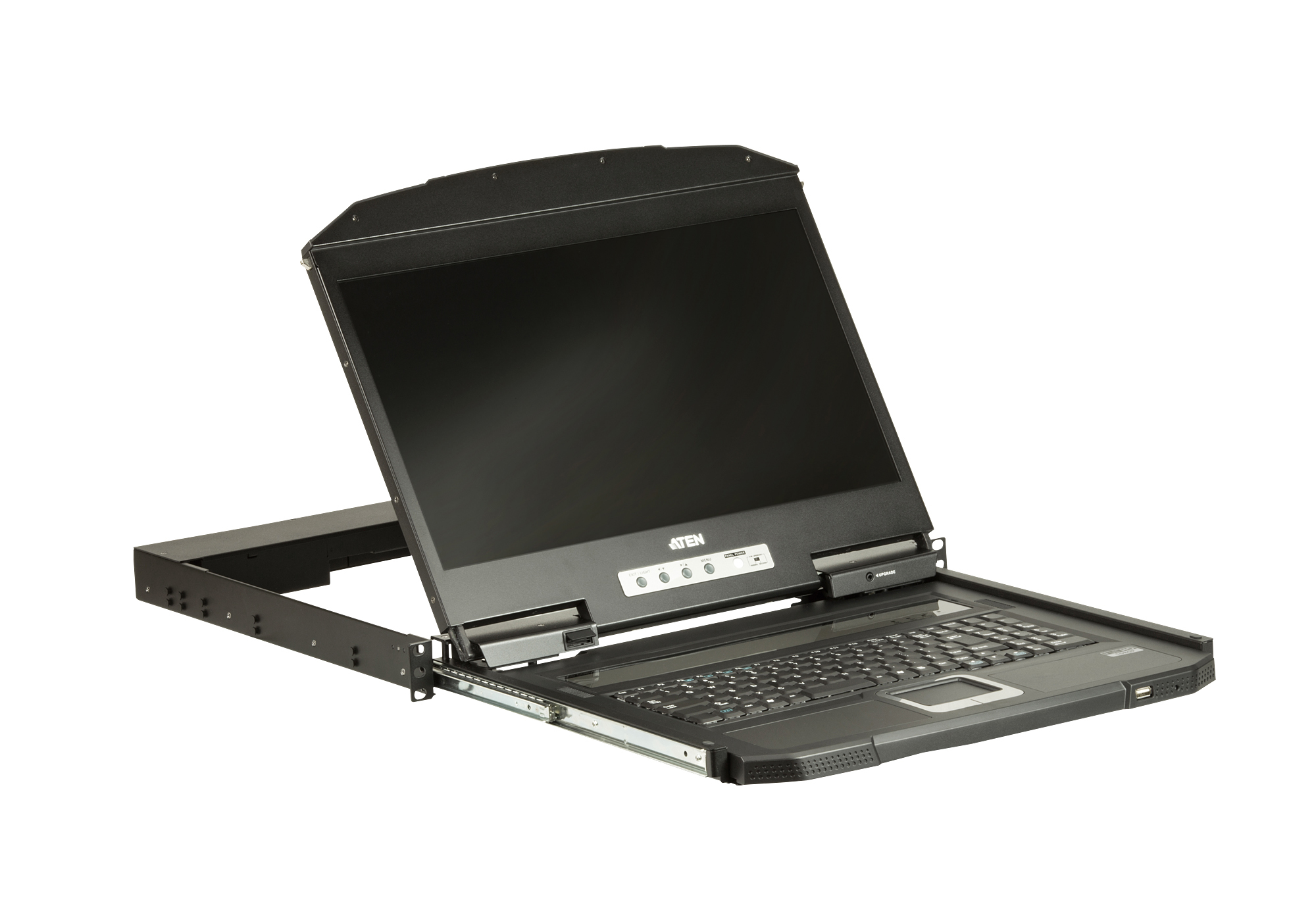

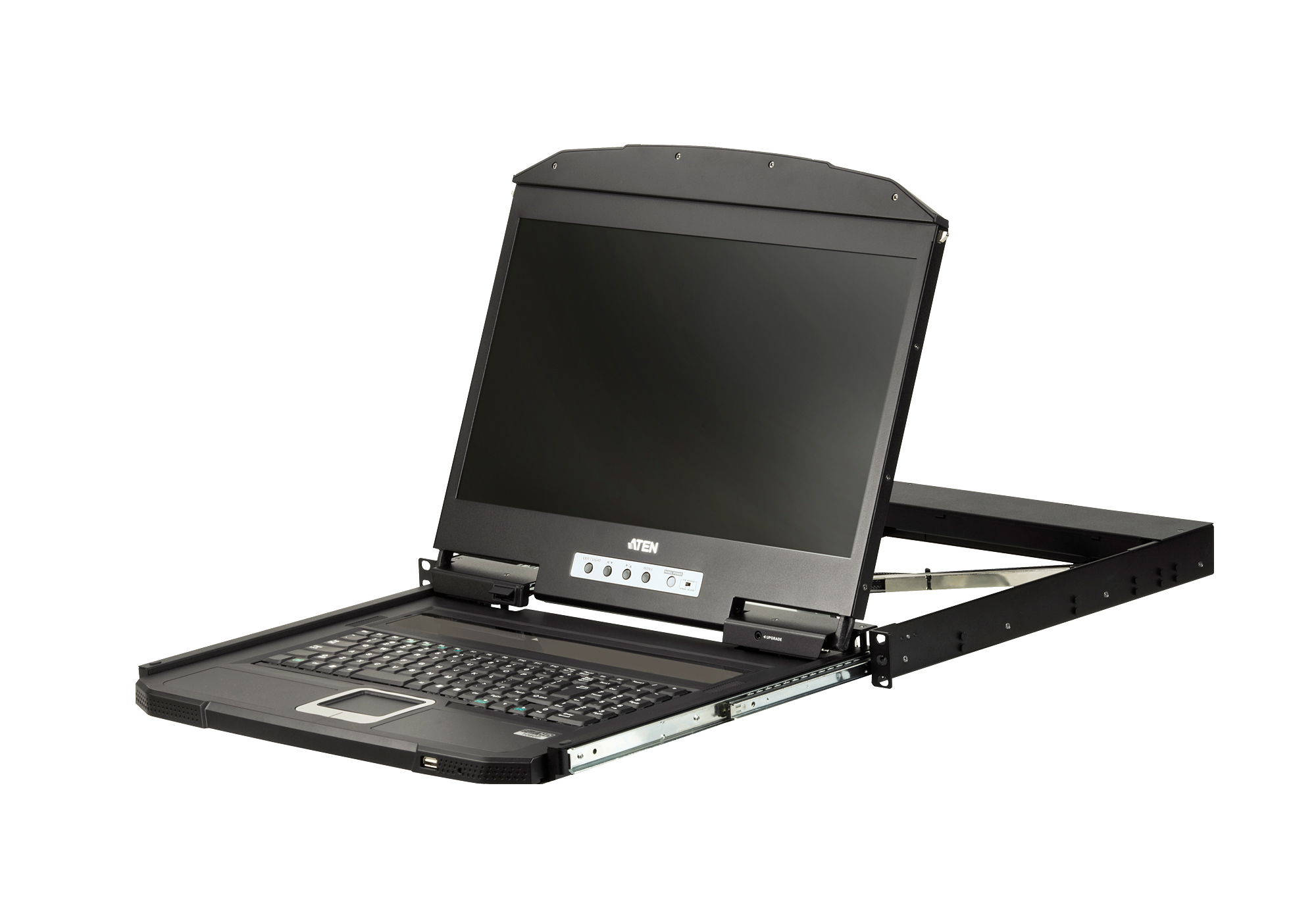

CL3700NX-ATA-EE KVM switch Rack mounting Black
Model CL3700NX-ATA-EE
39 specifications
- Display47 cm (18.5")
- Weight9.03 kg
- ColourBlack
- Number of computers controlled1
- HD typeWXGA
- Rack capacity1U
Overview
- Display
- 47 cm (18.5")
- Weight
- 9.03 kg
- Colour
- Black
- Number of computers controlled
- 1
- HD type
- WXGA
- Rack capacity
- 1U
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CL3700NX-ATA-EE
- Part number
- CL3700NX-ATA-EE
- Also known as
- ATEN CL3700NX-ATA-EE KVM switch Rack mounting Black
Specifications
39 specifications in 9 groups

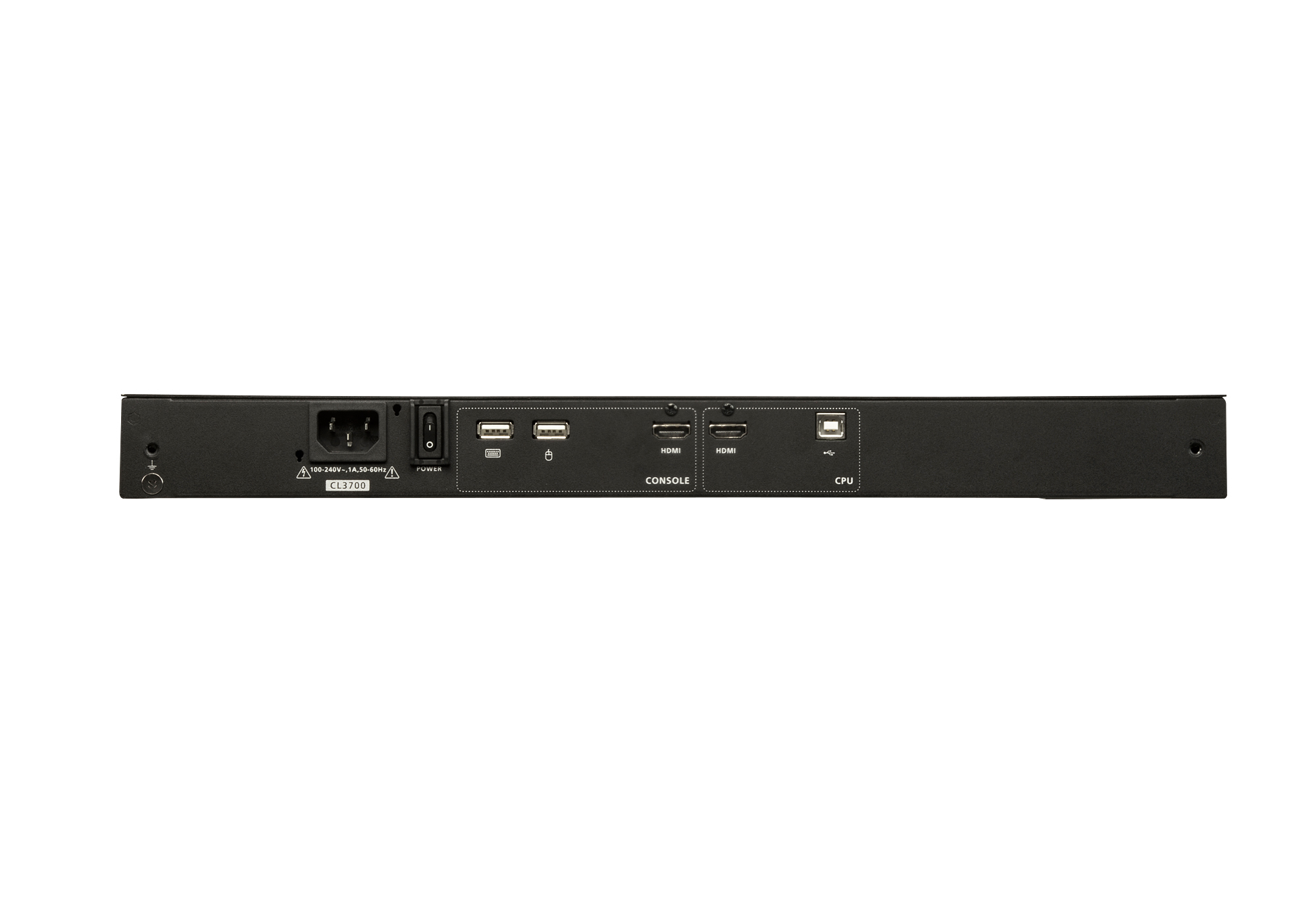

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 2 |
| Console USB ports quantity | 2 |
| Console ports | USB A |
| USB connector type | USB Type-A |
| Audio connections | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | WXGA |
| Maximum resolution | 1366 x 768 pixels |
| Video bandwidth | 60 Hz |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal, Plastic |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 47 cm (18.5") |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| Power consumption (typical) | 13.5 W |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 43 mm |
| Depth | 477 mm |
| Height | 42.8 mm |
| Weight | 9.03 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, KVM |
| AC adapter included | Yes |
| Manual | Yes |
