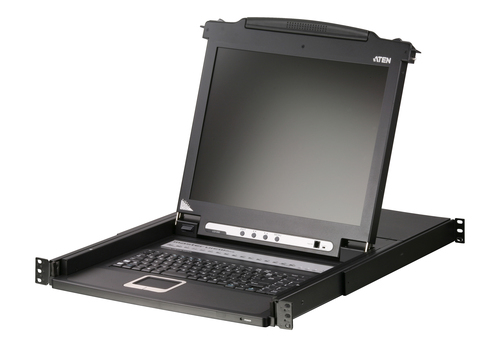

CL1016M-ATA-AU KVM switch Rack mounting Black
Model CL1016M-ATA-AU
43 specifications
- Display43.2 cm (17")
- Weight13.6 kg
- ColourBlack
- Number of computers controlled16
- HD typeSXGA
- Rack capacity1U
Overview
- Display
- 43.2 cm (17")
- Weight
- 13.6 kg
- Colour
- Black
- Number of computers controlled
- 16
- HD type
- SXGA
- Rack capacity
- 1U
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CL1016M-ATA-AU
- Part number
- CL1016M-ATA-AU
- Also known as
- ATEN CL1016M-ATA-AU KVM switch Rack mounting Black
Specifications
43 specifications in 11 groups

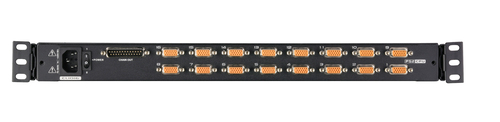

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 16 |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 16 |
| Console ports | VGA (D-Sub) |
| RJ-11 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| HD type | SXGA |
| Maximum resolution | 1280 x 1024 pixels |
| Video bandwidth | 75 Hz |
| Scan interval | 1,255 s |
| DDC2B support | Yes |
| Daisy chain | Yes |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal, Plastic |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Keyboard language | Chinese Traditional, French, German, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swiss, UK English, US English |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 43.2 cm (17") |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 640.2 mm |
| Depth | 44 mm |
| Height | 480 mm |
| Weight | 13.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, KVM |
| Manual | Yes |
| Rack mount kit | Yes |
Other features
| Specification | Value |
|---|---|
| I/O ports | 1x DB-25, 1x IEC 60320/C14 |
