APC KVM1116R KVM switch Rack mounting Black
Model KVM1116REAN 731304340195
27 specifications
- Weight2.59 kg
- ColourBlack
- Number of computers controlled16
- Ethernet LANYes
- Rack capacity1U
- Built-in displayNo
Overview
- Weight
- 2.59 kg
- Colour
- Black
- Number of computers controlled
- 16
- Ethernet LAN
- Yes
- Rack capacity
- 1U
- Built-in display
- No
- Brand
- APC
- Category
- KVM Switch
- Model
- KVM1116R
- Part number
- KVM1116R
- EAN / UPC
- 731304340195
- Also known as
- APC KVM1116R KVM switch Rack mounting Black
Specifications
27 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 16 |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Certification | C-tick, CE, EAC, FCC Part 15 Class A, ICES-003, TAA compliance, UL-AR, UL 60950-1, VCCI Class A, VDE |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50 - 60 Hz |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 424 mm |
| Depth | 188 mm |
| Height | 43 mm |
| Weight | 2.59 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 619 mm |
| Package depth | 330 mm |
| Package height | 146 mm |
| Package weight | 3.99 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
Compare APC KVM1116R KVM switch Rack mounting Black

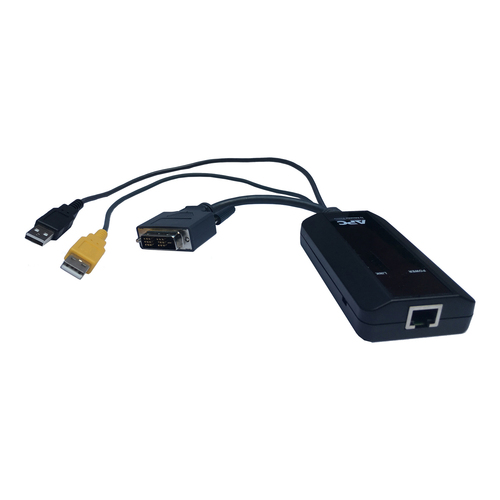

Compare any products- APC KVM1116R KVM switch Rack mounting Black vsAPC KVM 2G, SERVER MODULE, DVI WITH VIRTUAL MEDIA AND CACCompare specs
- APC KVM1116R KVM switch Rack mounting Black vsAPC KVM 2G, Analog, 1 Local User, 16 portsCompare specs

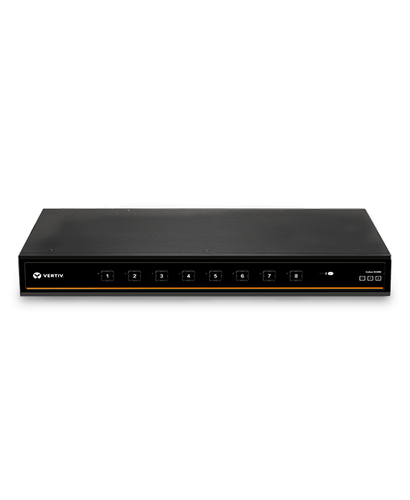

- APC KVM1116R KVM switch Rack mounting Black vsVertiv Cybex SC 985DPCompare specs

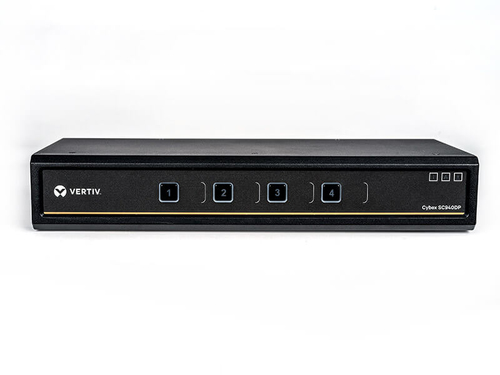

- APC KVM1116R KVM switch Rack mounting Black vsVertiv Cybex SC 940DPCompare specs

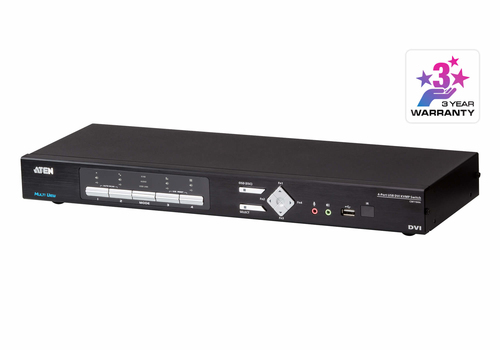

- APC KVM1116R KVM switch Rack mounting Black vsATEN CS1942DP KVM switch BlackCompare specs
