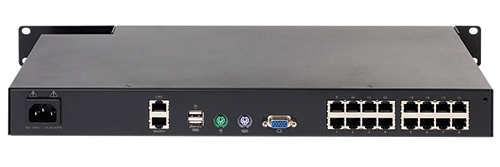

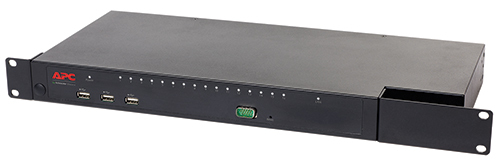

APC KVM1116P KVM switch Rack mounting Black
Model KVM1116PEAN 731304285533
36 specifications
- ConnectivityWired
- Weight2.6 kg
- ColourBlack
- Number of computers controlled16
- Ethernet LANYes
- Maximum resolution1600 x 1200 pixels
Overview
- Connectivity
- Wired
- Weight
- 2.6 kg
- Colour
- Black
- Number of computers controlled
- 16
- Ethernet LAN
- Yes
- Maximum resolution
- 1600 x 1200 pixels
- Brand
- APC
- Category
- KVM Switch
- Model
- KVM1116P
- Part number
- KVM1116P
- EAN / UPC
- 731304285533, 4053162450929, 5054629369111, 7313042855334
- Also known as
- APC KVM1116P KVM switch Rack mounting Black
Specifications
36 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 16 |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 5 |
| PS/2 ports quantity | 2 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 1600 x 1200 pixels |
| Number of users | 2 user(s) |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Certification | cUL Listed,C-tick,CE,FCC Part 15 Class A,GOST,ICES-003,UL-AR,UL 60950-1,VCCI Class A,VDE REACH |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 424 mm |
| Depth | 188 mm |
| Height | 43 mm |
| Weight | 2.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 619 mm |
| Package depth | 330 mm |
| Package height | 146 mm |
| Package weight | 4 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ports quantity | 16 |
| RJ-12 ports quantity | 1 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
