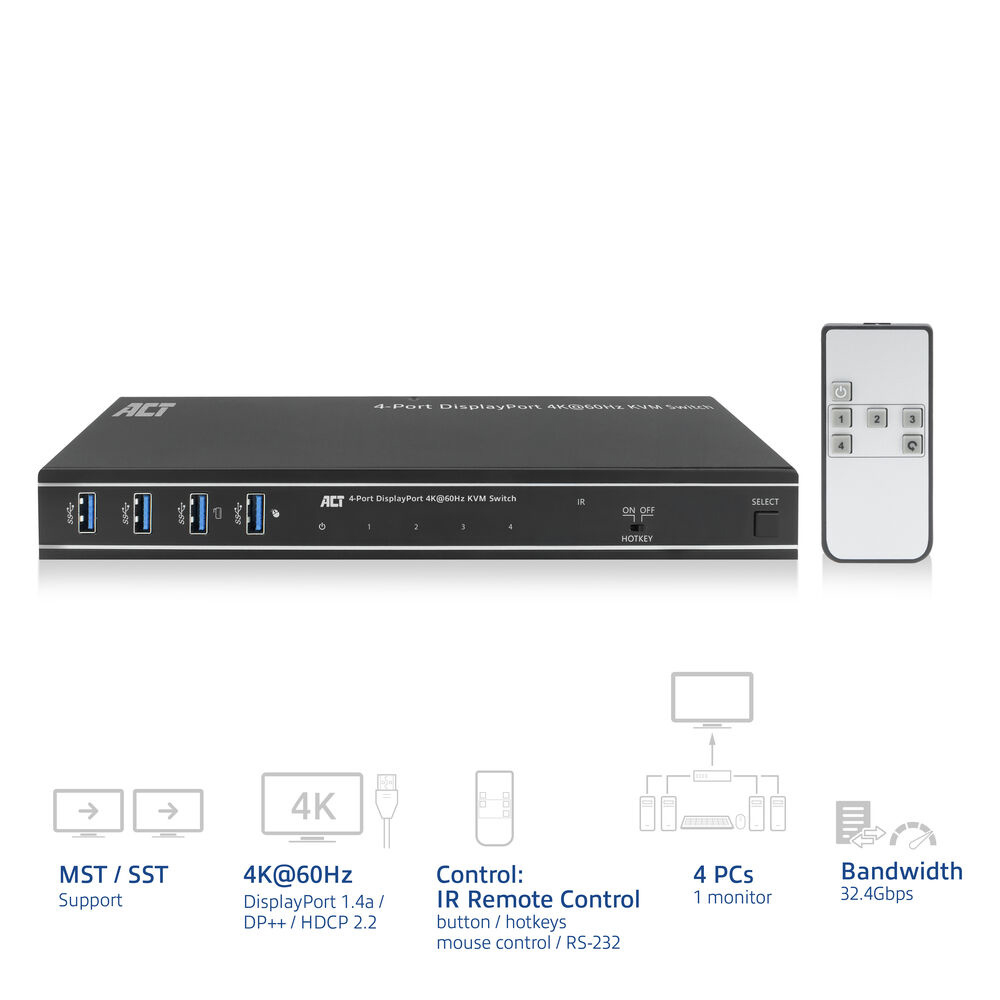

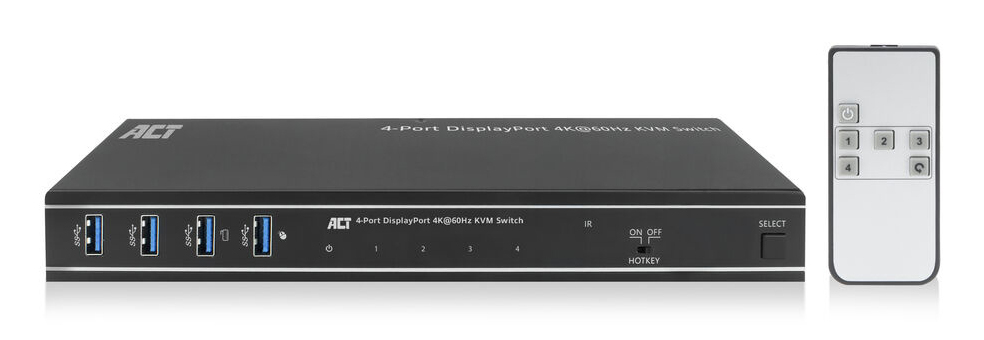

4-Port DisplayPort 4K@60Hz KVM switch
Model AC7934EAN 8716065589825
30 specifications
- ColourBlack
- Number of computers controlled4
- HD type4K Ultra HD
- Rack mountingNo
- Power sourceDC
Overview
- Colour
- Black
- Number of computers controlled
- 4
- HD type
- 4K Ultra HD
- Rack mounting
- No
- Power source
- DC
- Brand
- ACT
- Category
- KVM Switch
- Model
- AC7934
- Part number
- AC7934
- EAN / UPC
- 8716065589825
- Also known as
- ACT 4-Port DisplayPort 4K@60Hz KVM switch
Specifications
30 specifications in 6 groups

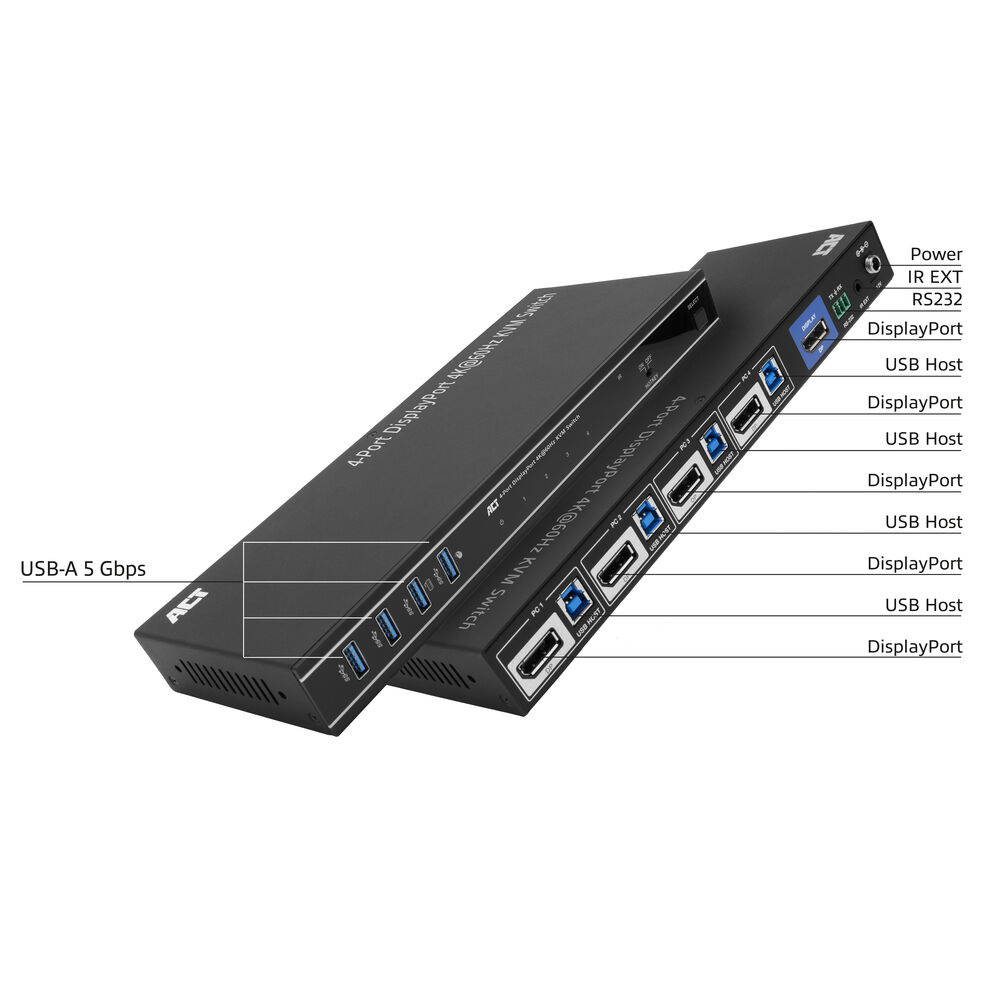

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 5 |
| DisplayPort version | 1.4a |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Console ports | DisplayPort, USB A |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Data transfer rate (max) | 32.4 Gbit/s |
| HDCP | Yes |
| Daisy chain | Yes |
| Maximum refresh rate | 129 Hz |
| HDCP version | 2.2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |

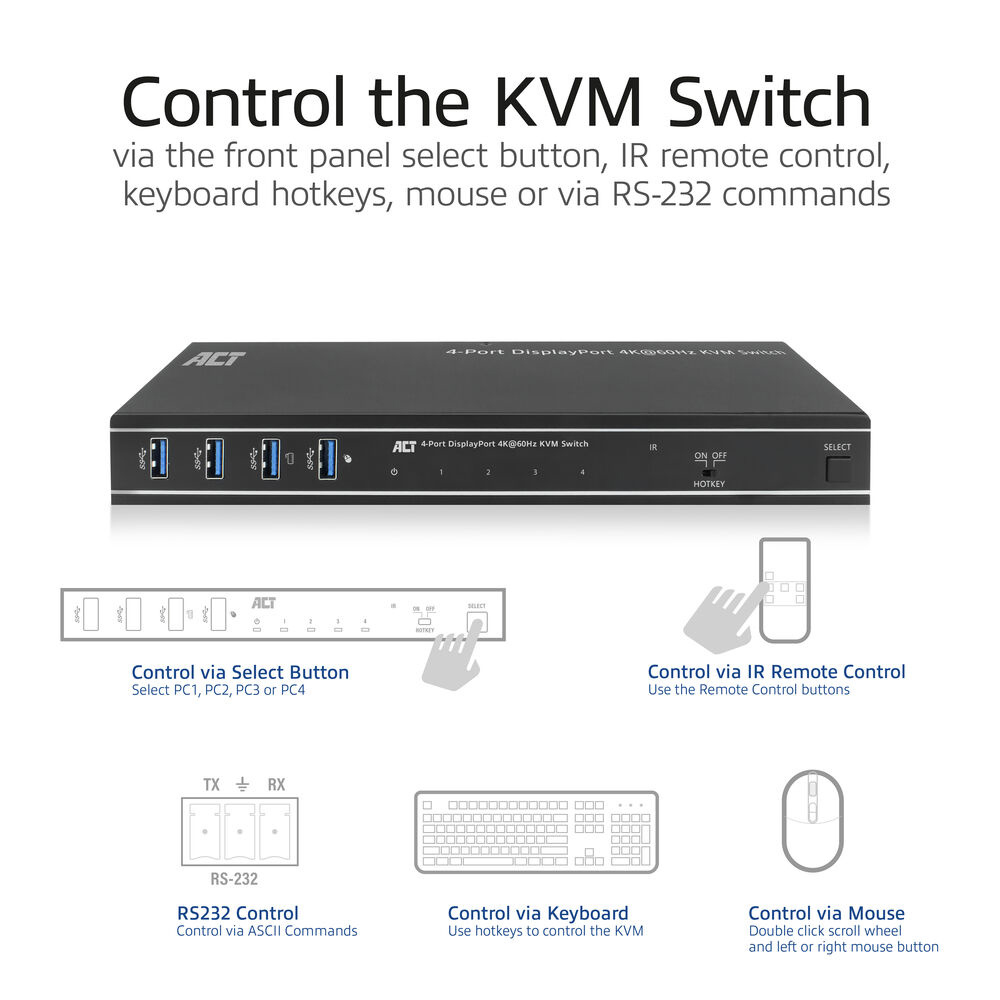

| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 12 V |
| Input current | 1 A |
| External power adapter | Yes |
| Power consumption (typical) | 12 W |

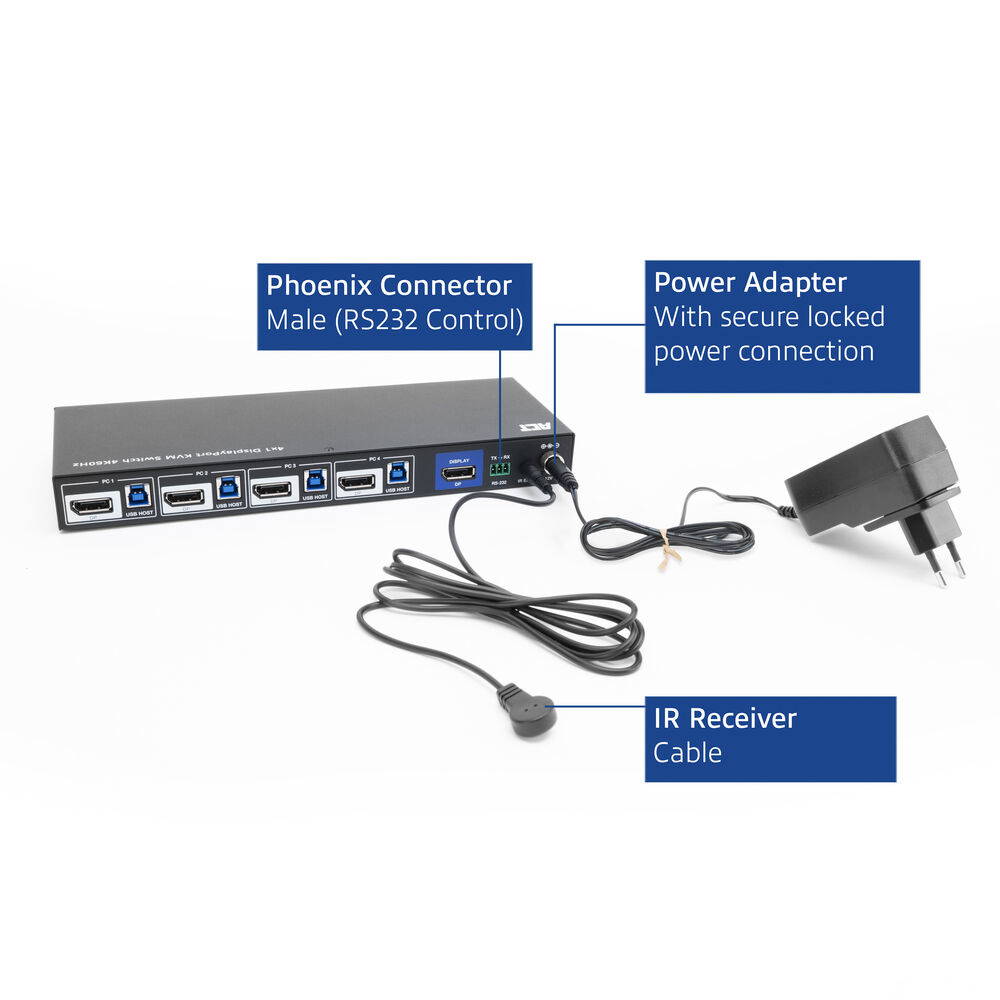

Packaging content
| Specification | Value |
|---|---|
| Cables included | IR, DisplayPort, USB Type-A to USB Type-B |
| AC adapter included | Yes |
| Remote control included | Yes |
