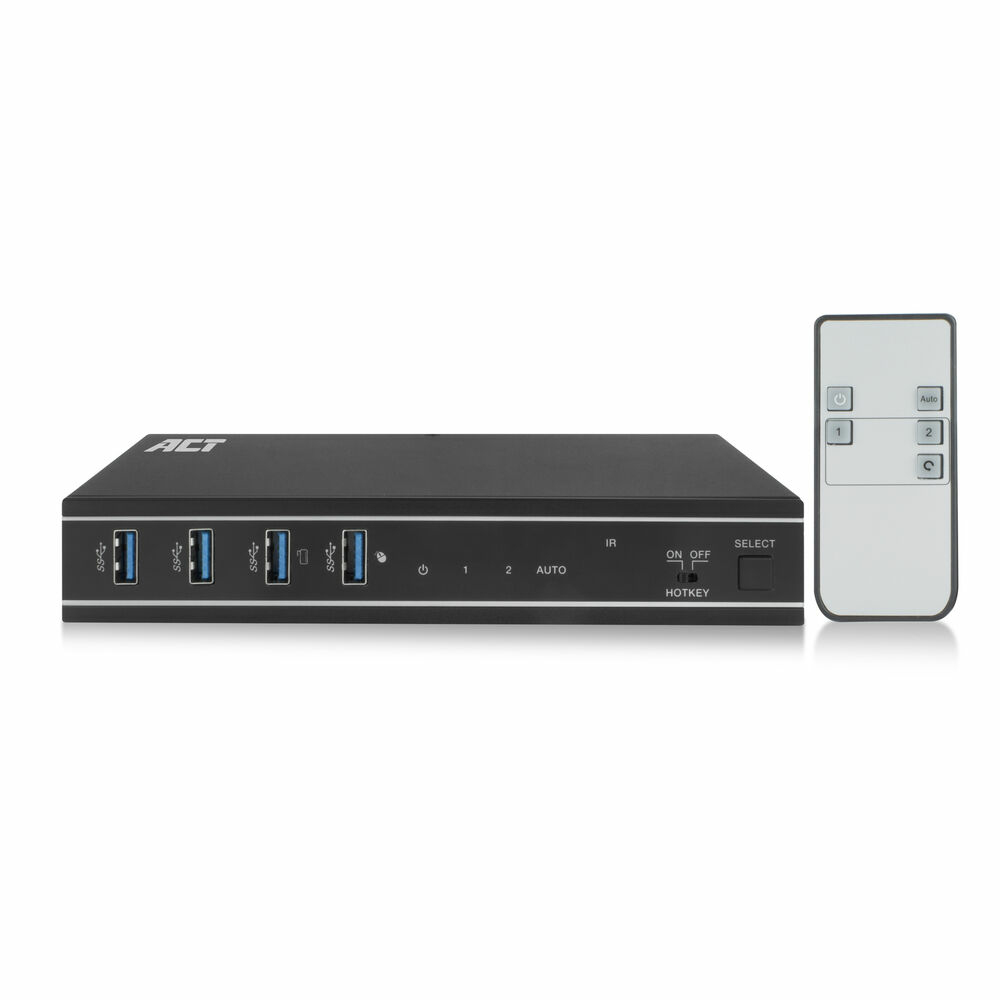

2-Port HDMI 4K@60Hz KVM switch, USB 3.2 Gen1 (USB 3.0)
Model AC7912EAN 8716065554083
35 specifications
- ColourBlack

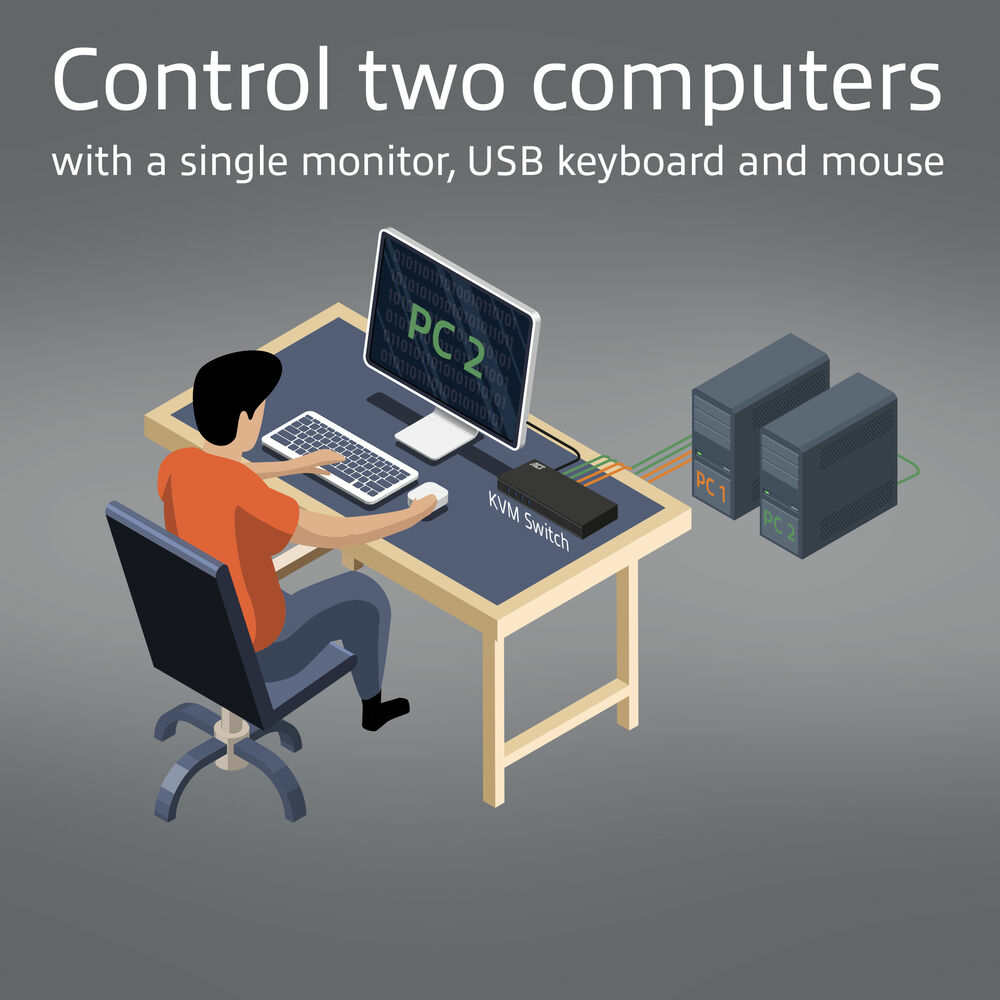

- Number of computers controlled2
- HD type4K Ultra HD
- Rack mountingNo
- Power sourceDC
Overview
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- 4K Ultra HD
- Rack mounting
- No
- Power source
- DC
- Brand
- ACT
- Category
- KVM Switch
- Model
- AC7912
- Part number
- AC7912
- EAN / UPC
- 8716065554083
- Also known as
- ACT 2-Port HDMI 4K@60Hz KVM switch, USB 3.2 Gen1 (USB 3.0)
Specifications
35 specifications in 6 groups

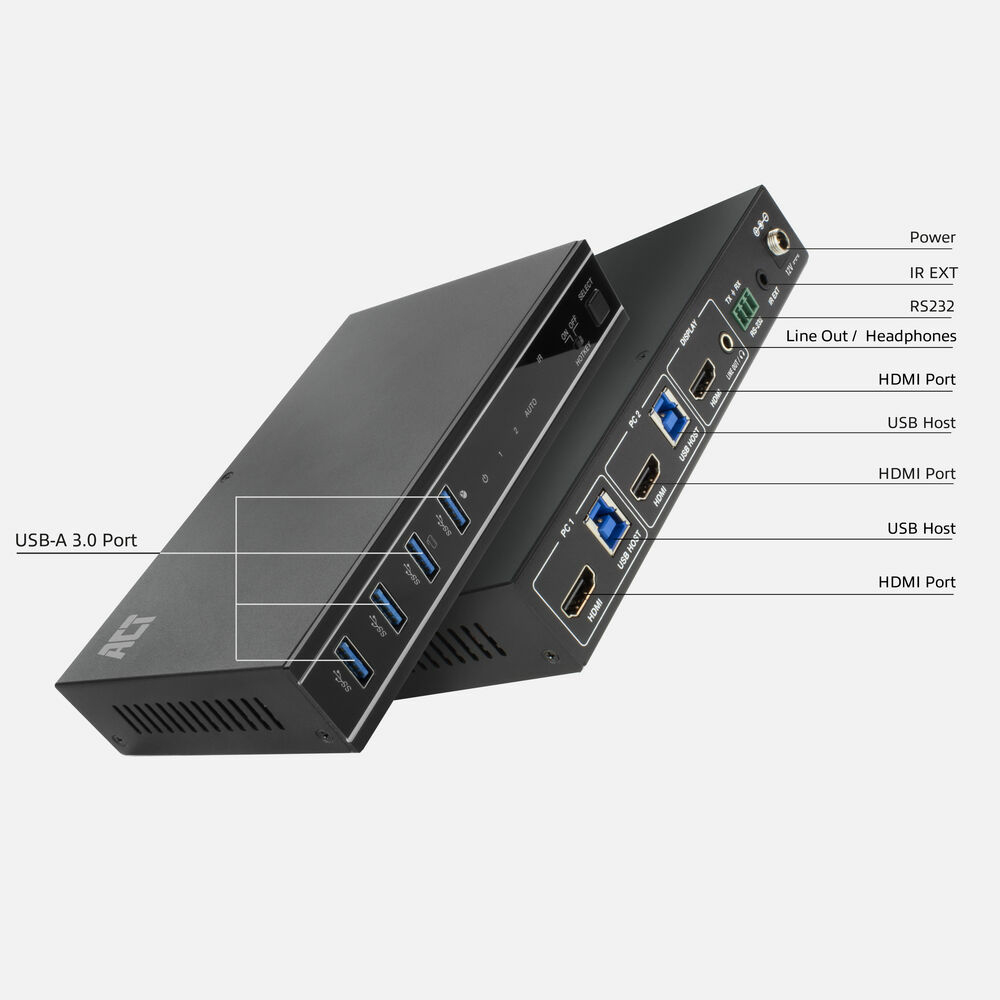

Ports & interfaces
| Specification | Value |
|---|---|

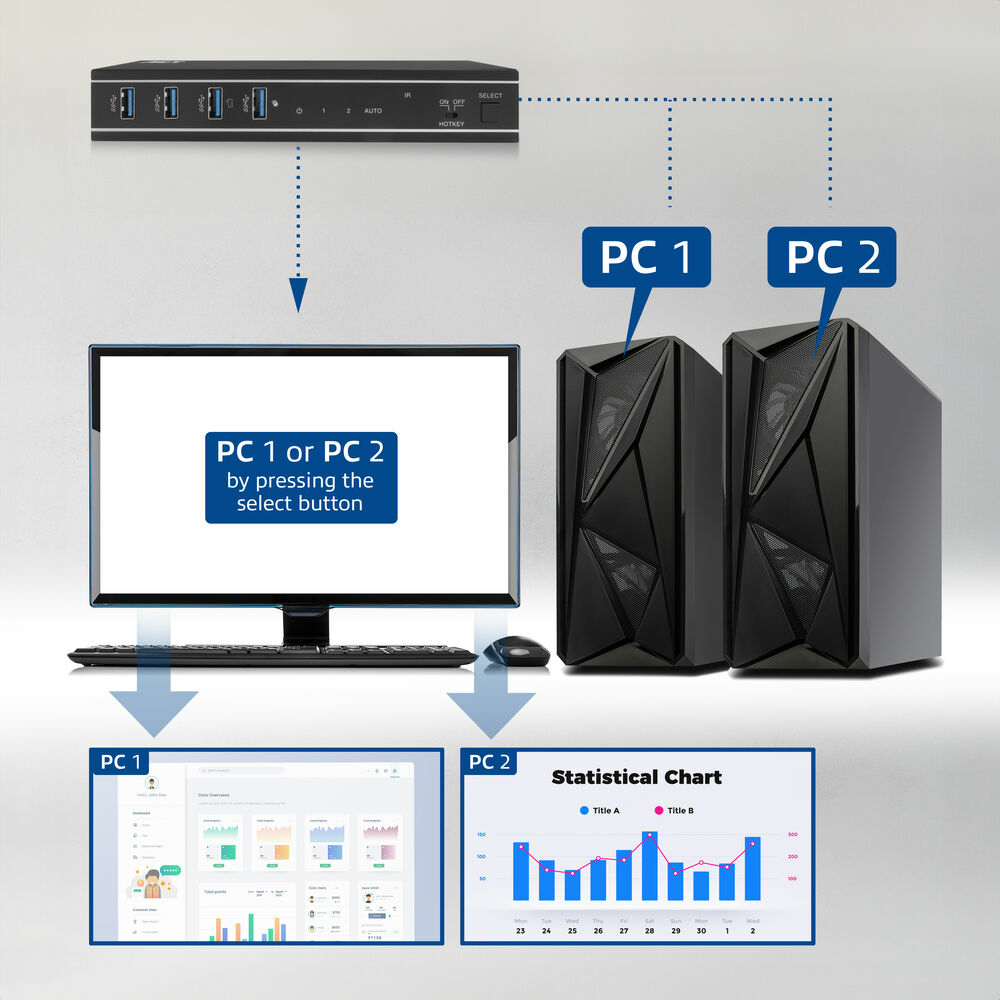

| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 4 |
| USB connector type | USB Type-A |
| Serial port type | RS-232 |
| Audio connections | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Data transfer rate (max) | 5 Gbit/s |
| HDCP | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| HDCP version | 2.3 |
| Number of displays supported | 1 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |

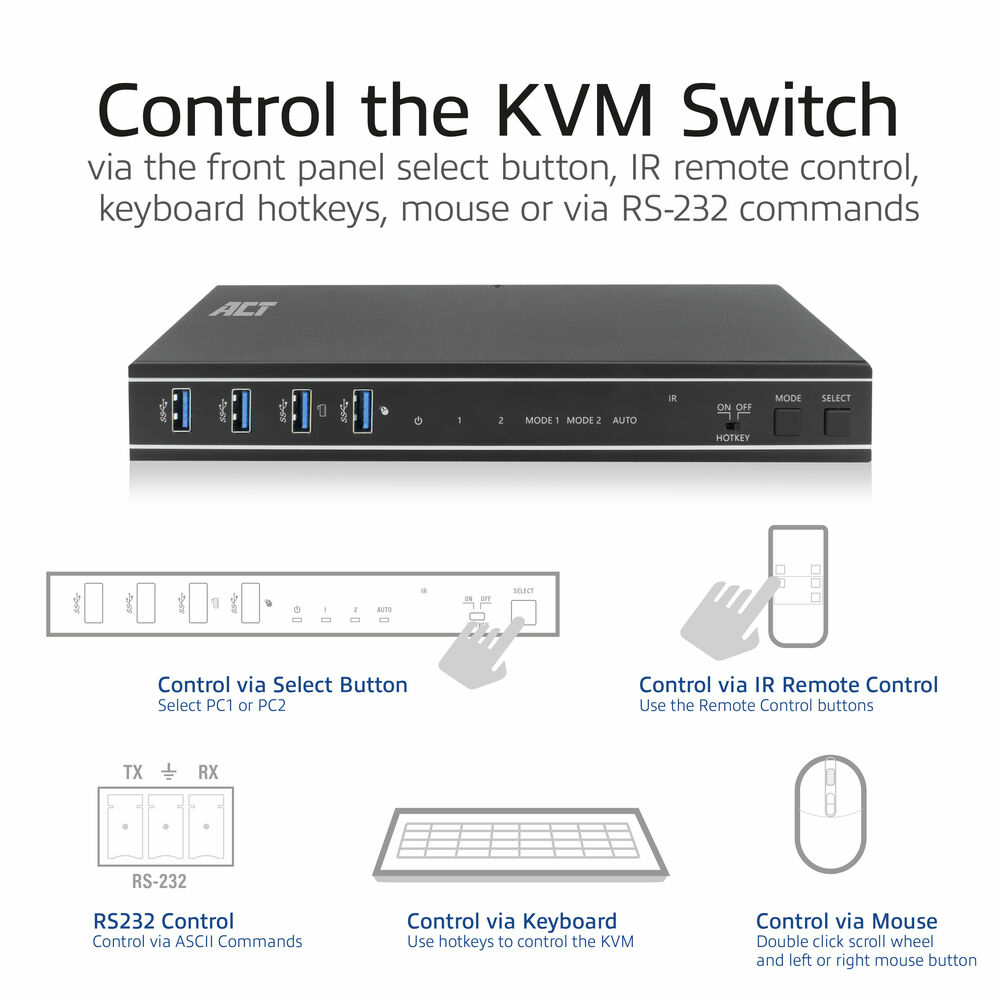

| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 12 V |
| Input current | 1 A |
Packaging content
| Specification | Value |
|---|---|

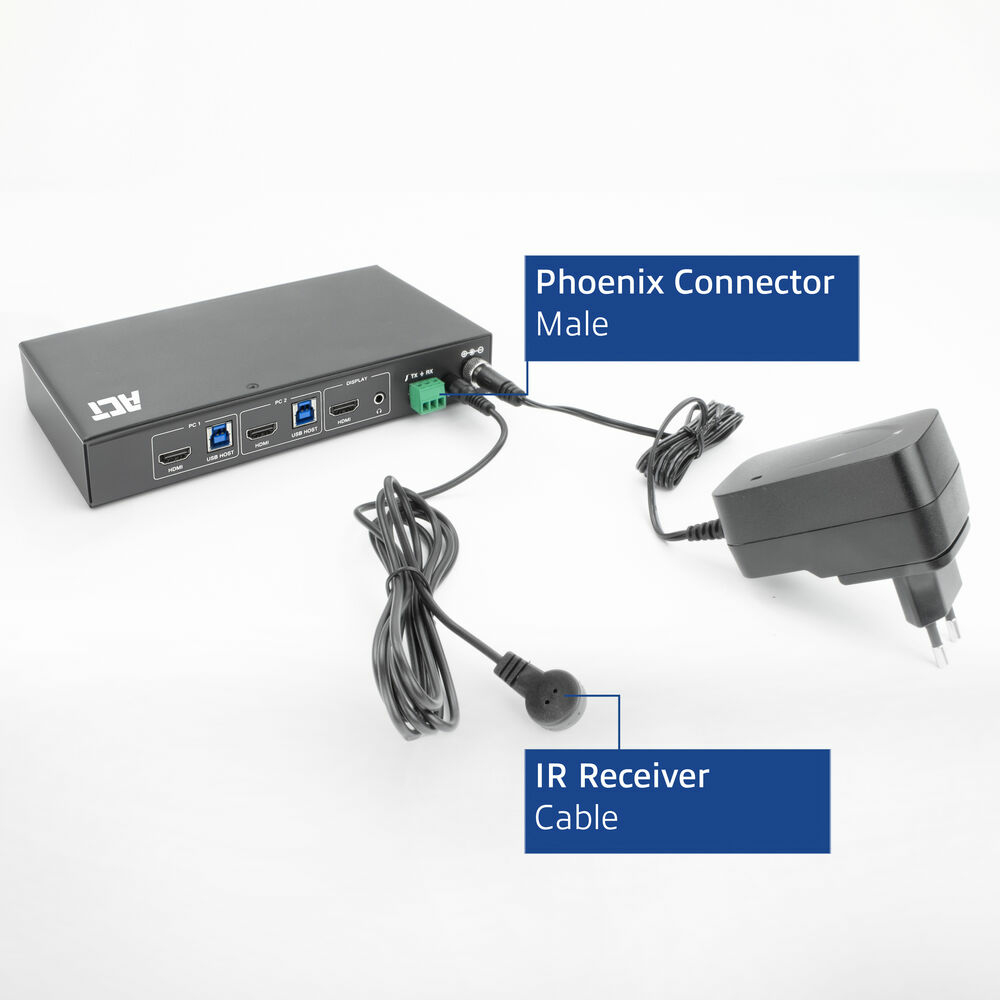

| Cables included | HDMI, IR, USB Type-A to USB Type-B |
| AC adapter included | Yes |
| Quick installation guide | Yes |

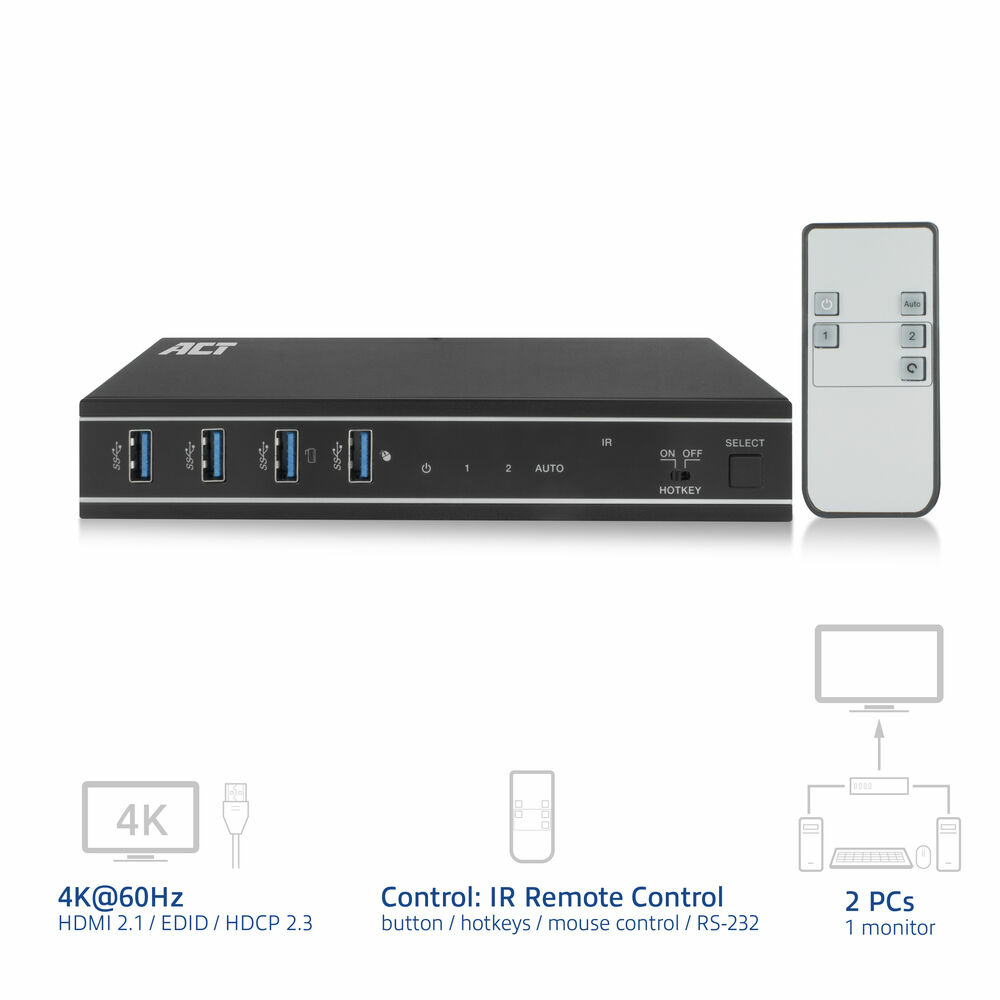

| Remote control included | Yes |
