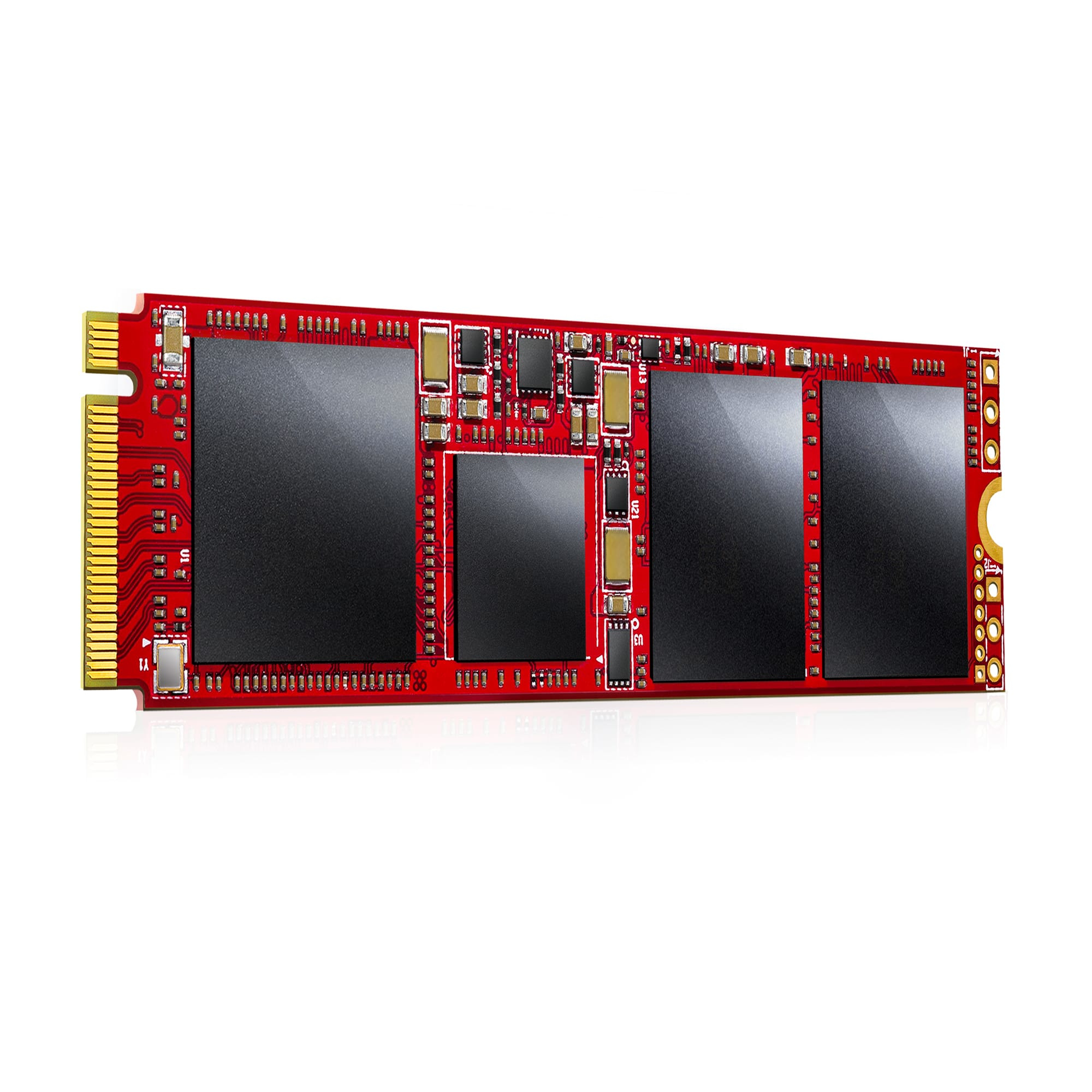

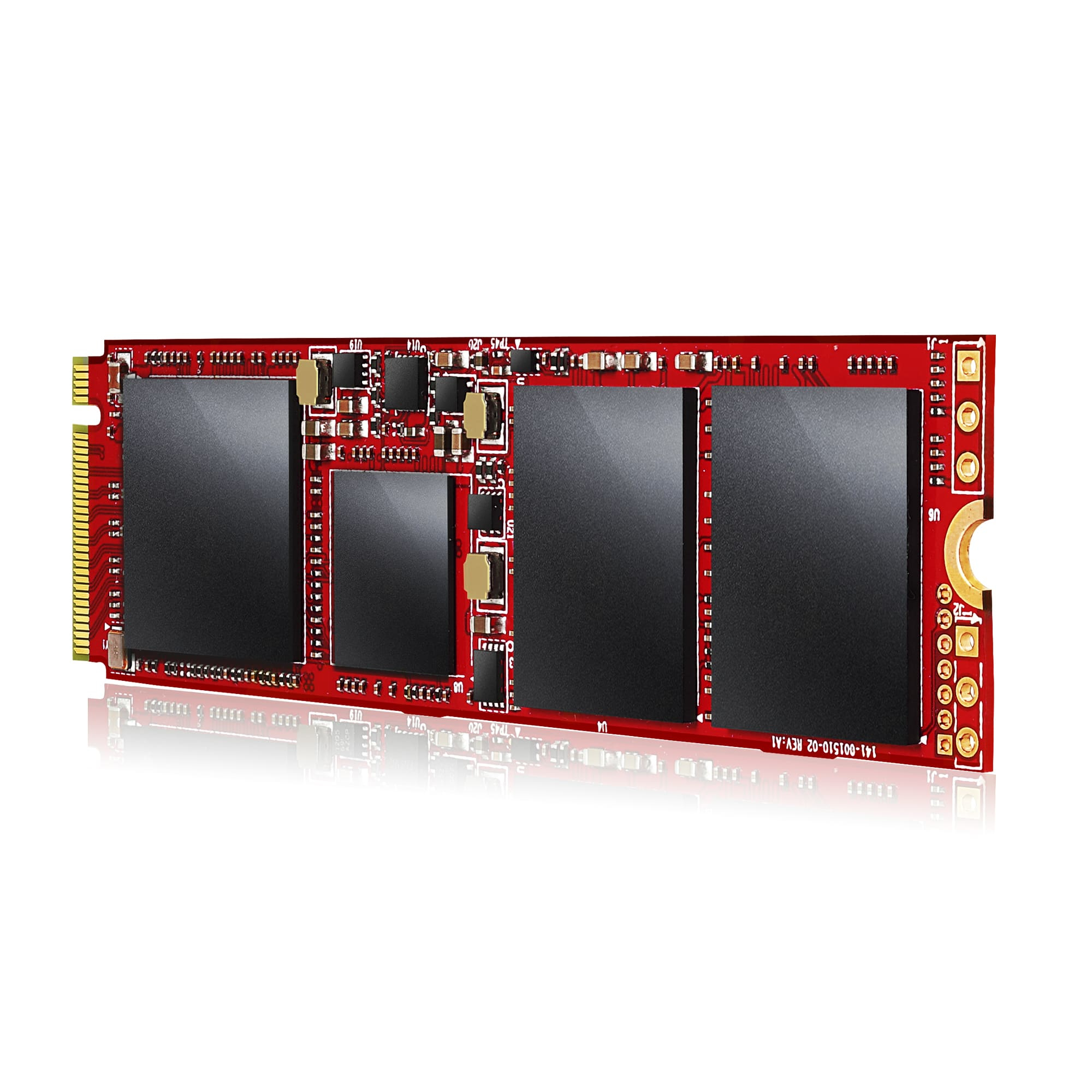

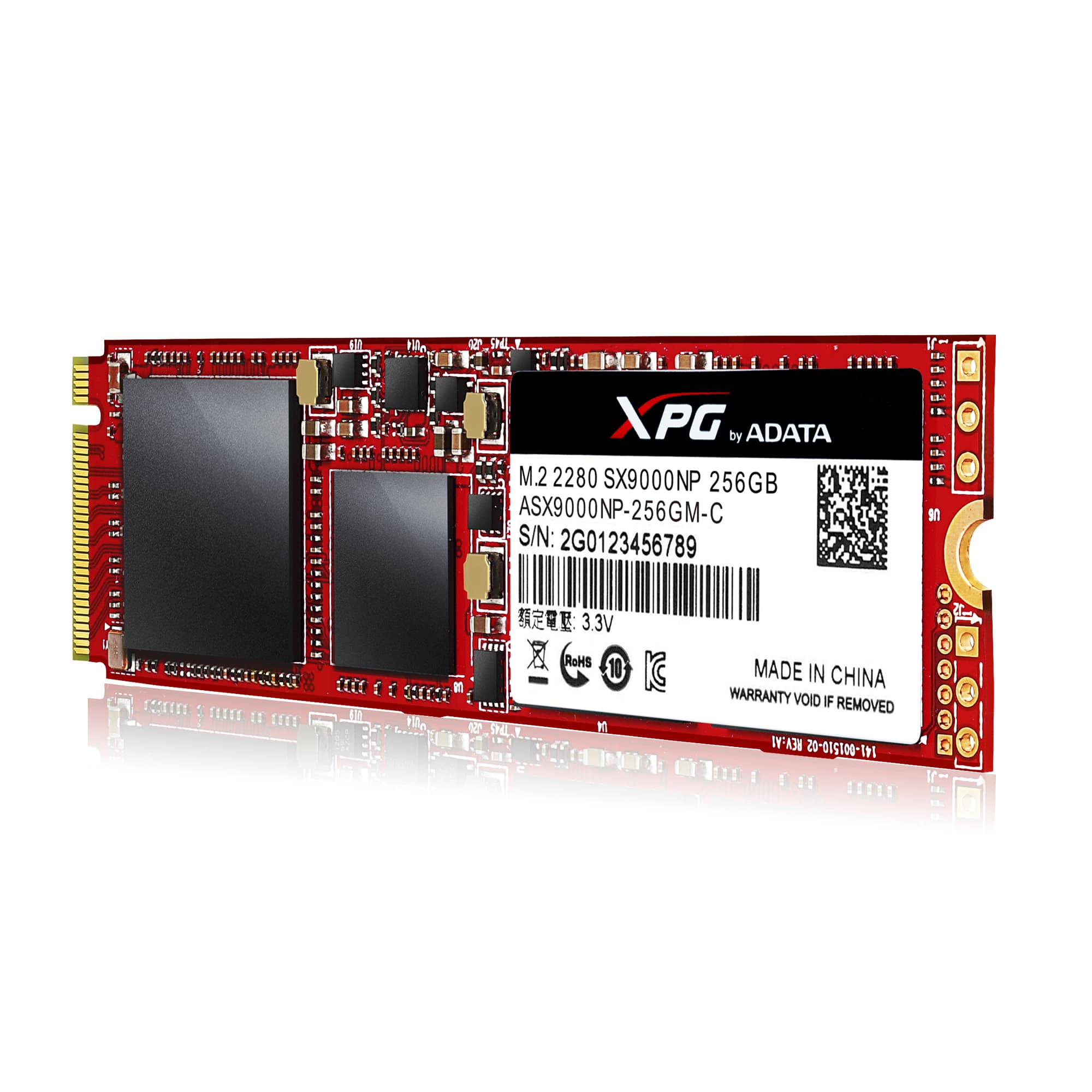

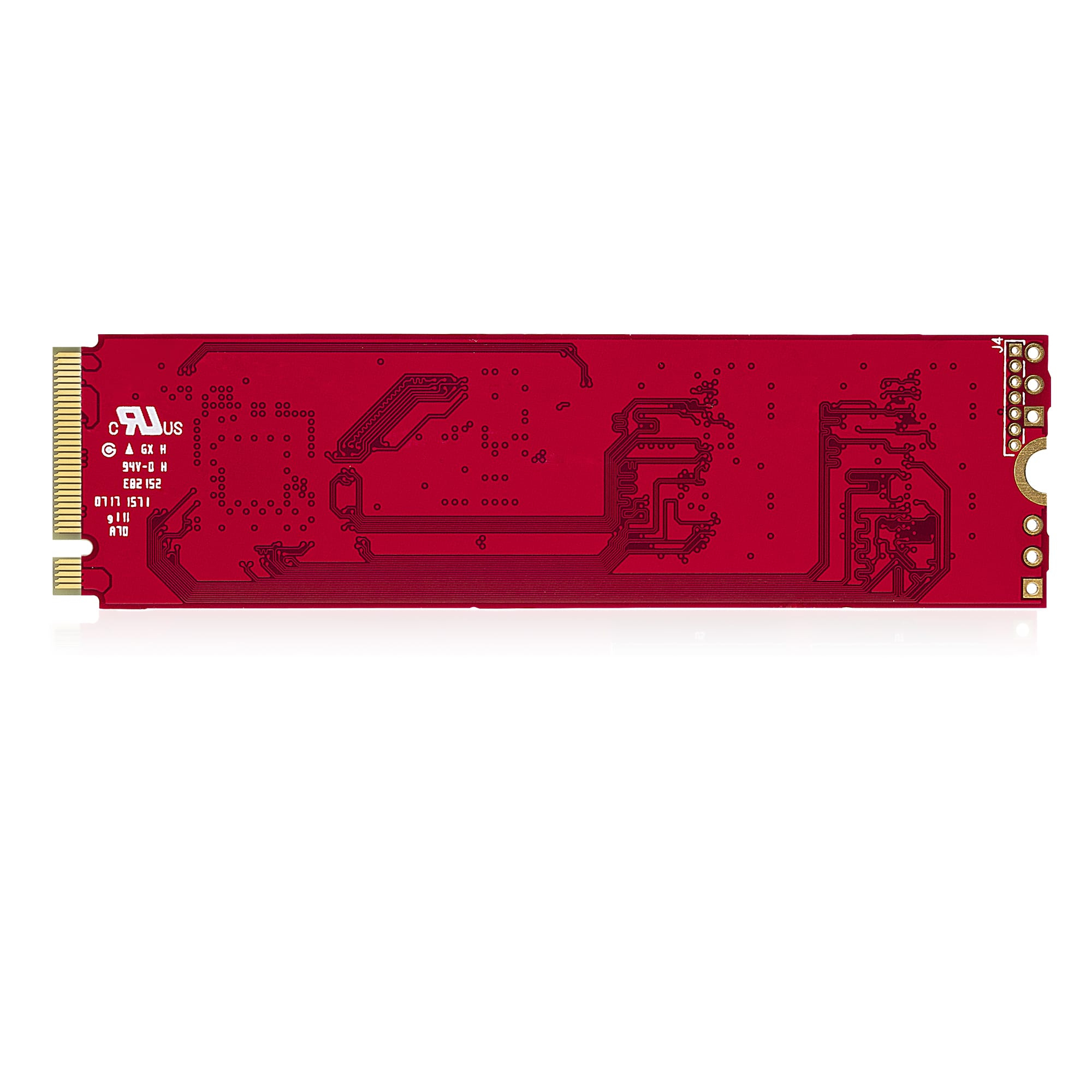

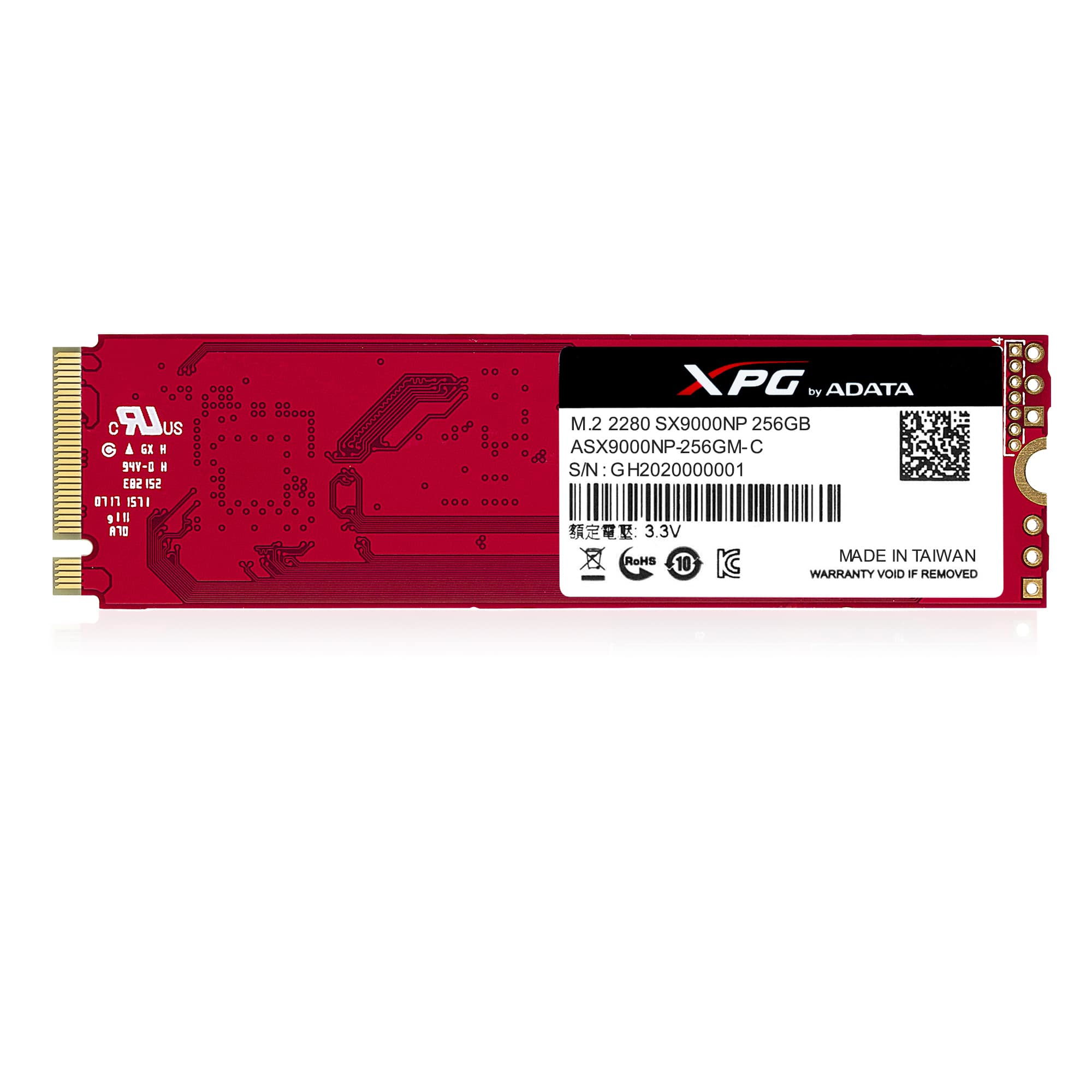

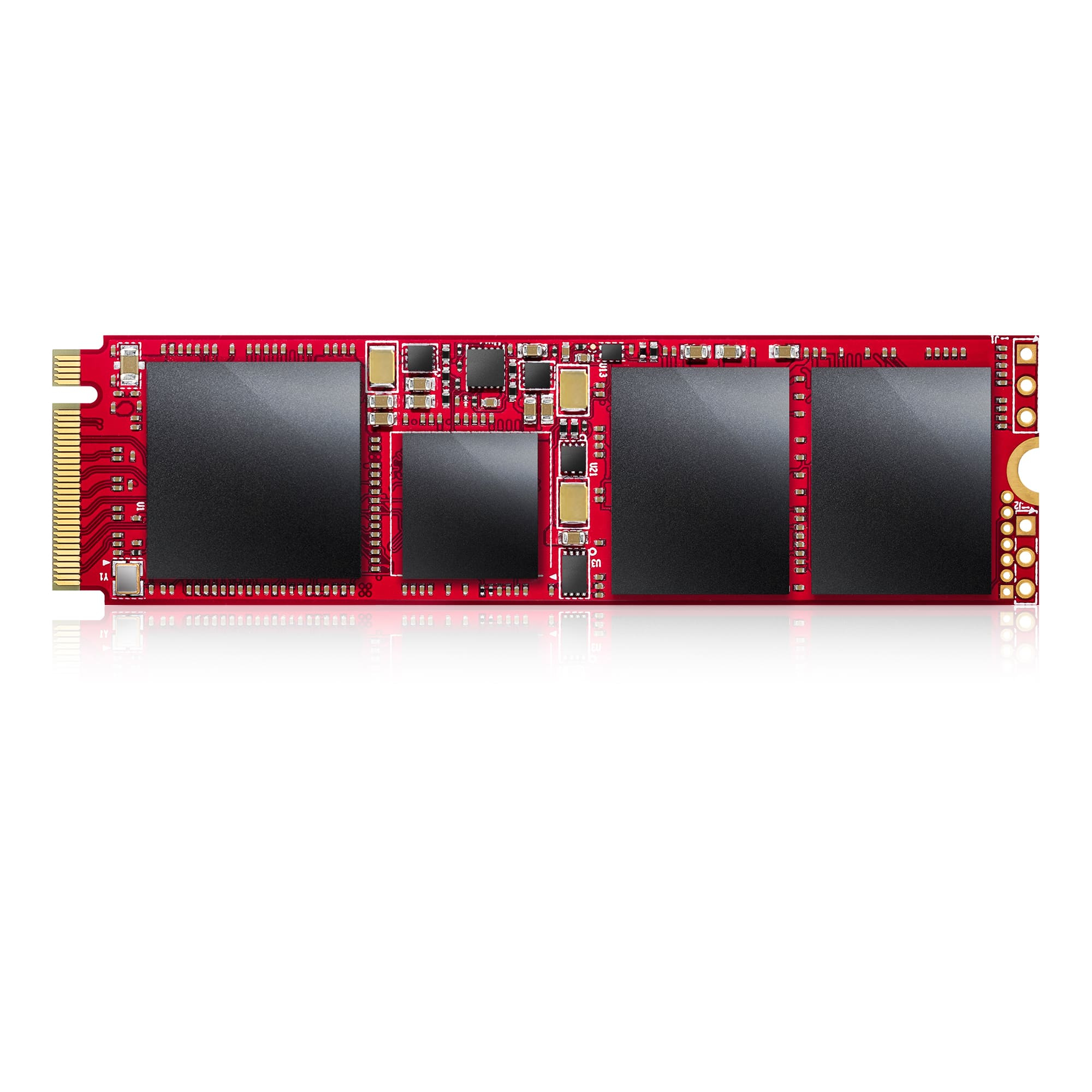

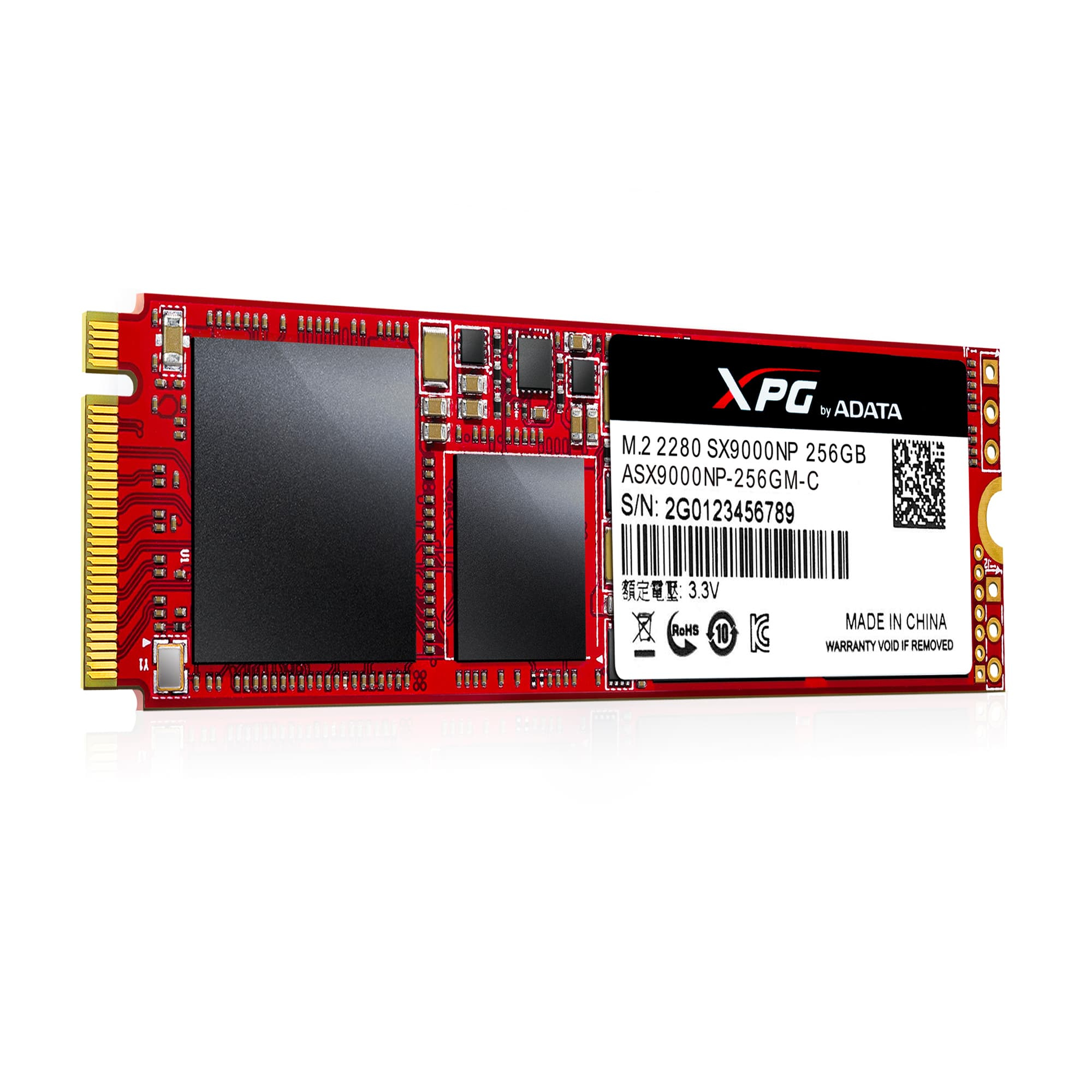

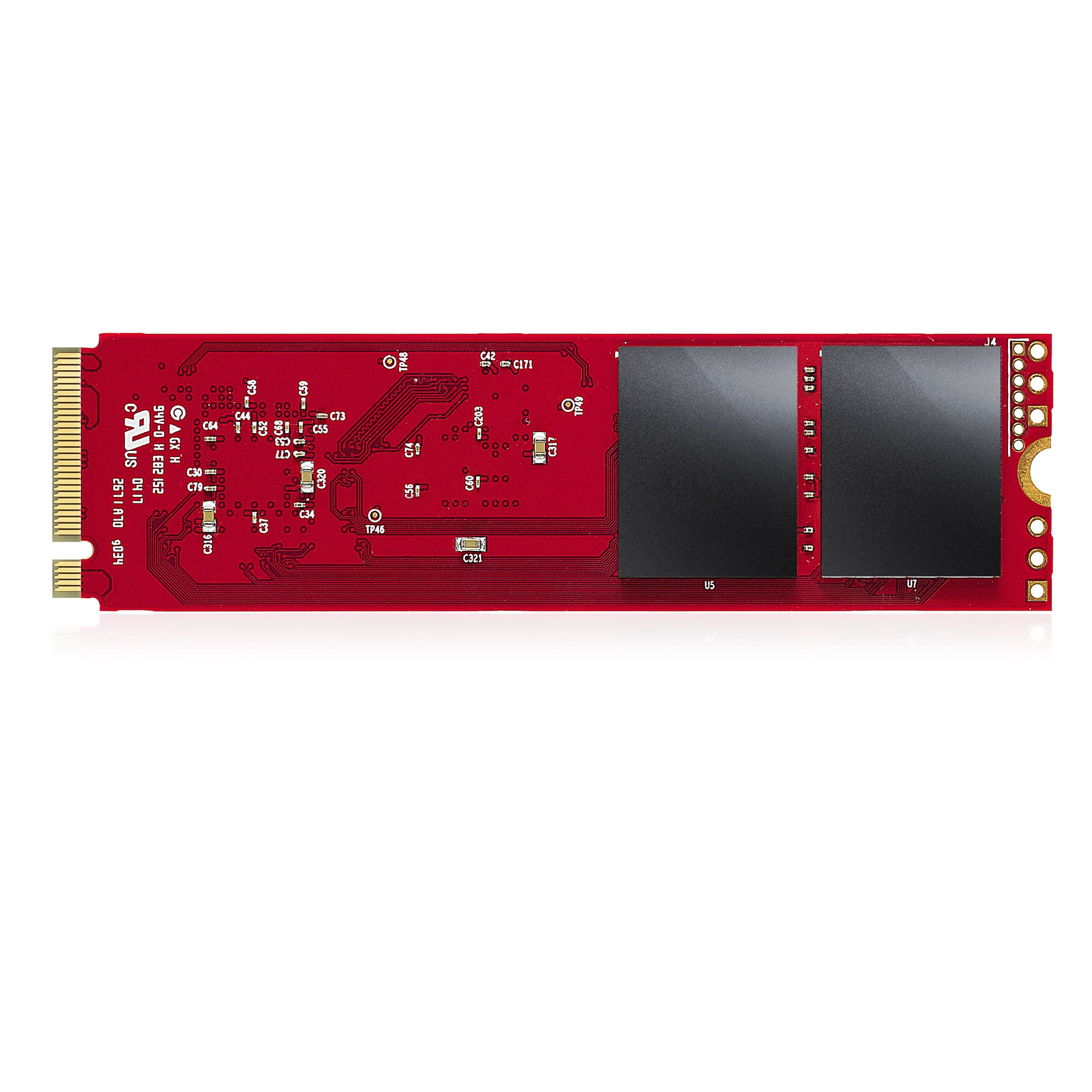

SX9000 256 GB M.2 PCI Express 3.0 NVMe MLC
Model SX9000Part no. ASX9000NP-256GM-CEAN 4713218461094
44 specifications
- Storage256 GB
- ConnectivityPCI Express 3.0
- Weight8 g
- ColourBlack, Red
- Power consumption (average)0.33 W
- Width80 mm
Overview
- Storage
- 256 GB
- Connectivity
- PCI Express 3.0
- Weight
- 8 g
- Colour
- Black, Red
- Power consumption (average)
- 0.33 W
- Width
- 80 mm
- Brand
- XPG
- Category
- Internal Solid State Drive
- Model
- SX9000
- Part numbers
- ASX9000NP-256GM-C, ASX9000NP-512GM-C, ASX9000NP-1TM-C
- EAN / UPC
- 4713218461094, 4713218461070, 4713218461087
- Also known as
- XPG SX9000 256 GB M.2 PCI Express 3.0 NVMe MLC
Specifications
44 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 256 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| NVMe version | 1.2 |
| Memory type | MLC |
| Component for | PC |
| Read speed | 2700 MB/s |
| Write speed | 900 MB/s |
| Random read (4KB) | 200000 IOPS |
| Random write (4KB) | 220000 IOPS |
| Sequential read speed (ATTO) | 2700 MB/s |
| Sequential write speed (ATTO) | 990 MB/s |
| Sequential read speed (CDM) | 2700 MB/s |
| Sequential write speed (CDM) | 1000 MB/s |
| Sequential read speed (AS SSD) | 2200 MB/s |
| Sequential write speed (AS SSD) | 720 MB/s |
| ECC | Yes |
| Low-density parity-check (LDPC) | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| TBW rating | 250 |
| Certification | CE, FCC, BSMI, VCCI, KC |
Power
| Specification | Value |
|---|---|
| Power consumption (average) | 0.33 W |
| Power consumption (sleep) | 0.14 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 22 mm |
| Height | 3.5 mm |
| Weight | 8 g |

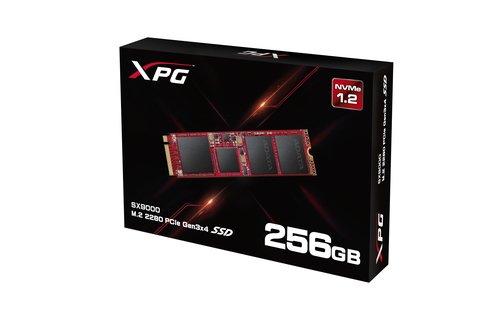

Packaging data
| Specification | Value |
|---|---|
| Package width | 100 mm |
| Package depth | 145 mm |
| Package height | 20 mm |
| Package weight | 33.3 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating shock | 1500 G |
Other features
| Specification | Value |
|---|---|
| Product colour | Black, Red |
| Cooling type | Heatsink |
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 346 mm |
| Master (outer) case length | 445 mm |
| Master (outer) case height | 280 mm |
| Master (outer) case net weight | 2 kg |
| Master (outer) case gross weight | 3.6 kg |
| Products per master (outer) case | 60 pc(s) |
