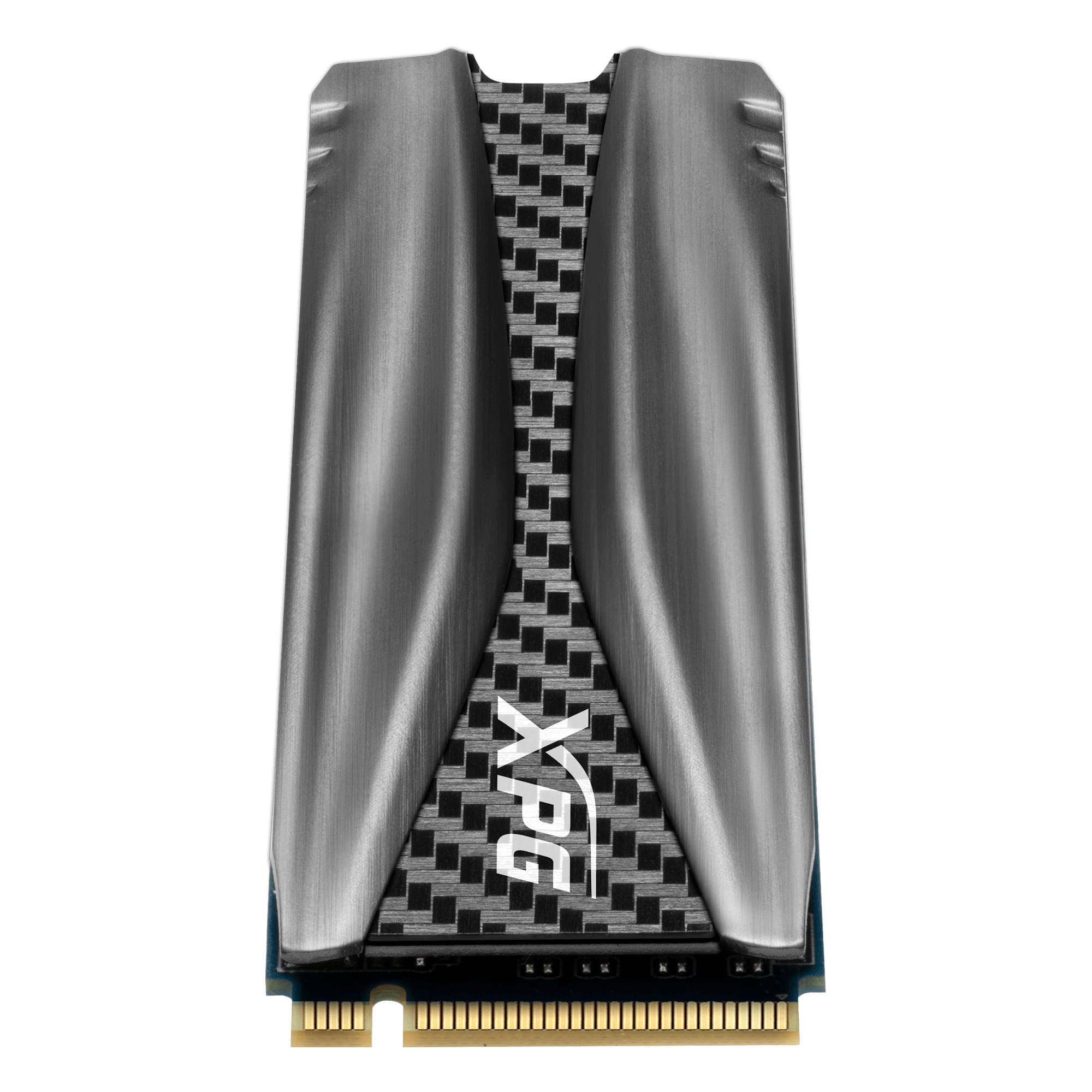

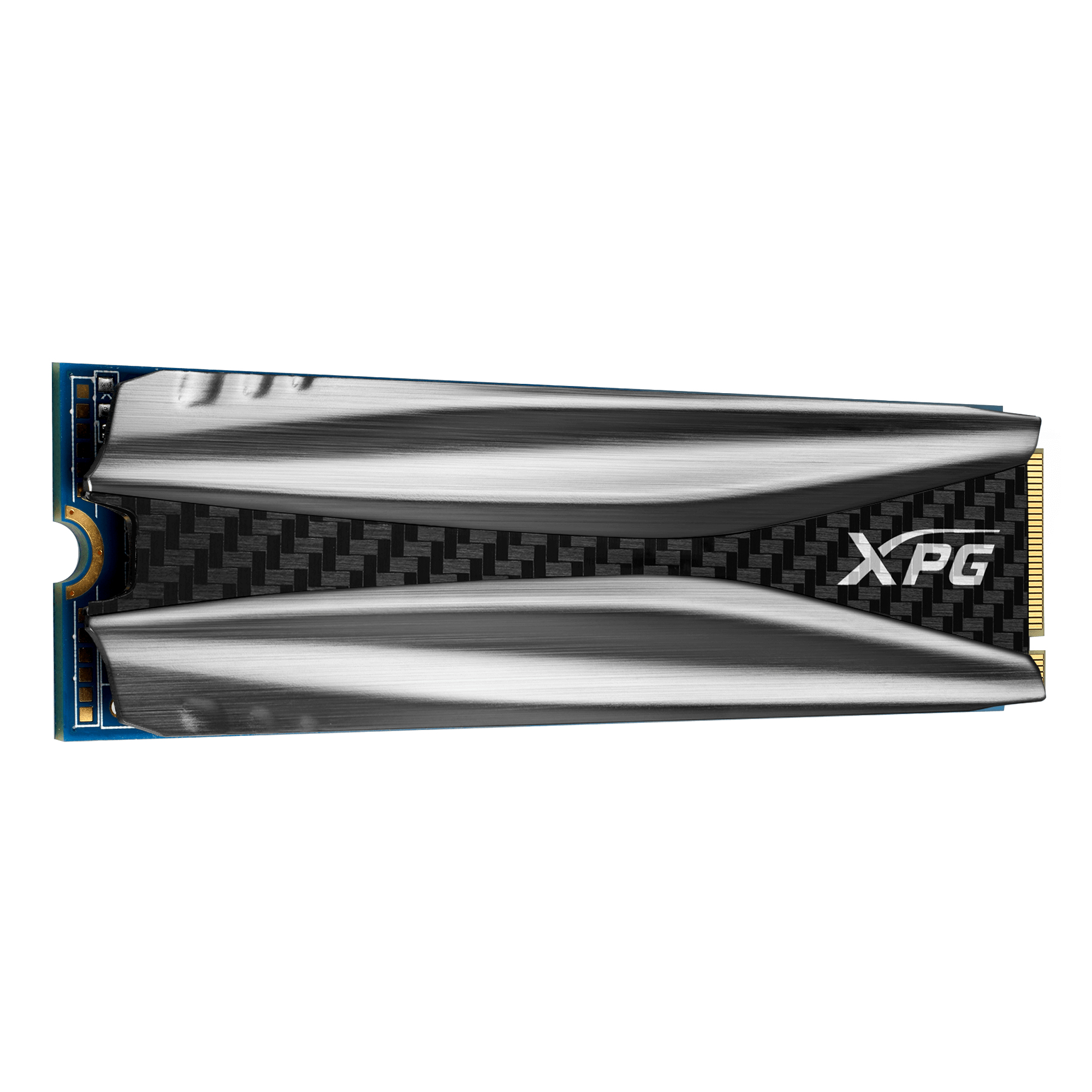

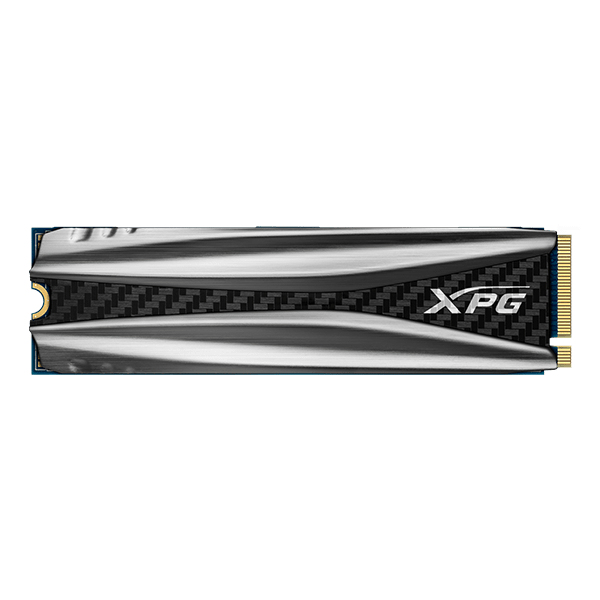

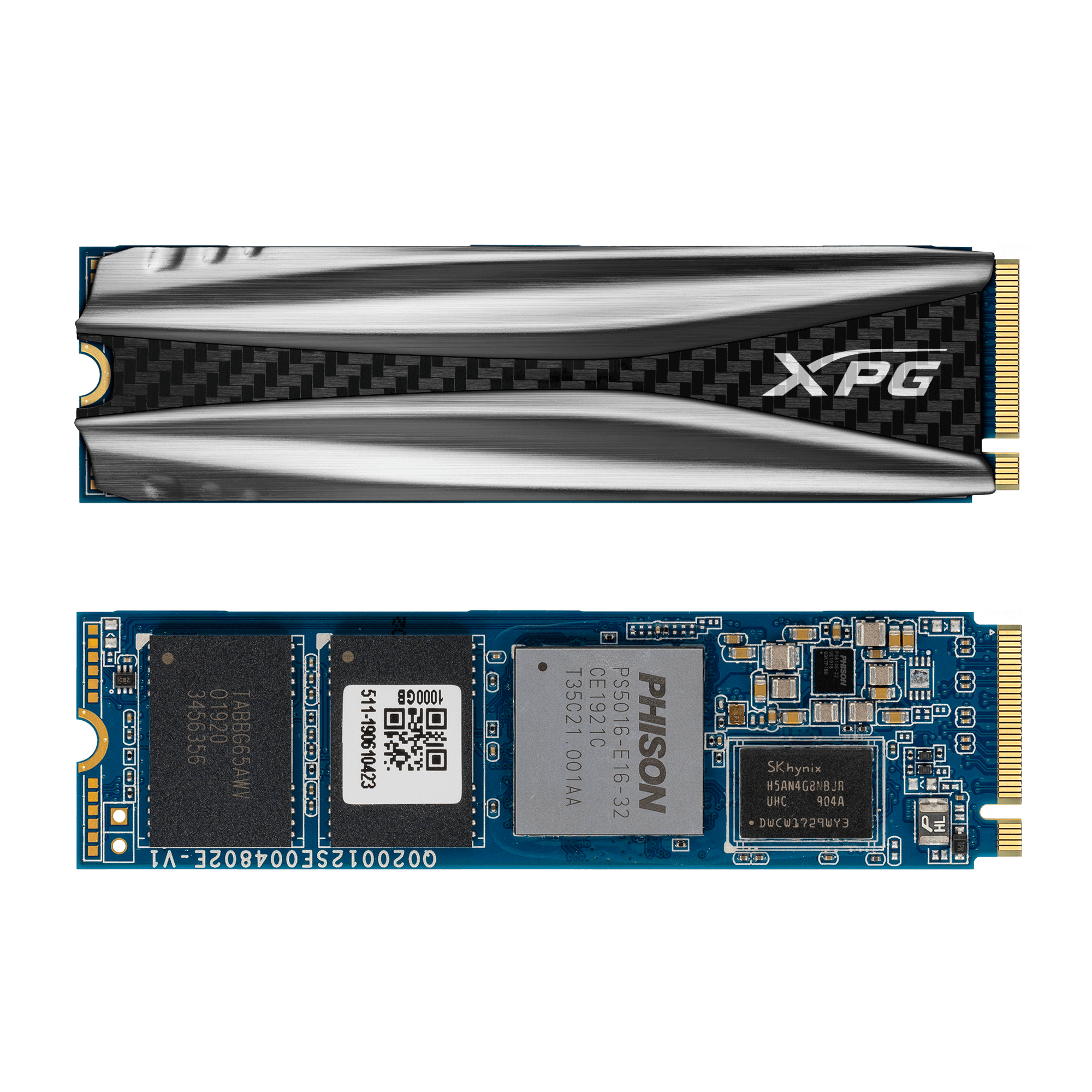

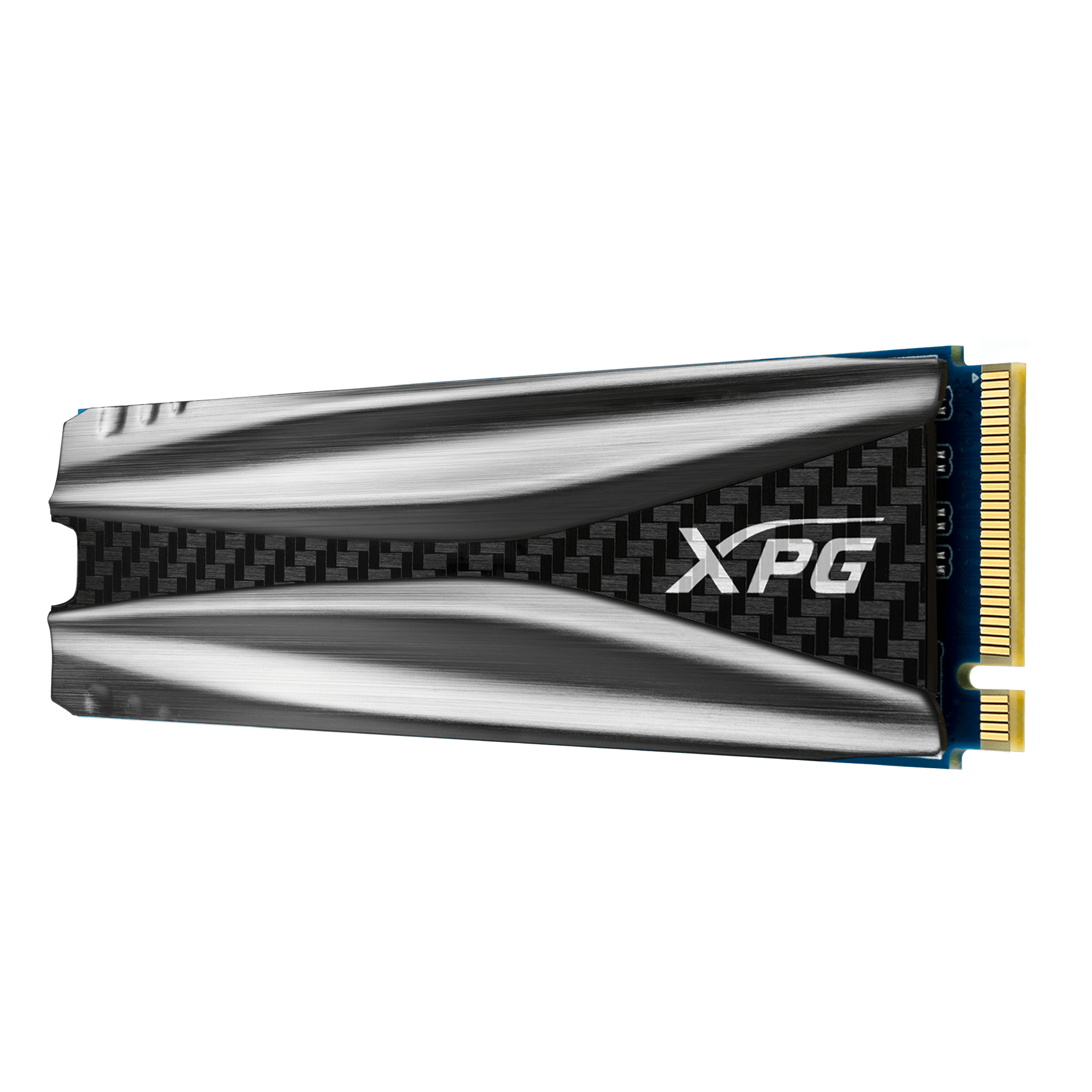

Gammix S50
Model Gammix S50Part no. AGAMMIXS50-1TT-CEAN 4710273773582
26 specifications
- Storage1 TB
- ConnectivityPCI Express 4.0
- Weight12 g
- Power consumption (average)0.8 W
- Width80 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 1 TB
- Connectivity
- PCI Express 4.0
- Weight
- 12 g
- Power consumption (average)
- 0.8 W
- Width
- 80 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- XPG
- Category
- Internal Solid State Drive
- Model
- Gammix S50
- Part numbers
- AGAMMIXS50-1TT-C, AGAMMIXS50-2TT-C
- EAN / UPC
- 4710273773582, 4710273773599
- Also known as
- XPG Gammix S50 1 TB M.2 PCI Express 4.0 NVMe 3D TLC
Specifications
26 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| NVMe version | 1.3 |
| Memory type | 3D TLC |
| Component for | PC |
| Security algorithms | 256-bit AES |
| Read speed | 5000 MB/s |
| Write speed | 4700 MB/s |
| Random read (4KB) | 750000 IOPS |
| Random write (4KB) | 750000 IOPS |
| PCI Express interface data lanes | x4 |
| ECC | Yes |
| Mean time between failures (MTBF) | 1700000 h |
| TBW rating | 1800 |
| Certification | CE, FCC, BSMI, RCM, KC, Morocco |
Power
| Specification | Value |
|---|---|
| Power consumption (average) | 0.8 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 22 mm |
| Height | 6.1 mm |
| Weight | 12 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating shock | 1500 G |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
