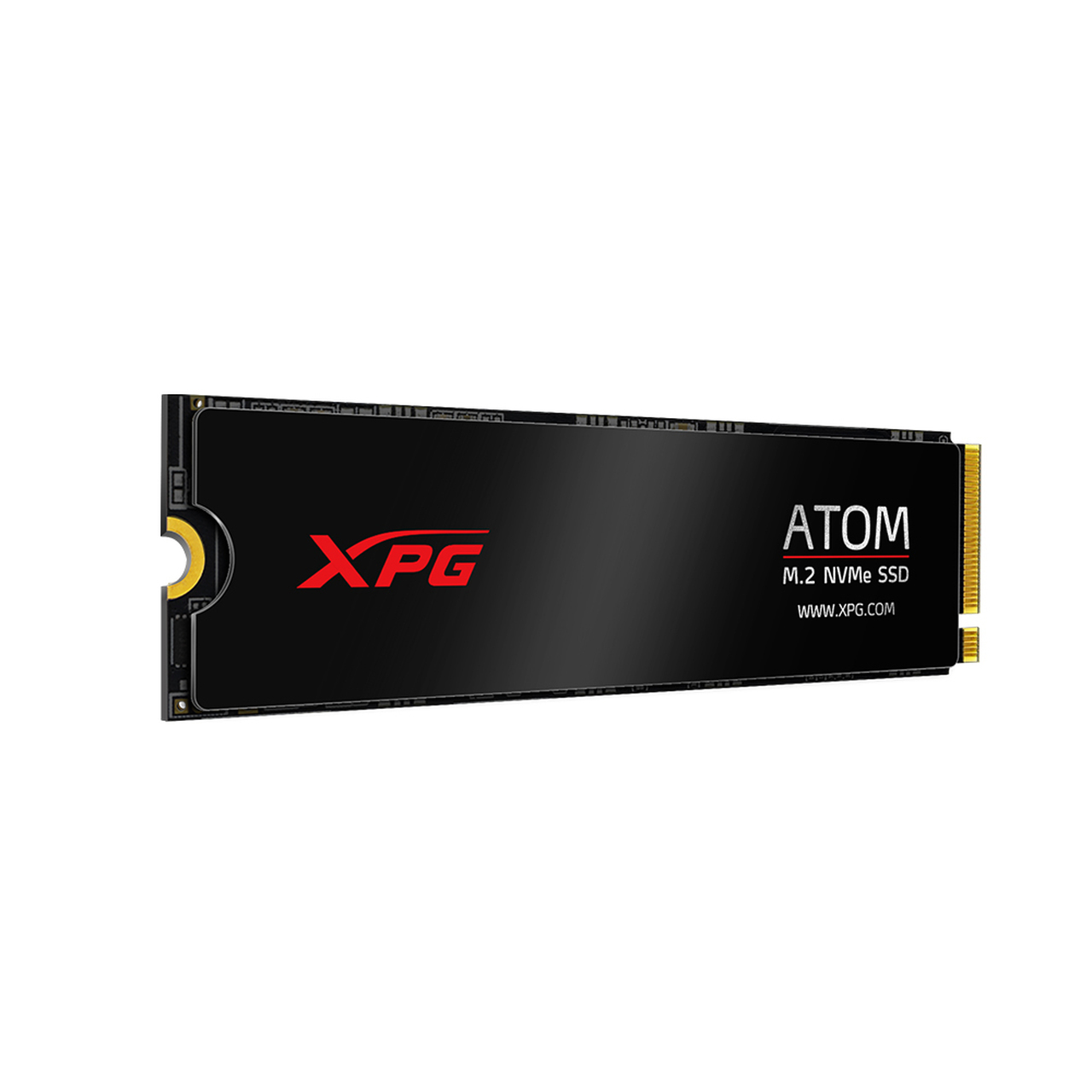

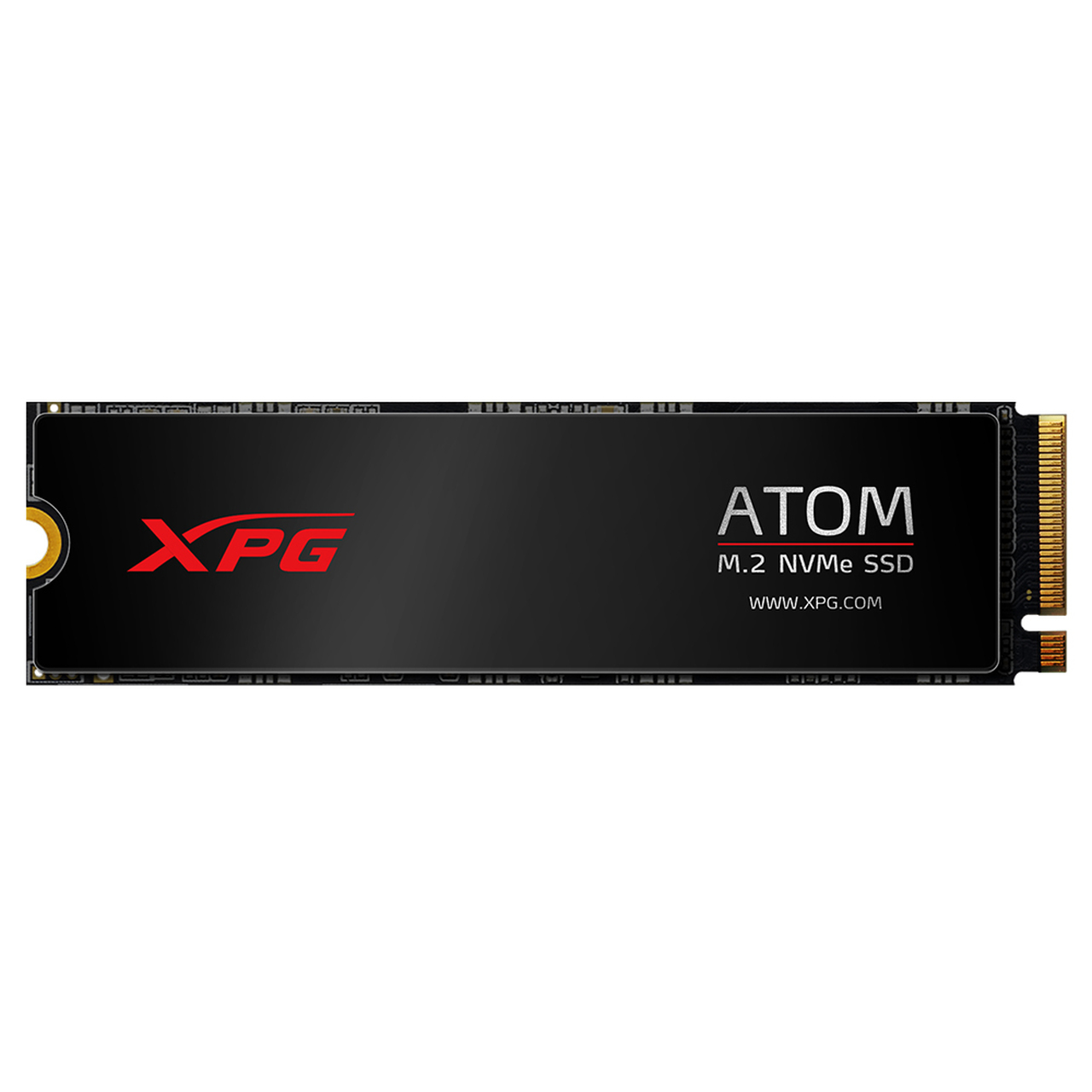

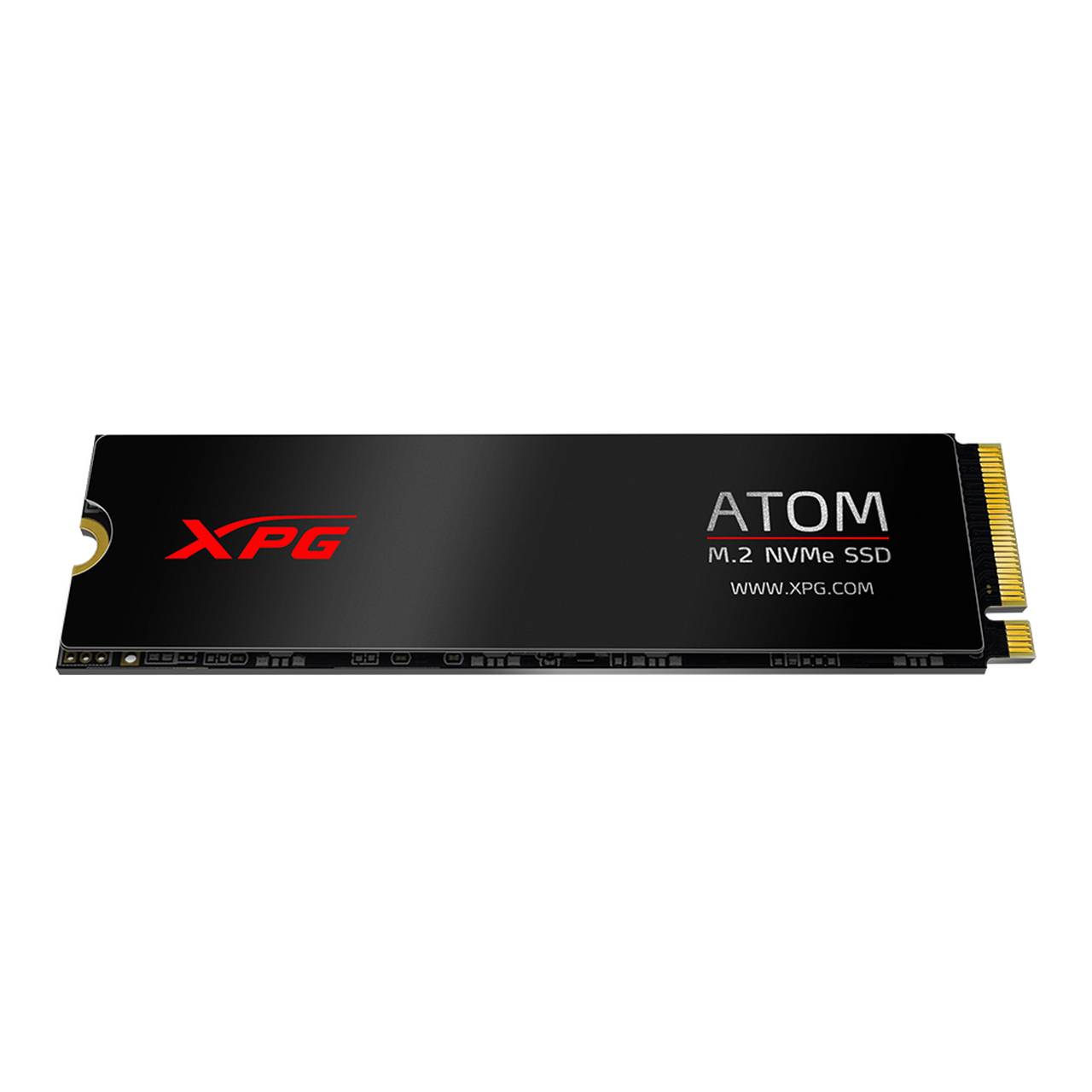

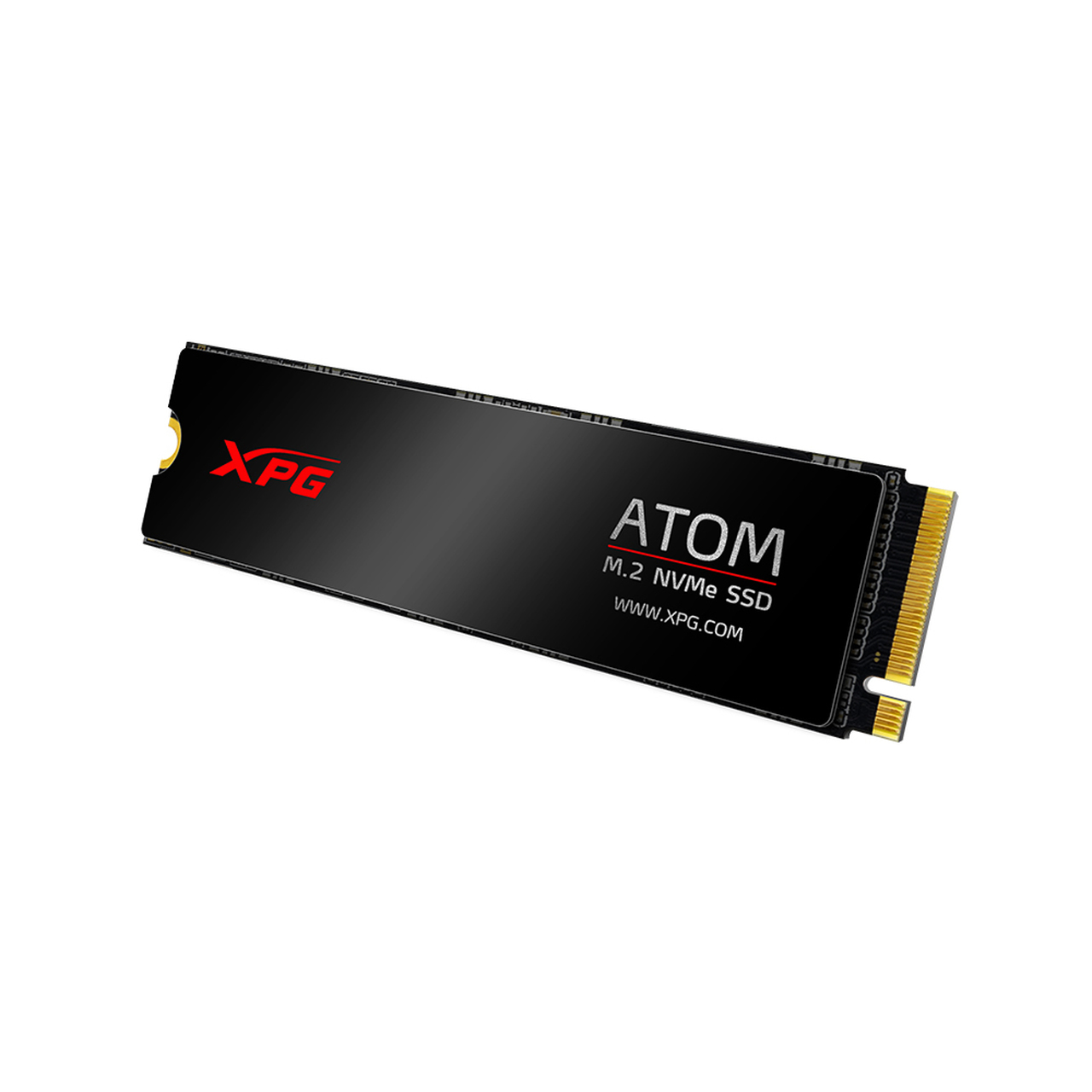

Atom 50
Model Atom 50Part no. AATO-50-1TCIEAN 842243025965
30 specifications
- Storage1 TB
- ConnectivityPCI Express 4.0
- Weight9 g
- ColourBlack
- Width22 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 1 TB
- Connectivity
- PCI Express 4.0
- Weight
- 9 g
- Colour
- Black
- Width
- 22 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- XPG
- Category
- Internal Solid State Drive
- Model
- Atom 50
- Part number
- AATO-50-1TCI
- EAN / UPC
- 842243025965
- Also known as
- XPG Atom 50 1 TB M.2 PCI Express 4.0 NVMe 3D NAND
Specifications
30 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| Memory type | 3D NAND |
| Component for | Universal |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| Data transfer rate | 5 Gbit/s |

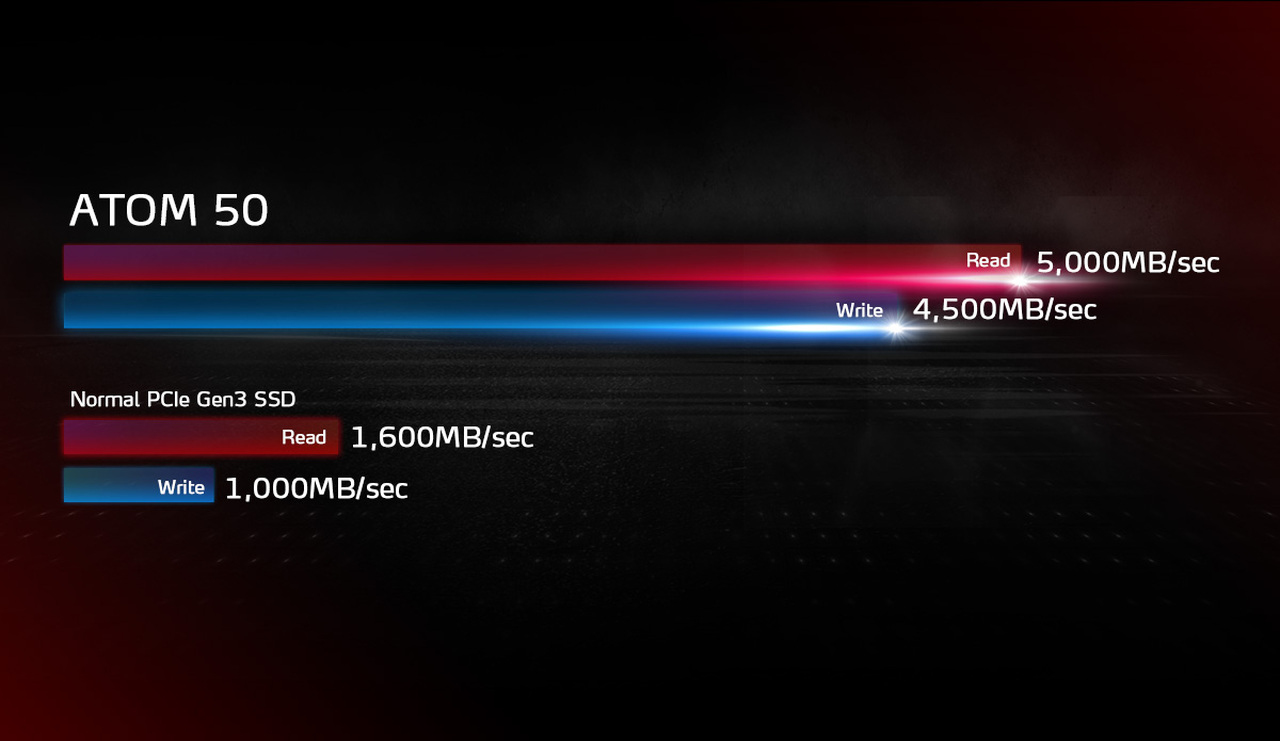

| Read speed | 5000 MB/s |
| Write speed | 4500 MB/s |
| Random read (4KB) | 650000 IOPS |
| Random write (4KB) | 600000 IOPS |
| PCI Express interface data lanes | x4 |
| ECC | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| TBW rating | 650 |
| Certification | FCC, BSMI, Morocco, EAC, RCM, UKCA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22 mm |
| Depth | 80 mm |
| Height | 3.13 mm |
| Weight | 9 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | 0 °C |
| Operating shock | 1500 G |
Other features
| Specification | Value |
|---|---|
| Product colour | Black |
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
