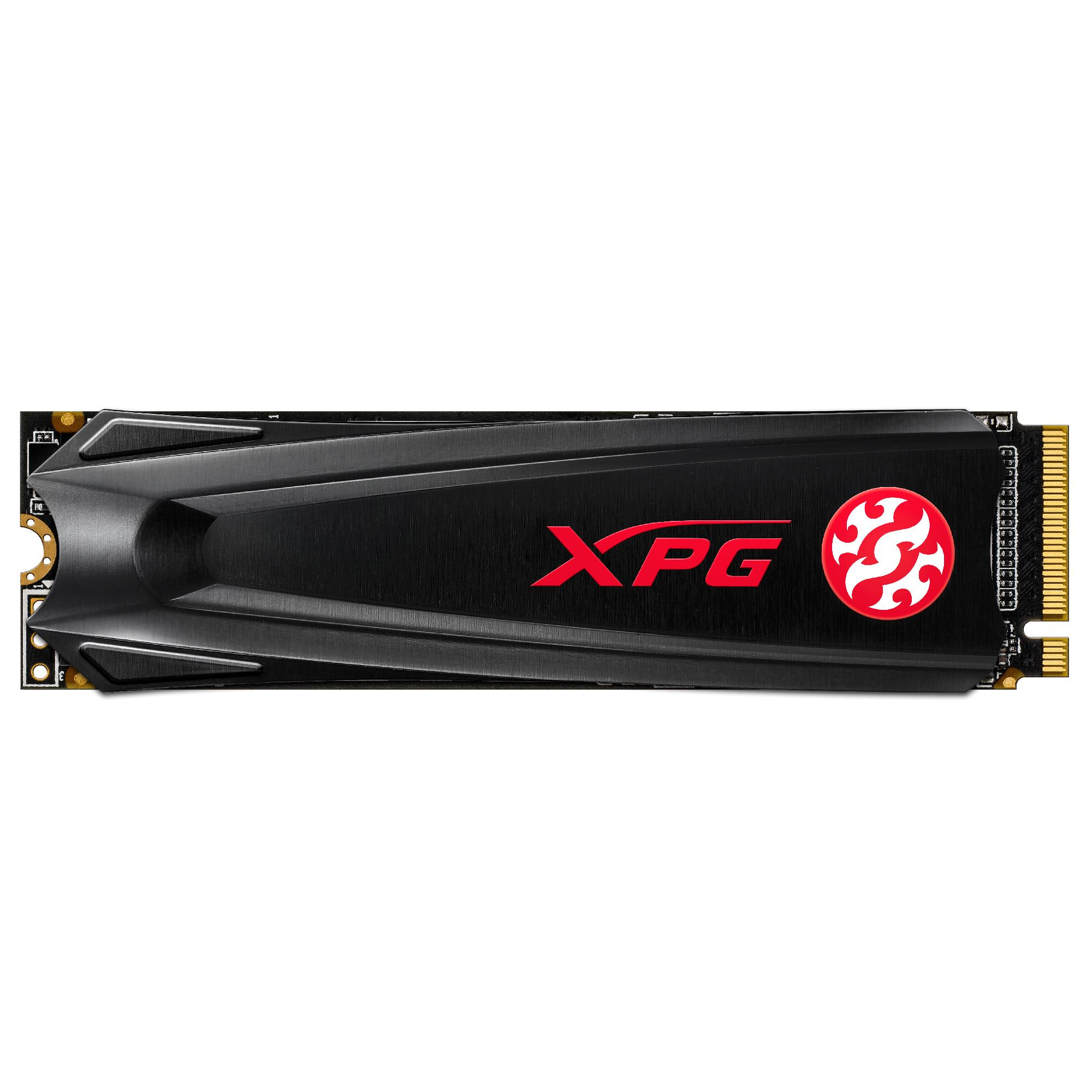

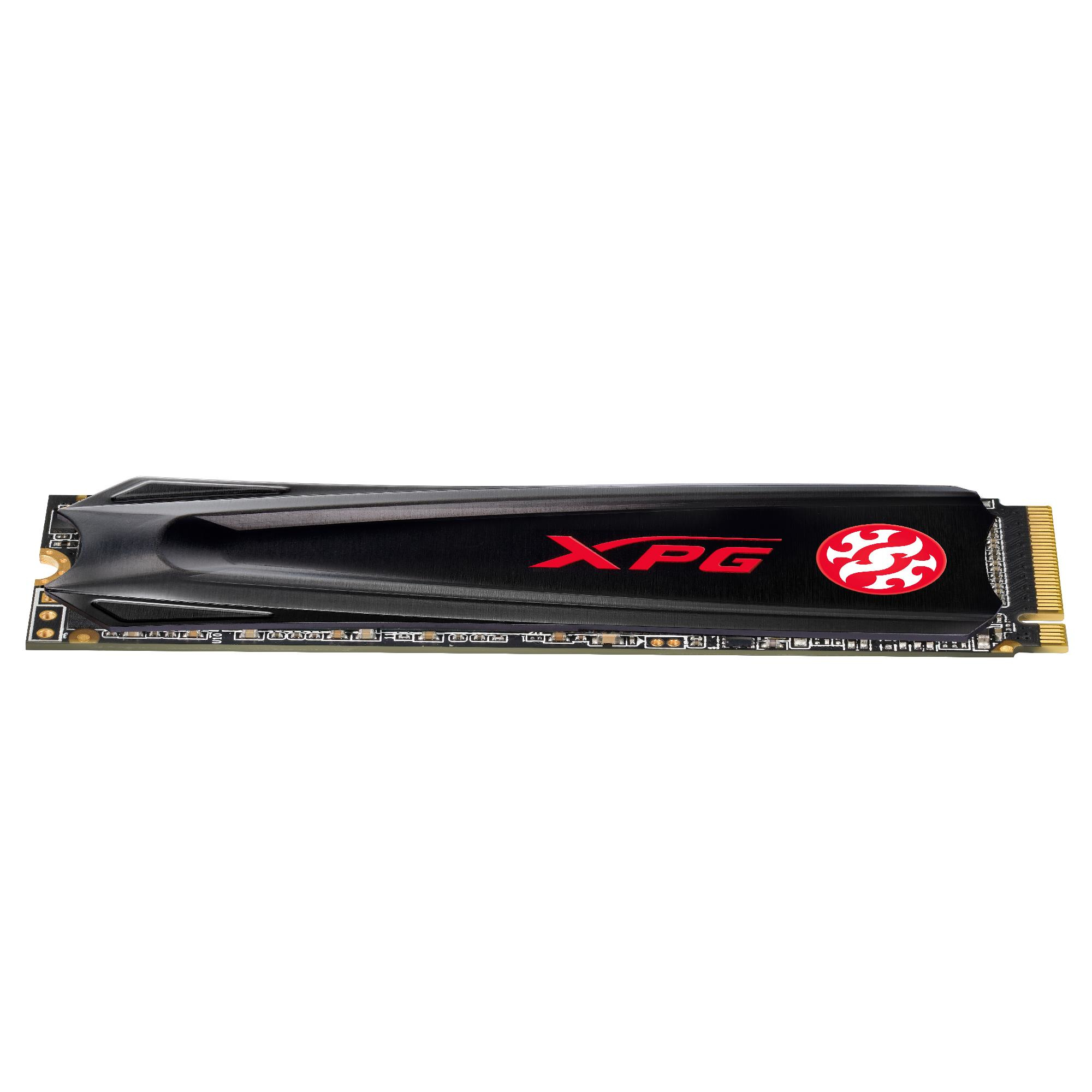

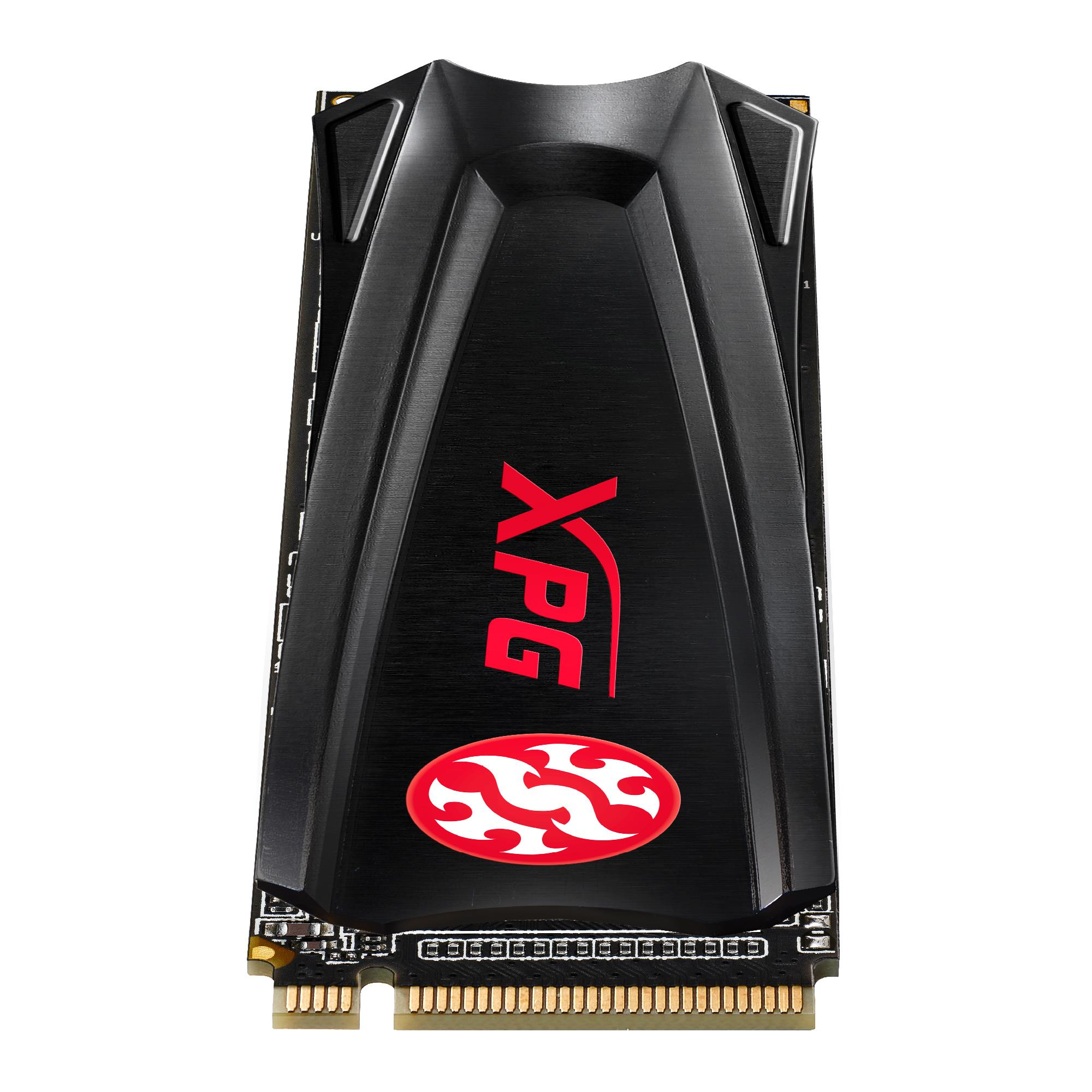

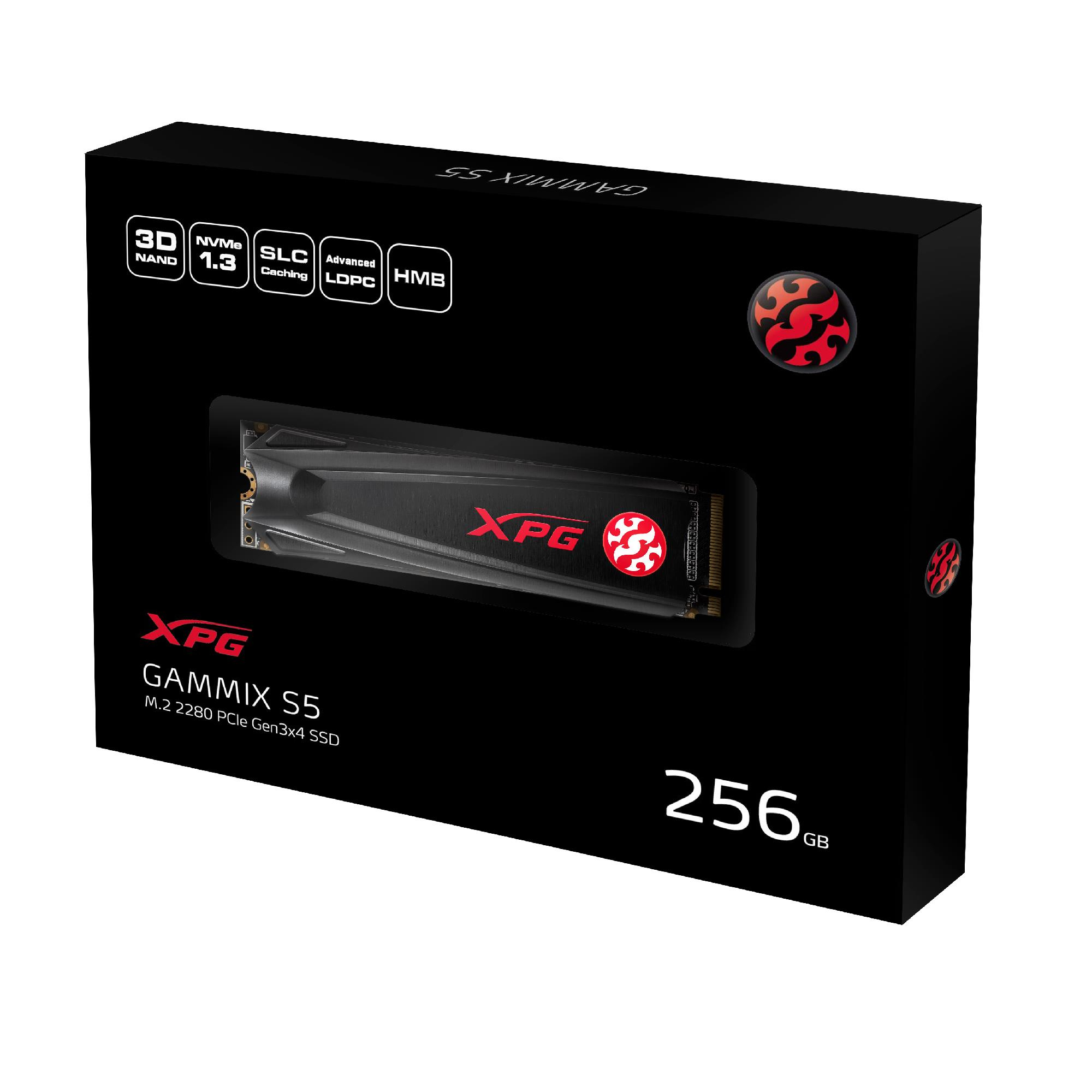

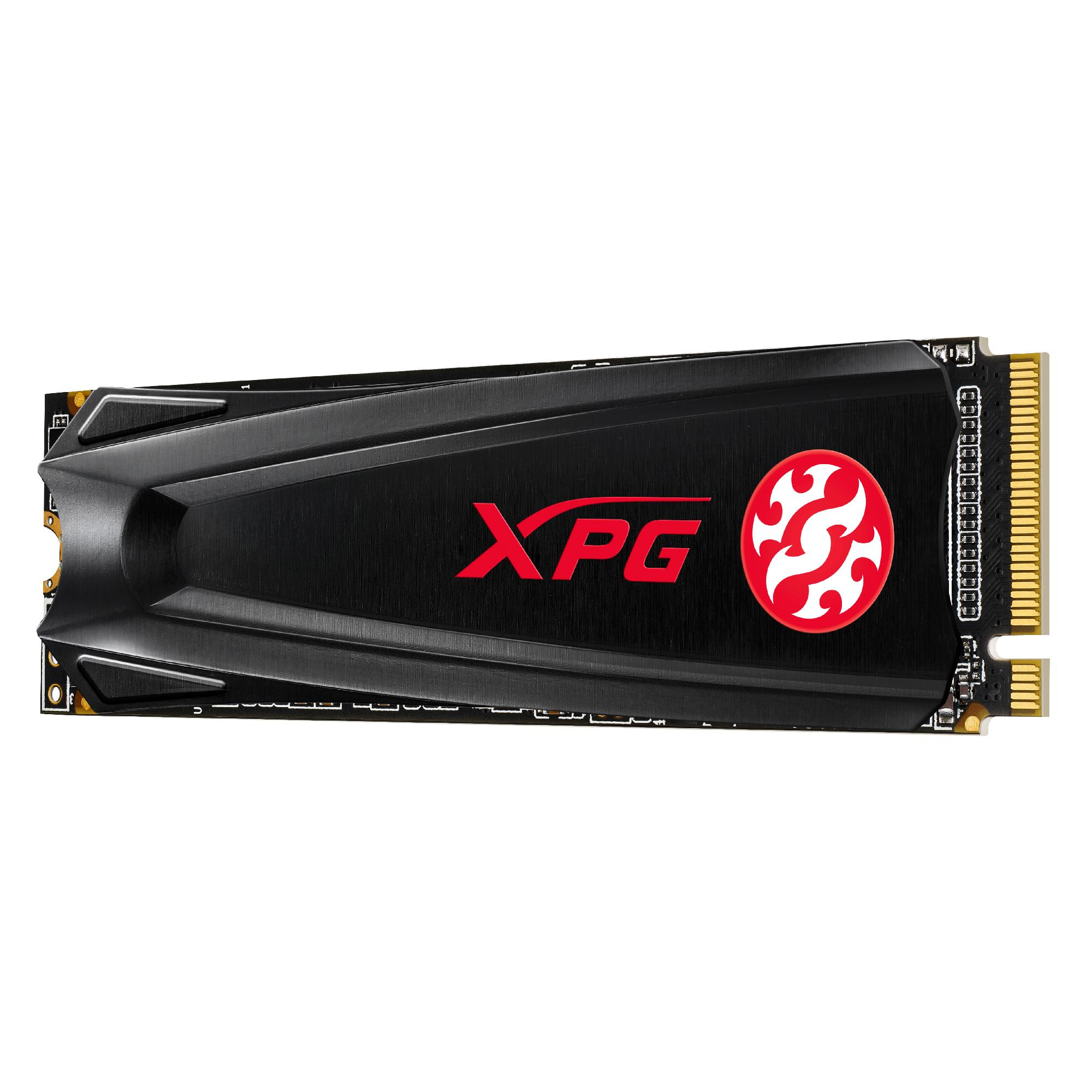

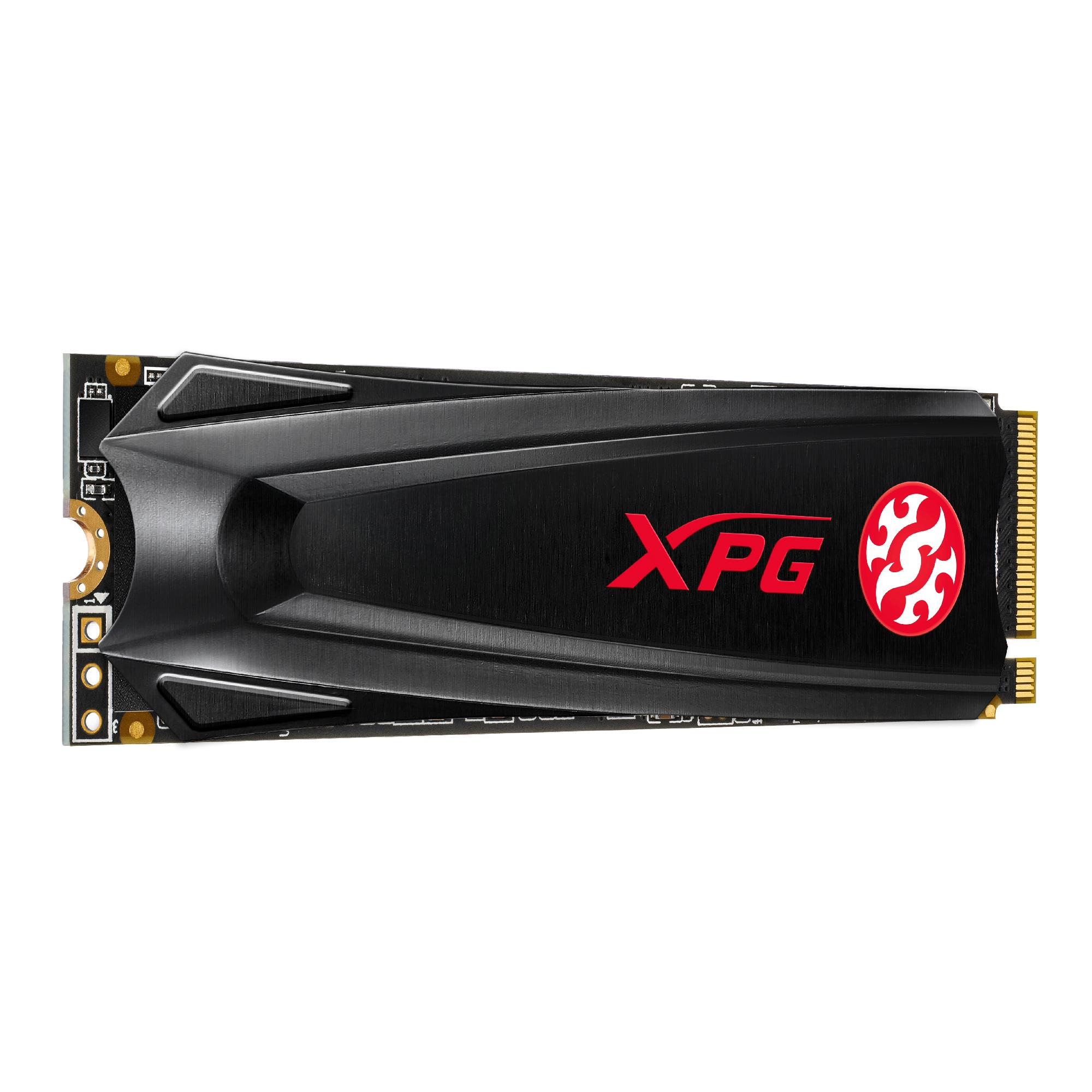

AGAMMIXS5-256GT-C internal solid state drive
256 GB M.2 PCI Express 3.0 NVMe TLC
Model AGAMMIXS5-256GT-CEAN 842243018516
38 specifications
- Storage256 GB
- ConnectivityPCI Express 3.0
- Weight11.2 g
- ColourBlack
- Power consumption (max)0.33 W
- Width80 mm
Overview
- Storage
- 256 GB
- Connectivity
- PCI Express 3.0
- Weight
- 11.2 g
- Colour
- Black
- Power consumption (max)
- 0.33 W
- Width
- 80 mm
- Brand
- XPG
- Category
- Internal Solid State Drive
- Model
- AGAMMIXS5-256GT-C
- Part number
- AGAMMIXS5-256GT-C
- EAN / UPC
- 842243018516, 4713218469250
- Also known as
- XPG AGAMMIXS5-256GT-C internal solid state drive 256 GB M.2 PCI Express 3.0 NVMe TLC
Specifications
38 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 256 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| NVMe version | 1.3 |
| Memory type | TLC |
| NAND flash type | TLC (Triple Level Cell) |
| Component for | PC/Laptop |
| Read speed | 2100 MB/s |
| Write speed | 1500 MB/s |
| Random read (4KB) | 190000 IOPS |
| Random write (4KB) | 180000 IOPS |
| Sequential read speed (ATTO) | 2100 MB/s |
| Sequential write speed (ATTO) | 1200 MB/s |
| Sequential read speed (CDM) | 2100 MB/s |
| Sequential write speed (CDM) | 1200 MB/s |
| Sequential read speed (AS SSD) | 1800 MB/s |
| Sequential write speed (AS SSD) | 1200 MB/s |
| ECC | Yes |
| Low-density parity-check (LDPC) | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| Protection features | Shock resistant |
| TBW rating | 150 |
| Certification | RoHS, CE, FCC, BSMI, VCCI, KC |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 0.33 W |
| Power consumption (sleep) | 0.14 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 22 mm |
| Height | 3.7 mm |
| Weight | 11.2 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating shock | 1500 G |
| Vibration resistance | 20 G |
Other features
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Heatsink |
| Compliance certificates | RoHS |
