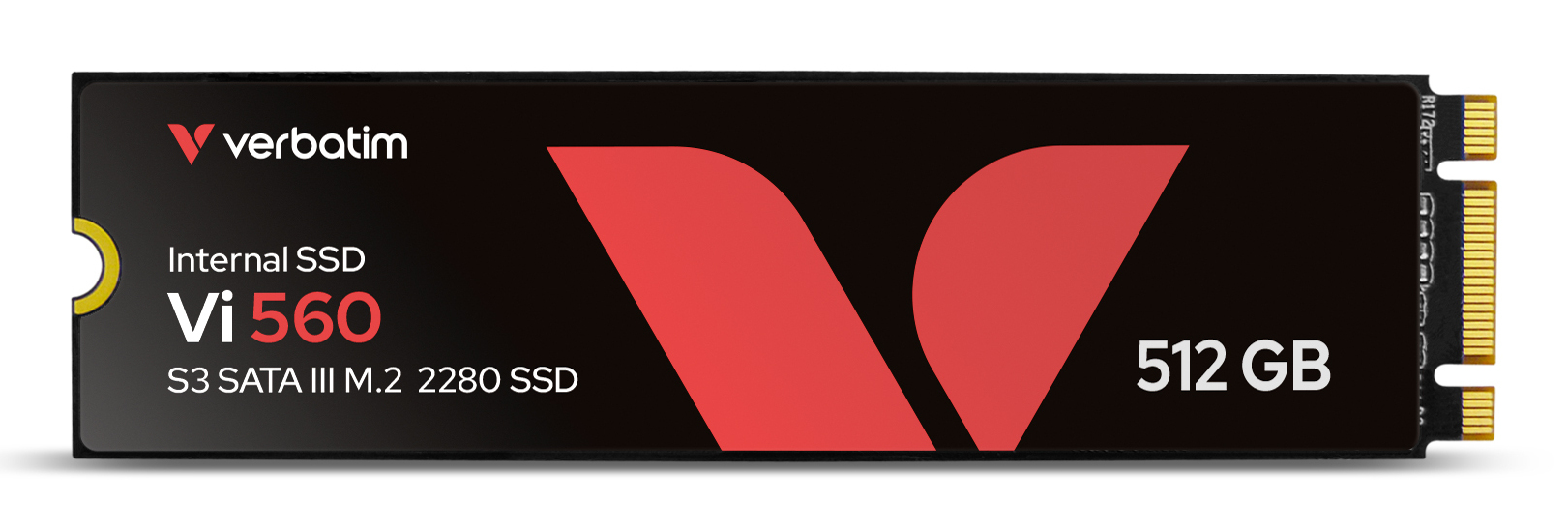

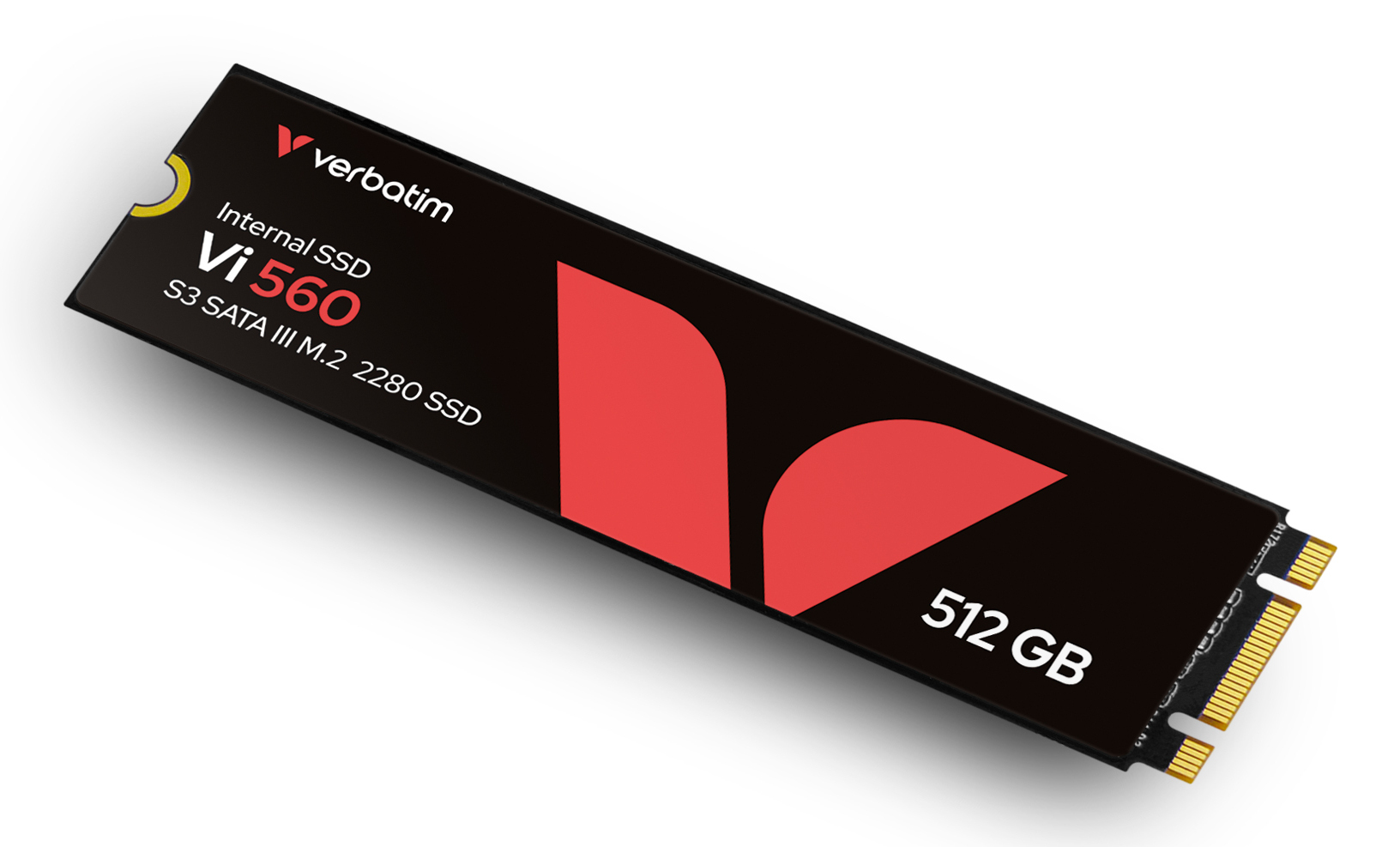

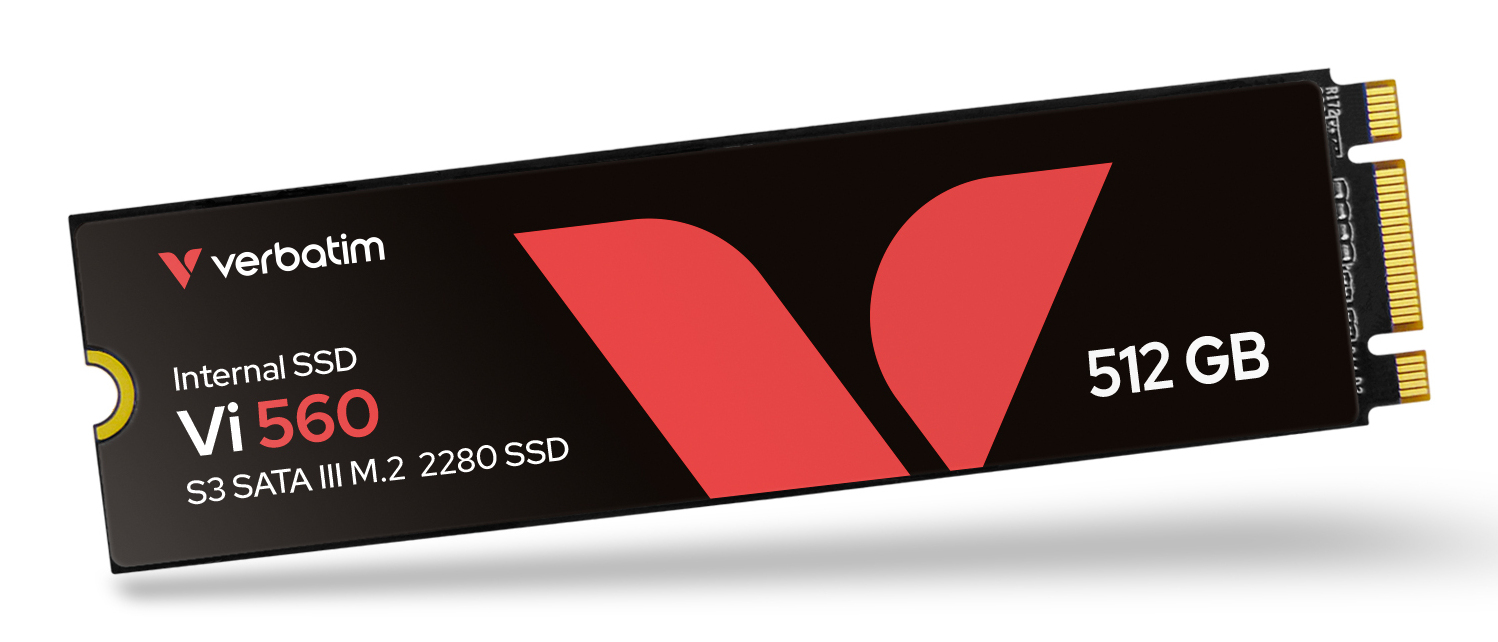

Vi560 S3
Model Vi560 S3Part no. 49363
45 specifications
- Storage512 GB
- ConnectivitySerial ATA III
- Weight9 g
- Power consumption (read)1.43 W
- Width80 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 512 GB
- Connectivity
- Serial ATA III
- Weight
- 9 g
- Power consumption (read)
- 1.43 W
- Width
- 80 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Verbatim
- Category
- Internal Solid State Drive
- Model
- Vi560 S3
- Part numbers
- 49363, 49364, 49362, 49365
- Also known as
- Verbatim Vi560 S3 M.2 SSD 512GB
Specifications
45 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 512 GB |
| SSD form factor | M.2 |
| Interface | Serial ATA III |
| NVMe | No |
| Memory type | 3D NAND |
| Component for | PC/Laptop |
| Hardware encryption | No |
| Data transfer rate | 6 Gbit/s |
| Read speed | 520 MB/s |
| Write speed | 480 MB/s |
| Random read (4KB) | 101376 IOPS |
| Random write (4KB) | 80400 IOPS |
| M.2 key ID | B+M |
| Mean time between failures (MTBF) | 1500000 h |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported | Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| TBW rating | 240 |
Power
| Specification | Value |
|---|---|
| Power consumption (read) | 1.43 W |
| Power consumption (write) | 1.39 W |
| Power consumption (idle) | 0.6 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 22 mm |
| Height | 2.3 mm |
| Weight | 9 g |
Packaging data
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Package width | 117 mm |
| Package depth | 25 mm |
| Package height | 148 mm |
| Package weight | 43 g |
| Package type | Hanging box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating shock | 1500 G |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) cases per pallet | 495 pc(s) |
| Layers per pallet | 5 pc(s) |
| Products per pallet | 990 pc(s) |
| Master (outer) case width | 128 mm |
| Harmonized System (HS) code | 84717070 |
| Master (outer) case length | 70 mm |
| Master (outer) case height | 188 mm |
| Master (outer) case gross weight | 120 g |
| Products per master (outer) case | 2 pc(s) |
