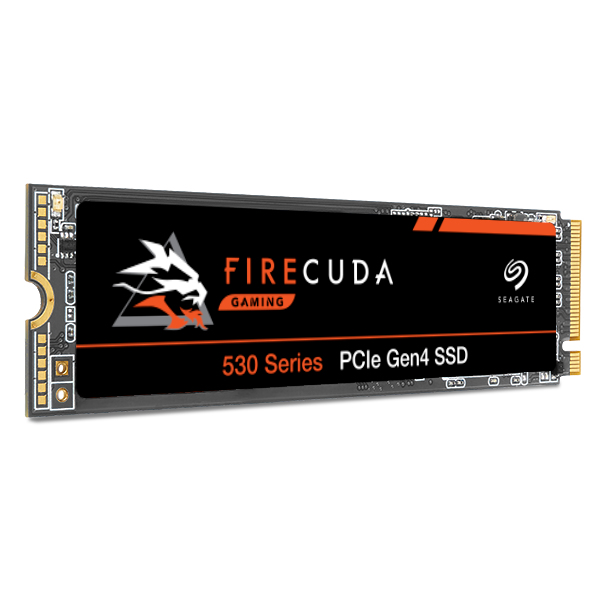

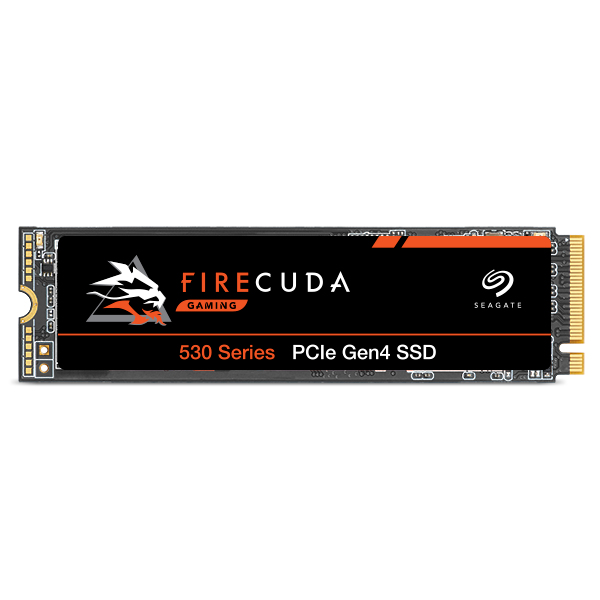

FireCuda ZP500GM30023 internal solid state drive
500 GB M.2 PCI Express 4.0 NVMe 3D TLC NAND
Model ZP500GM30023
27 specifications
- Storage500 GB
- ConnectivityPCI Express 4.0
- Weight47 g
- Power consumption (average)5.8 W
- Width24.2 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 500 GB
- Connectivity
- PCI Express 4.0
- Weight
- 47 g
- Power consumption (average)
- 5.8 W
- Width
- 24.2 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Seagate
- Category
- Internal Solid State Drive
- Model
- ZP500GM30023
- Part number
- ZP500GM30023
- Also known as
- Seagate FireCuda ZP500GM30023 internal solid state drive 500 GB M.2 PCI Express 4.0 NVMe 3D TLC NAND
Specifications
27 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 500 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| NVMe version | 1.4 |
| Memory type | 3D TLC NAND |
| Component for | Universal |
| Read speed | 7000 MB/s |
| Write speed | 3000 MB/s |
| Random read (4KB) | 400000 IOPS |
| Random write (4KB) | 700000 IOPS |
| PCI Express interface data lanes | x4 |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1800000 h |
| TBW rating | 640 |
Power
| Specification | Value |
|---|---|
| Power consumption (average) | 5.8 W |
| Power consumption (idle) | 0.014 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 24.2 mm |
| Depth | 80.2 mm |
| Height | 9.84 mm |
| Weight | 47 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Non-operating shock | 1500 G |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Technical details
| Specification | Value |
|---|---|
| Doesn't contain | Halogen |
