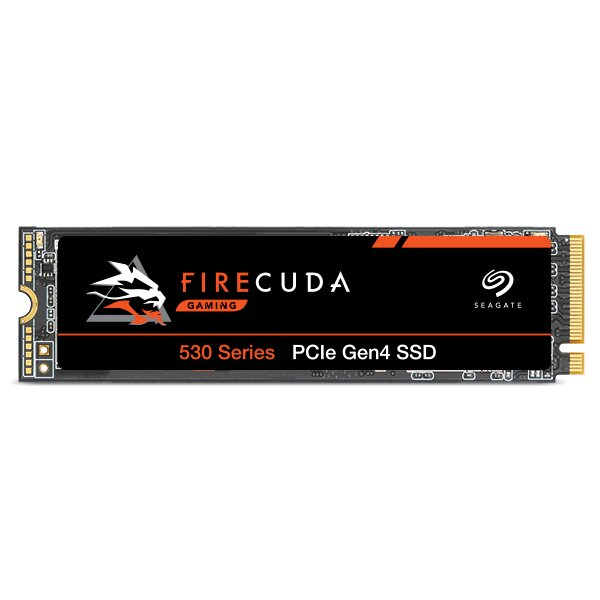

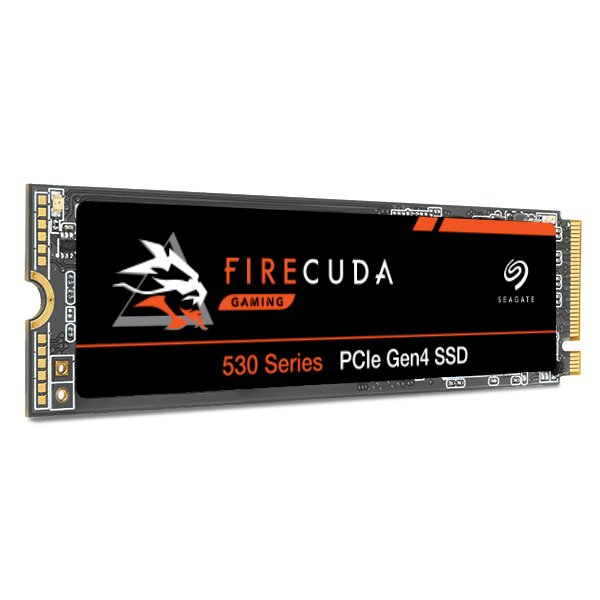

FireCuda ZP500GM30013 internal solid state drive
500 GB M.2 PCI Express 4.0 NVMe 3D TLC
Model ZP500GM30013
39 specifications
- Storage500 GB
- ConnectivityPCI Express 4.0
- Weight7.7 g
- Power consumption (average)5.8 W
- Width22.1 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 500 GB
- Connectivity
- PCI Express 4.0
- Weight
- 7.7 g
- Power consumption (average)
- 5.8 W
- Width
- 22.1 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Seagate
- Category
- Internal Solid State Drive
- Model
- ZP500GM30013
- Part number
- ZP500GM30013
- Also known as
- Seagate FireCuda ZP500GM30013 internal solid state drive 500 GB M.2 PCI Express 4.0 NVMe 3D TLC
Specifications
39 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 500 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| NVMe version | 1.4 |
| Memory type | 3D TLC |
| Component for | PC/Laptop |
| Read speed | 7000 MB/s |
| Write speed | 3000 MB/s |
| Random read (4KB) | 400000 IOPS |
| Random write (4KB) | 700000 IOPS |
| PCI Express interface data lanes | x4 |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1800000 h |
| Windows operating systems supported | Windows 10 |
| Linux operating systems supported | Yes |
| TBW rating | 640 |
Power
| Specification | Value |
|---|---|
| Power consumption (average) | 5.8 W |
| Power consumption (idle) | 14 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22.1 mm |
| Depth | 80.2 mm |
| Height | 2.23 mm |
| Weight | 7.7 g |
Packaging data
| Specification | Value |
|---|---|
| Bundled software | Rescue Data Recovery Services |
| Package width | 109 mm |
| Package depth | 24 mm |
| Package height | 134.2 mm |
| Package weight | 62 g |
| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Non-operating shock | 1.5 G |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Technical details
| Specification | Value |
|---|---|
| Doesn't contain | Halogen |
Logistics data
| Specification | Value |
|---|---|
| Pallet net height | 70.6 cm |
| Pallet net length | 121.9 cm |
| Pallet net weight | 47.5 kg |
| Pallet net width | 50.8 cm |
