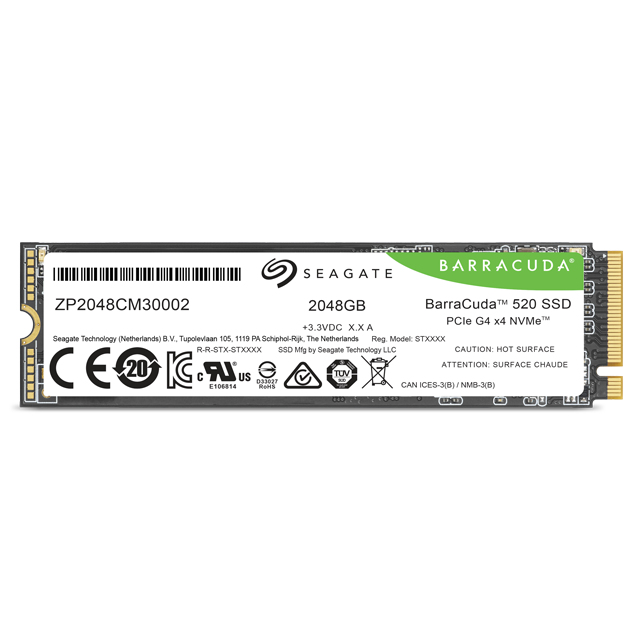

BarraCuda ZP2048CM3A002 internal solid state drive
2 TB M.2 PCI Express 4.0 NVMe
Model ZP2048CM3A002EAN 8719706437042
42 specifications
- Storage2 TB
- ConnectivityPCI Express 4.0
- Weight8 g
- Power consumption (max)5.7 W
- Width22.1 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 2 TB
- Connectivity
- PCI Express 4.0
- Weight
- 8 g
- Power consumption (max)
- 5.7 W
- Width
- 22.1 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Seagate
- Category
- Internal Solid State Drive
- Model
- ZP2048CM3A002
- Part number
- ZP2048CM3A002
- EAN / UPC
- 8719706437042
- Also known as
- Seagate BarraCuda ZP2048CM3A002 internal solid state drive 2 TB M.2 PCI Express 4.0 NVMe
Specifications
42 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 2 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| NVMe version | 1.4 |
| Component for | PC/Laptop |
| Hardware encryption | No |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 5000 MB/s |
| Write speed | 4200 MB/s |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1800000 h |
| TBW rating | 450 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 5.7 W |
| Power consumption (sleep) | 0.005 W |
| Power consumption (idle) | 0.05 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22.1 mm |
| Depth | 80.2 mm |
| Height | 2.23 mm |
| Weight | 8 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 178 mm |
| Package depth | 13 mm |
| Package height | 13 mm |
| Package weight | 51 g |
| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating shock | 1500 G |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Warranty period | 3 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Pallet net length | 101.6 cm |
| Pallet net weight | 193 kg |
| Pallet net width | 129 cm |
| Master (outer) cases per pallet | 90 pc(s) |
| Layers per pallet | 6 pc(s) |
| Master (outer) case width | 308 mm |
| Master (outer) case length | 196 mm |
| Master (outer) case height | 161 mm |
| Master (outer) case gross weight | 1.3 kg |
| Products per master (outer) case | 20 pc(s) |
