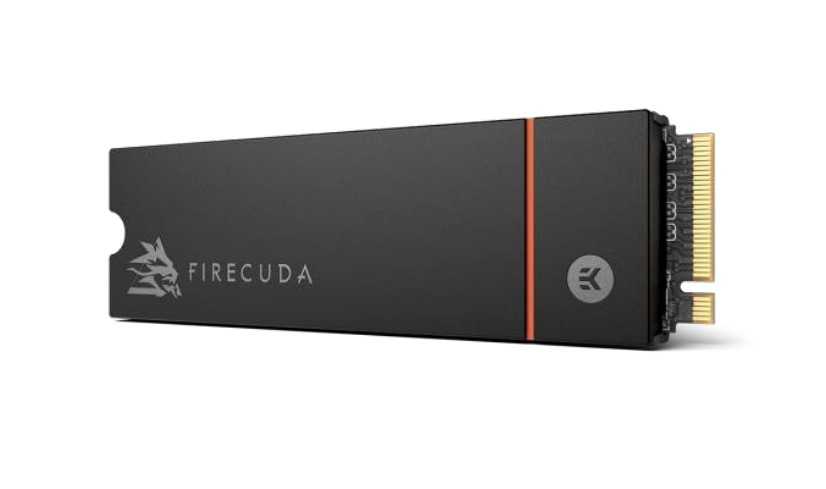

FireCuda ZP2000GM30023 internal solid state drive
2 TB M.2 PCI Express 4.0 NVMe 3D TLC
Model ZP2000GM30023
47 specifications
- Storage2 TB
- ConnectivityPCI Express 4.0
- Weight47 g
- Power consumption (average)8 W
- Width24.2 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 2 TB
- Connectivity
- PCI Express 4.0
- Weight
- 47 g
- Power consumption (average)
- 8 W
- Width
- 24.2 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Seagate
- Category
- Internal Solid State Drive
- Model
- ZP2000GM30023
- Part number
- ZP2000GM30023
- Also known as
- Seagate FireCuda ZP2000GM30023 internal solid state drive 2 TB M.2 PCI Express 4.0 NVMe 3D TLC
Specifications
47 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 2 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| NVMe version | 1.4 |
| Memory type | 3D TLC |
| Random read (4KB) | 1000000 IOPS |
| Random write (4KB) | 1000000 IOPS |
| Sequential read speed (ATTO) | 7300 MB/s |
| Sequential write speed (ATTO) | 6900 MB/s |
| PCI Express interface data lanes | x4 |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1800000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (average) | 8 W |
| Power consumption (standby) | 0.005 W |
| Power consumption (idle) | 0.024 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 24.2 mm |
| Depth | 80.2 mm |
| Height | 11 mm |
| Weight | 47 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 109 mm |
| Package depth | 24 mm |
| Package height | 134.2 mm |
| Package weight | 62 g |
| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | 0 °C |
| Non-operating shock | 1500 G |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Technical details
| Specification | Value |
|---|---|
| Doesn't contain | Halogen |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) cases per pallet layer | 48 pc(s) |
| Pallet net height | 70.6 cm |
| Pallet net length | 121.9 cm |
| Pallet net weight | 4.75 kg |
| Pallet net width | 50.8 cm |
| Products per pallet (EU) | 480 pc(s) |
| Master (outer) cases per pallet | 48 pc(s) |
| Products per pallet | 480 pc(s) |
| Master (outer) case width | 278 mm |
| Master (outer) case length | 129 mm |
| Master (outer) case height | 169 mm |
| Master (outer) case net weight | 92 g |
| Products per master (outer) case | 10 pc(s) |
