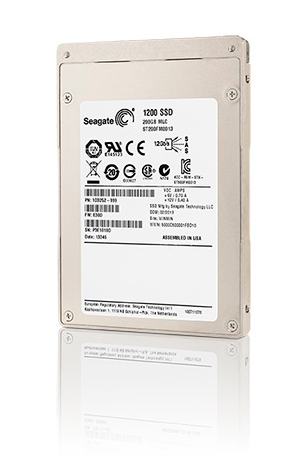

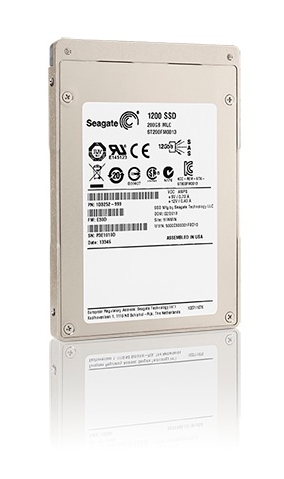

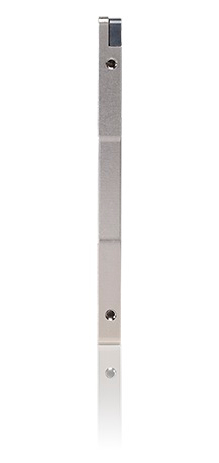

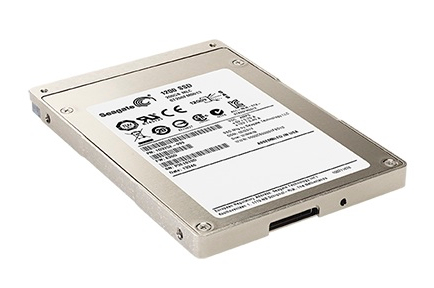

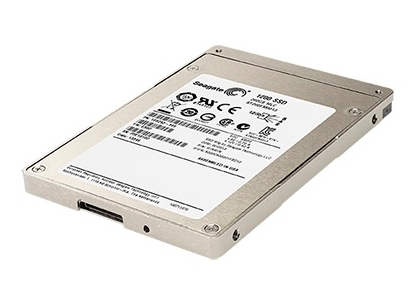

ST200FM0053-RFB internal solid state drive
200 GB 2.5" SAS MLC
Model ST200FM0053-RFBEAN 5711783317180
25 specifications
- Storage200 GB
- ConnectivitySAS
- Weight100 g
- ColourWhite
- Power consumption (read)3.93 W
- Width70 mm
Overview
- Storage
- 200 GB
- Connectivity
- SAS
- Weight
- 100 g
- Colour
- White
- Power consumption (read)
- 3.93 W
- Width
- 70 mm
- Brand
- Seagate
- Category
- Internal Solid State Drive
- Model
- ST200FM0053-RFB
- Part number
- ST200FM0053-RFB
- EAN / UPC
- 5711783317180
- Also known as
- Seagate ST200FM0053-RFB internal solid state drive 200 GB 2.5" SAS MLC
Specifications
25 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 200 GB |
| SSD form factor | 2.5" |
| Interface | SAS |
| Memory type | MLC |
| Data transfer rate | 12 Gbit/s |
| Read speed | 750 MB/s |
| Write speed | 400 MB/s |
| Random read (4KB) | 110000 IOPS |
| Random write (4KB) | 25000 IOPS |
Power
| Specification | Value |
|---|---|
| Power consumption (read) | 3.93 W |
| Power consumption (write) | 3.93 W |
| Power consumption (sleep) | 2.5 W |
| Power consumption (idle) | 2.89 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 100 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating vibration | 11.08 G |
| Operating shock | 1000 G |
Other features
| Specification | Value |
|---|---|
| Product colour | White |
| Internal | Yes |
