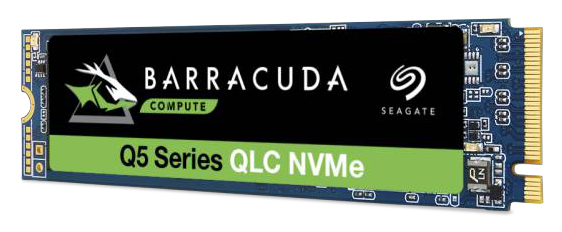

BarraCuda Q5
500 GB M.2 PCI Express 3.0 NVMe QLC 3D NAND
Model Q5Part no. ZP500CV3A001EAN 763649147467
31 specifications
- Storage500 GB
- ConnectivityPCI Express 3.0
- Weight7 g
- Power consumption (average)2.2 W
- Width22 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 500 GB
- Connectivity
- PCI Express 3.0
- Weight
- 7 g
- Power consumption (average)
- 2.2 W
- Width
- 22 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Seagate
- Category
- Internal Solid State Drive
- Model
- Q5
- Part numbers
- ZP500CV3A001, ZP500CV30001
- EAN / UPC
- 763649147467, 8719706027717, 763649147436
- Also known as
- Seagate BarraCuda Q5 500 GB M.2 PCI Express 3.0 NVMe QLC 3D NAND
Specifications
31 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 500 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| NVMe version | 1.3 |
| Memory type | QLC 3D NAND |
| Component for | PC/Laptop |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 2300 MB/s |
| Write speed | 900 MB/s |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1800000 h |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (average) | 2.2 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.15 mm |
| Weight | 7 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 133 mm |
| Package depth | 178 mm |
| Package height | 13 mm |
| Package weight | 51 g |
| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Non-operating shock | 1500 G |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | Yes |
Technical details
| Specification | Value |
|---|---|
| Doesn't contain | Halogen |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717070 |
