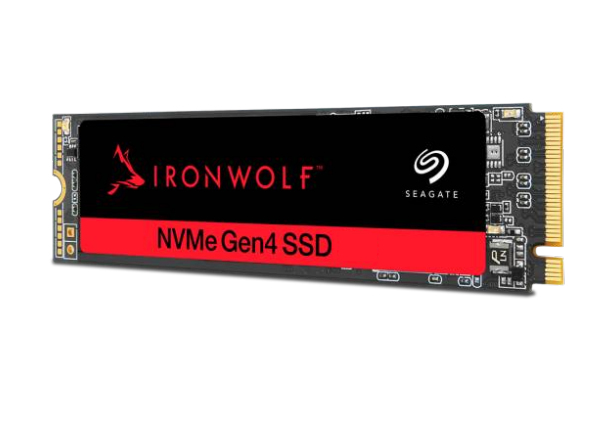

IronWolf 525
500 GB M.2 PCI Express 4.0 NVMe 3D TLC
Model 525Part no. ZP500NM3A002-10PKEAN 763649170748
30 specifications
- Storage500 GB
- ConnectivityPCI Express 4.0
- Weight8.7 g
- Operating voltage3.3 V
- Width22.1 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 500 GB
- Connectivity
- PCI Express 4.0
- Weight
- 8.7 g
- Operating voltage
- 3.3 V
- Width
- 22.1 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Seagate
- Category
- Internal Solid State Drive
- Model
- 525
- Part numbers
- ZP500NM3A002-10PK, ZP1000NM3A002-20PK, ZP500NM3A002, ZP1000NM3A002, ZP2000NM3A002-10PK
- EAN / UPC
- 763649170748, 8719706427883, 763649170755, 8719706427890
- Also known as
- Seagate IronWolf 525 500 GB M.2 PCI Express 4.0 NVMe 3D TLC
Specifications
30 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 500 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| NVMe version | 1.3 |
| Memory type | 3D TLC |
| Component for | PC/Laptop |
| Read speed | 5000 MB/s |
| Write speed | 2500 MB/s |
| Random read (4KB) | 420000 IOPS |
| Random write (4KB) | 630000 IOPS |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
| Mean time between failures (MTBF) | 1800000 h |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 3.3 V |
| Power consumption (max) | 5.6 W |
| Power consumption (idle) | 0.02 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22.1 mm |
| Depth | 80.2 mm |
| Height | 3.58 mm |
| Weight | 8.7 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 109 mm |
| Package depth | 155 mm |
| Package height | 24 mm |
| Package weight | 63 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating shock | 1500 G |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717070 |
