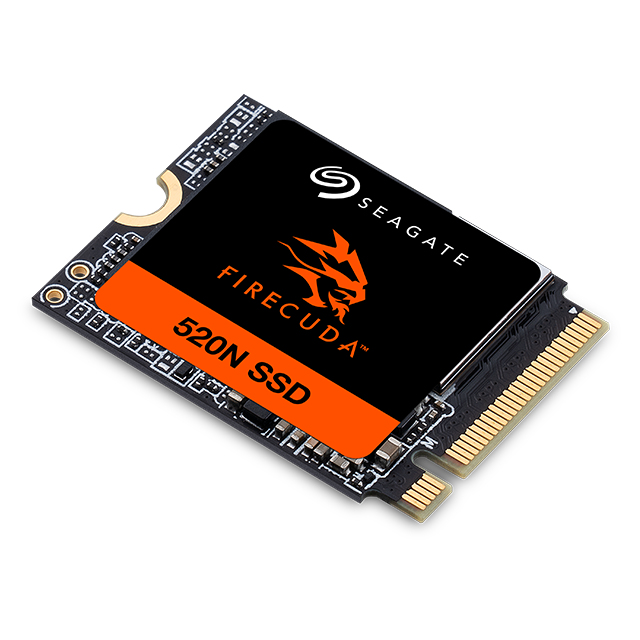

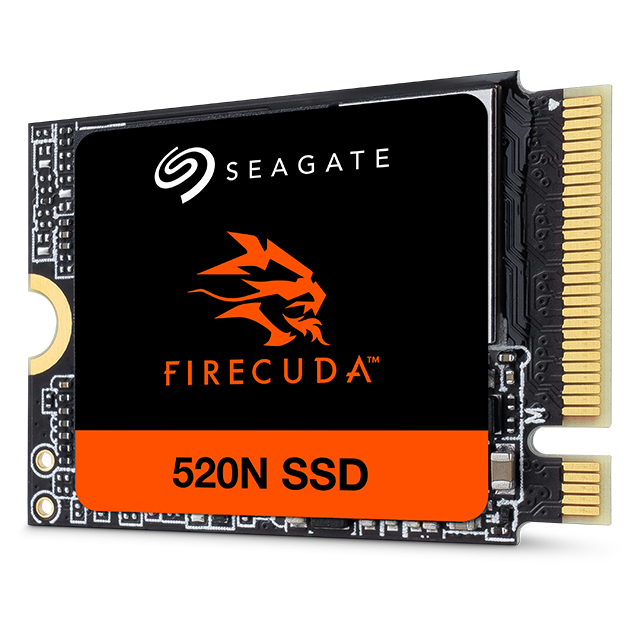

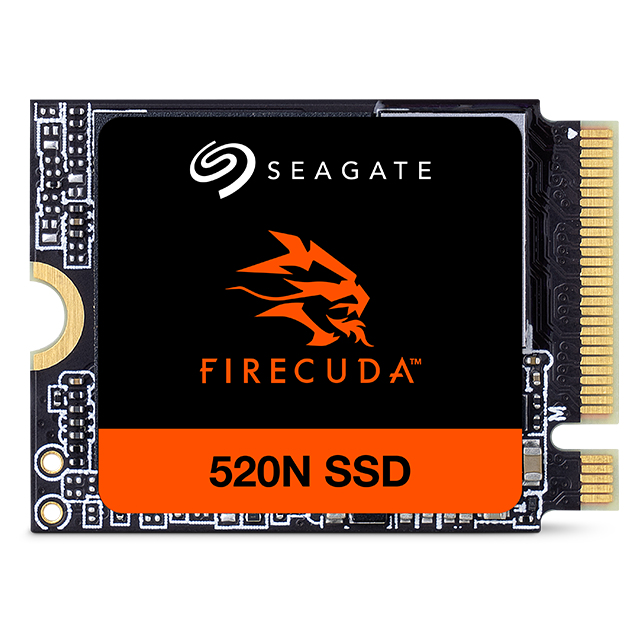

FireCuda 520N
1 TB M.2 PCI Express 4.0 NVMe
Model 520NPart no. ZP1024GV3A002-10PK
29 specifications
- Storage1 TB
- ConnectivityPCI Express 4.0
- Weight3 g
- Power consumption (average)4.3 W
- Width22.1 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 1 TB
- Connectivity
- PCI Express 4.0
- Weight
- 3 g
- Power consumption (average)
- 4.3 W
- Width
- 22.1 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Seagate
- Category
- Internal Solid State Drive
- Model
- 520N
- Part number
- ZP1024GV3A002-10PK
- Also known as
- Seagate FireCuda 520N 1 TB M.2 PCI Express 4.0 NVMe
Specifications
29 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| Component for | Universal |
| M.2 SSD size | 2230 (22 x 30 mm) |
| Random read (4KB) | 800000 IOPS |
| Random write (4KB) | 900000 IOPS |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1800000 h |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| TBW rating | 600 |
Power
| Specification | Value |
|---|---|
| Power consumption (average) | 4.3 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22.1 mm |
| Depth | 30.1 mm |
| Height | 2.23 mm |
| Weight | 3 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 109 mm |
| Package depth | 24 mm |
| Package height | 155 mm |
| Package weight | 70 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Non-operating shock | 1500 G |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |

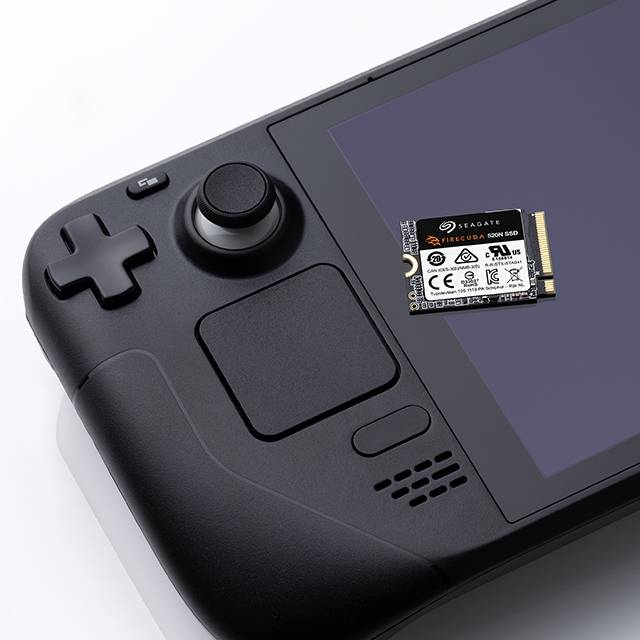

| Compatible products | Valve Steam Deck, ASUS ROG Ally, Lenovo Legion Go, Microsoft Surface |
| Warranty period | 5 year(s) |
