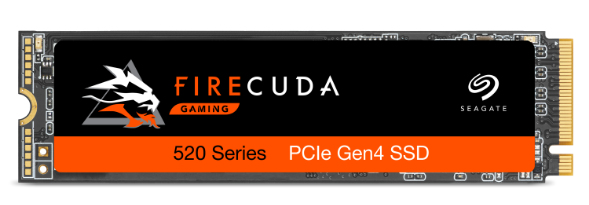

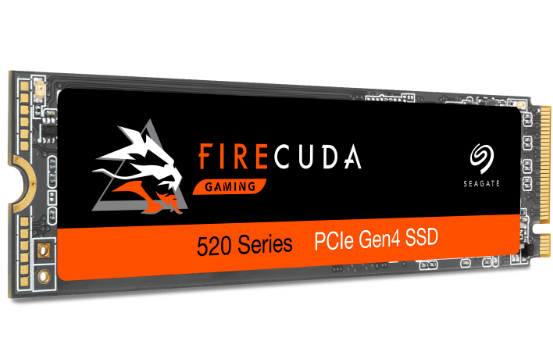

FireCuda 520
1 TB M.2 PCI Express 4.0 NVMe 3D TLC
Model 520Part no. ZP500GV3A012-20PKEAN 8719706433150
30 specifications
- Storage1 TB
- ConnectivityPCI Express 4.0
- Weight8 g
- Power consumption (average)5.6 W
- Width22.1 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 1 TB
- Connectivity
- PCI Express 4.0
- Weight
- 8 g
- Power consumption (average)
- 5.6 W
- Width
- 22.1 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Seagate
- Category
- Internal Solid State Drive
- Model
- 520
- Part numbers
- ZP500GV3A012-20PK, ZP1000GM3A002, ZP2000GM3A002, ZP500GM3A002, ZP500GV3A012, ZP2000GV3A012 +3 more
- EAN / UPC
- 8719706433150, 763649138298, 8719706020008, 763649138281 +8 more
- Also known as
- Seagate FireCuda 520 1 TB M.2 PCI Express 4.0 NVMe 3D TLC
Specifications
30 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| NVMe version | 1.3 |
| Memory type | 3D TLC |
| Component for | PC/Laptop |
| Hardware encryption | No |
| Read speed | 5000 MB/s |
| Write speed | 4400 MB/s |
| Random read (4KB) | 760000 IOPS |
| Random write (4KB) | 700000 IOPS |
| PCI Express interface data lanes | x4 |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1800000 h |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| TBW rating | 1800 |
Power
| Specification | Value |
|---|---|
| Power consumption (average) | 5.6 W |
| Power consumption (idle) | 0.15 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22.1 mm |
| Depth | 80.2 mm |
| Height | 3.58 mm |
| Weight | 8 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Non-operating shock | 1500 G |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717070 |
