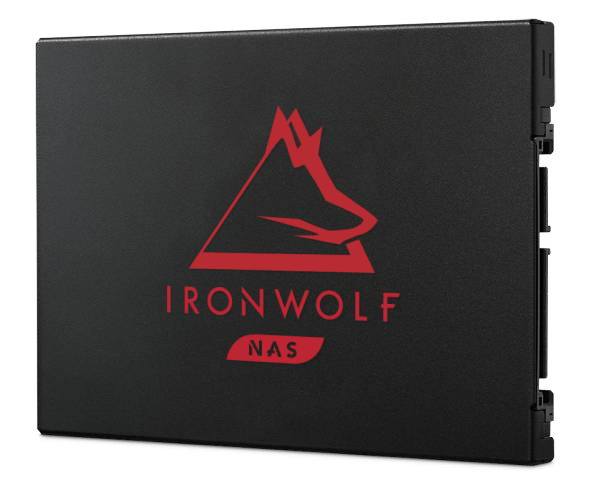

IronWolf 125
1 TB 2.5" Serial ATA III 3D TLC
Model 125Part no. ZA1000NM10002EAN 763649146842
35 specifications
- Storage1 TB
- ConnectivitySerial ATA III
- Weight50 g
- Operating voltage5 V
- Width70.1 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 1 TB
- Connectivity
- Serial ATA III
- Weight
- 50 g
- Operating voltage
- 5 V
- Width
- 70.1 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Seagate
- Category
- Internal Solid State Drive
- Model
- 125
- Part numbers
- ZA1000NM10002, ZA250NM1A002-10PK, ZA4000NM1A002-10PK, ZA1000NM1A002-10PK, ZA500NM1A002-10PK, ZA2000NM1A002-10PK +9 more
- EAN / UPC
- 763649146842, 8719706027113, 763649146880, 8719706027151 +6 more
- Also known as
- Seagate IronWolf 125 1 TB 2.5" Serial ATA III 3D TLC
Specifications
35 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 1 TB |
| SSD form factor | 2.5" |
| Interface | Serial ATA III |
| Memory type | 3D TLC |
| Component for | NAS |
| Data transfer rate | 6 Gbit/s |
| Read speed | 560 MB/s |
| Write speed | 540 MB/s |
| Random read (4KB) | 95000 IOPS |
| Random write (4KB) | 90000 IOPS |
| Mean time between failures (MTBF) | 1800000 h |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| TBW rating | 1400 |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Power consumption (max) | 2.4 W |
| Power consumption (idle) | 0.13 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70.1 mm |
| Depth | 100.3 mm |
| Height | 7.1 mm |
| Weight | 50 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 109 mm |
| Package depth | 24 mm |
| Package height | 155 mm |
| Package weight | 100 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating shock | 1500 G |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) cases per pallet | 216 pc(s) |
| Layers per pallet | 9 pc(s) |
| Master (outer) case width | 292 mm |
| Harmonized System (HS) code | 84717070 |
| Master (outer) case length | 153 mm |
| Master (outer) case height | 140 mm |
| Master (outer) case gross weight | 1.2 kg |
