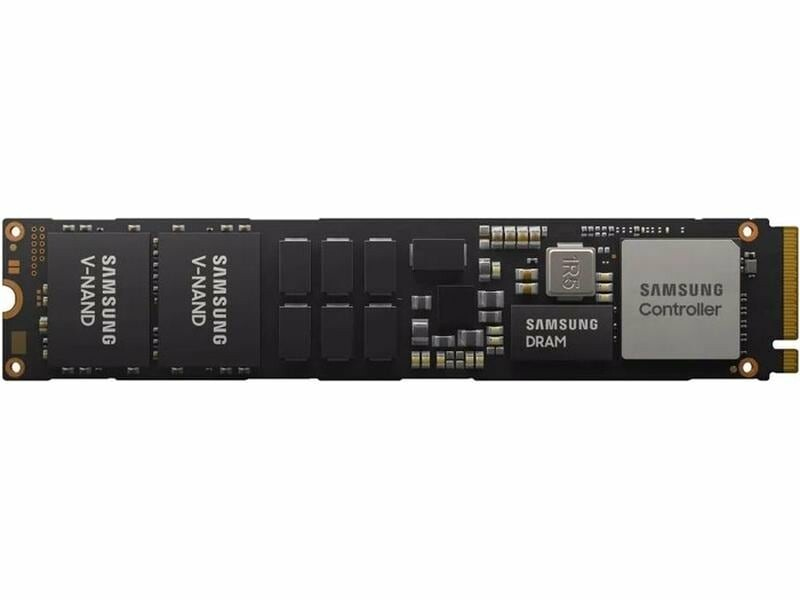

PM9A3 960 GB M.2 PCI Express 4.0 NVMe MLC
Model PM9A3Part no. MZ-QL23T800EAN 7613081107112
27 specifications
- Storage960 GB
- ConnectivityPCI Express 4.0
- Weight20 g
- Power consumption (read)7.5 W
- Width22 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 960 GB
- Connectivity
- PCI Express 4.0
- Weight
- 20 g
- Power consumption (read)
- 7.5 W
- Width
- 22 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Samsung
- Category
- Internal Solid State Drive
- Model
- PM9A3
- Part numbers
- MZ-QL23T800, MZ-QL296000, MZQL21T9HCJR-00W07, MZQL27T6HBLA-00W07, MZ1L2960HCJR-00A07, MZQL21T9HCJR-00A07 +5 more
- EAN / UPC
- 7613081107112, 4260580377473, 5055288448148, 5715063177396 +31 more
- Also known as
- Samsung PM9A3 960 GB M.2 PCI Express 4.0 NVMe MLC
Specifications
27 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 960 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| Memory type | MLC |
| Component for | PC/Laptop |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES-XTS |
| Read speed | 5500 MB/s |
| Write speed | 1400 MB/s |
| Random read (4KB) | 550000 IOPS |
| Random write (4KB) | 60000 IOPS |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (read) | 7.5 W |
| Power consumption (write) | 6.5 W |
| Power consumption (idle) | 2.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22 mm |
| Depth | 110 mm |
| Height | 3.8 mm |
| Weight | 20 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating vibration | 20 G |
| Non-operating shock | 1500 G |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717070 |
