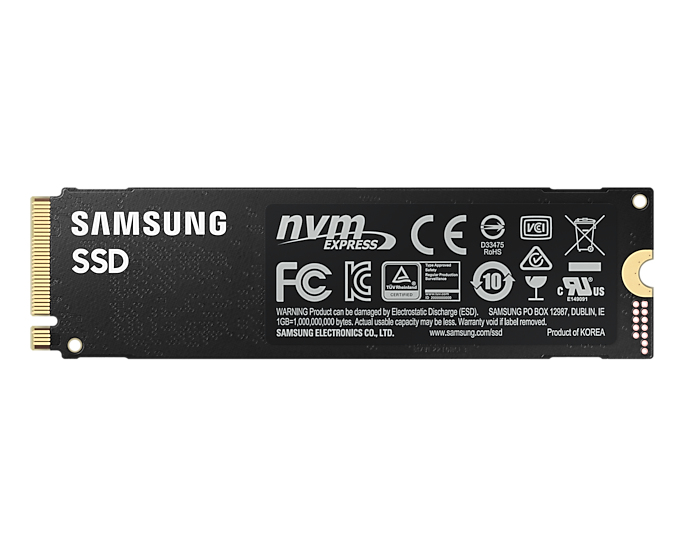

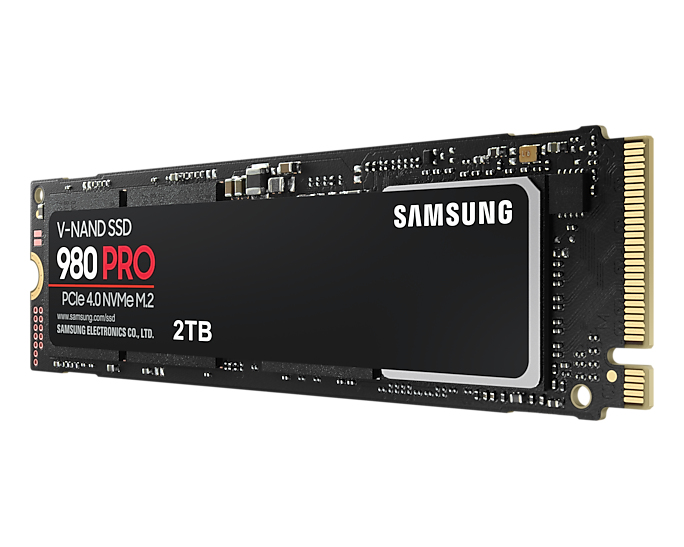

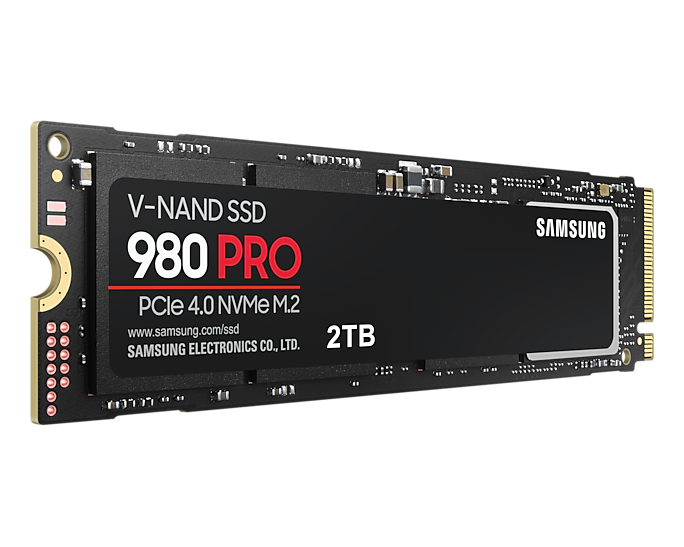

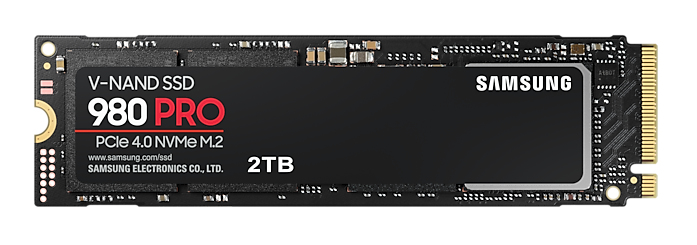

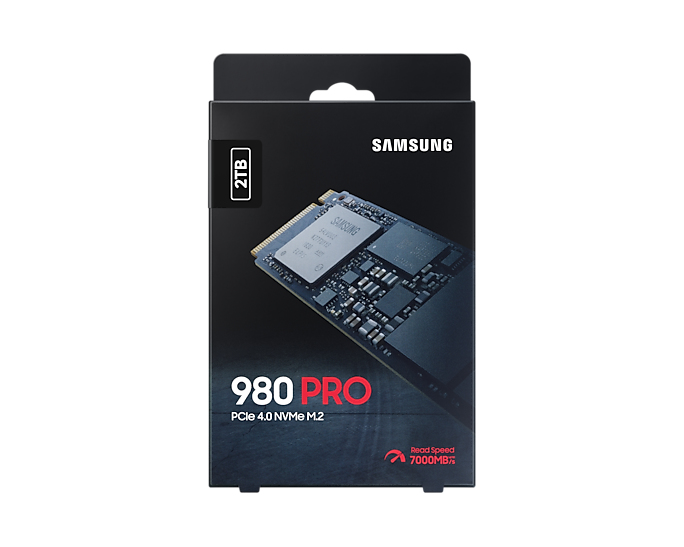

MZ-V8P2T0BW internal solid state drive
2 TB M.2 PCI Express 4.0 NVMe V-NAND MLC
Model MZ-V8P2T0BW
35 specifications
- Storage2 TB
- ConnectivityPCI Express 4.0
- Weight9 g
- Operating voltage3.3 V
- Width80.2 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 2 TB
- Connectivity
- PCI Express 4.0
- Weight
- 9 g
- Operating voltage
- 3.3 V
- Width
- 80.2 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Samsung
- Category
- Internal Solid State Drive
- Model
- MZ-V8P2T0BW
- Part number
- MZ-V8P2T0BW
- Also known as
- Samsung MZ-V8P2T0BW internal solid state drive 2 TB M.2 PCI Express 4.0 NVMe V-NAND MLC
Specifications
35 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 2 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| NVMe version | 1.3c |
| Memory type | V-NAND MLC |
| Component for | PC |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 7000 MB/s |
| Write speed | 5100 MB/s |
| Random read (4KB) | 1000000 IOPS |
| Random write (4KB) | 1000000 IOPS |
| Controller type | Samsung Elpis |
| PCI Express interface data lanes | x4 |
| DevSlp (device sleep) support | Yes |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1500000 h |
Power
| Specification | Value |
|---|---|
| Operating voltage | 3.3 V |
| Power consumption (max) | 7.2 W |
| Power consumption (average) | 6.1 W |
| Power consumption (standby) | 0.035 W |
| Power consumption (idle) | 0.035 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80.2 mm |
| Depth | 2.38 mm |
| Height | 22.1 mm |
| Weight | 9 g |
Packaging data
| Specification | Value |
|---|---|

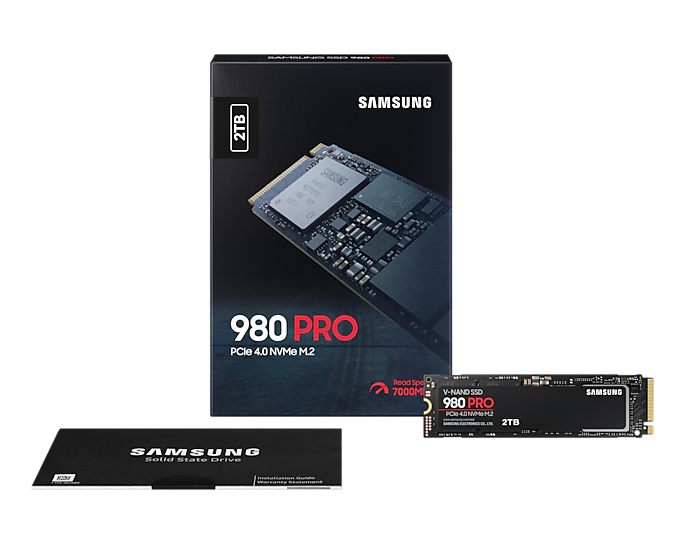

| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | 0 °C |
| Operating shock | 1500 G |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717070 |
