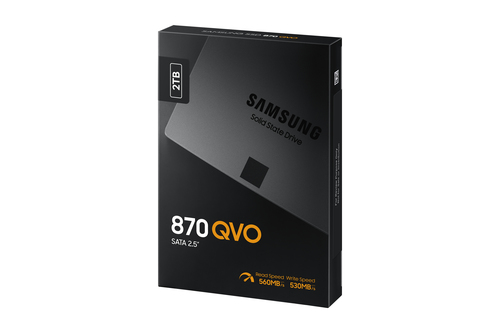

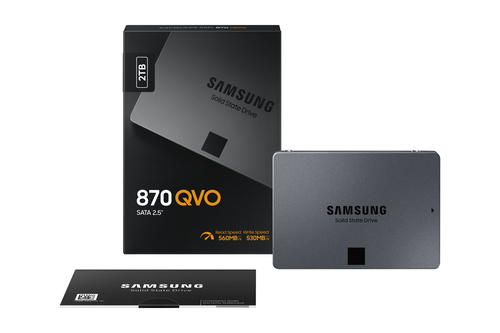

MZ-77Q2T0 2 TB 2.5" Serial ATA III V-NAND MLC
Model MZ-77Q2T0Part no. MZ-77Q2T0BWEAN 887276408675
28 specifications
- Storage2 TB
- ConnectivitySerial ATA III
- Weight46 g
- Operating voltage5 V
- Width69.8 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 2 TB
- Connectivity
- Serial ATA III
- Weight
- 46 g
- Operating voltage
- 5 V
- Width
- 69.8 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Samsung
- Category
- Internal Solid State Drive
- Model
- MZ-77Q2T0
- Part number
- MZ-77Q2T0BW
- EAN / UPC
- 887276408675, 8806090396007
- Also known as
- Samsung MZ-77Q2T0 2 TB 2.5" Serial ATA III V-NAND MLC
Specifications
28 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 2 TB |
| SSD form factor | 2.5" |
| Interface | Serial ATA III |
| Memory type | V-NAND MLC |
| Component for | PC |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| Data transfer rate | 6 Gbit/s |
| Read speed | 560 MB/s |
| Write speed | 530 MB/s |
| Random read (4KB) | 98000 IOPS |
| Random write (4KB) | 88000 IOPS |
| Controller type | Samsung MKX |
| DevSlp (device sleep) support | Yes |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1500000 h |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Power consumption (max) | 5 W |
| Power consumption (average) | 3 W |
| Power consumption (idle) | 0.03 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 69.8 mm |
| Depth | 100 mm |
| Height | 6.8 mm |
| Weight | 46 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Operating shock | 1500 G |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717070 |
