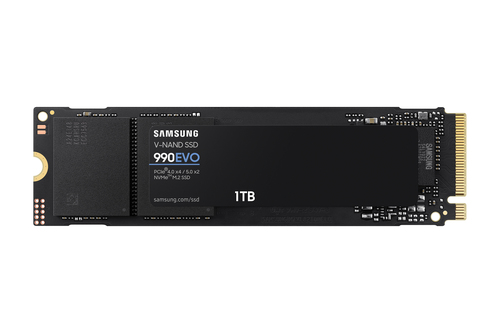

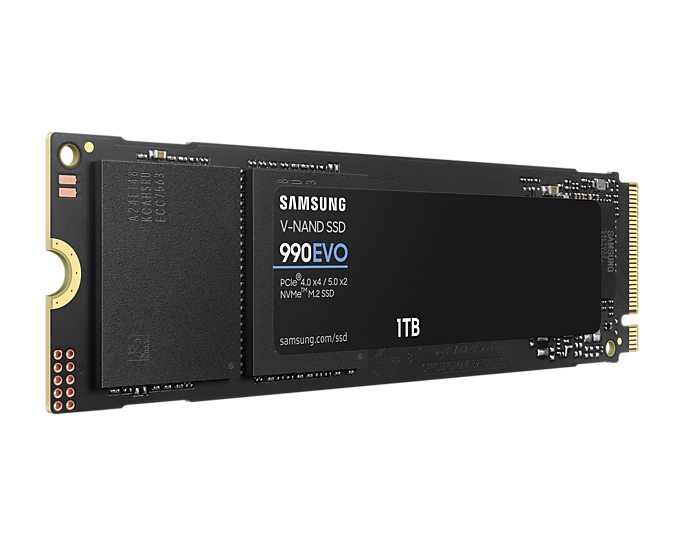

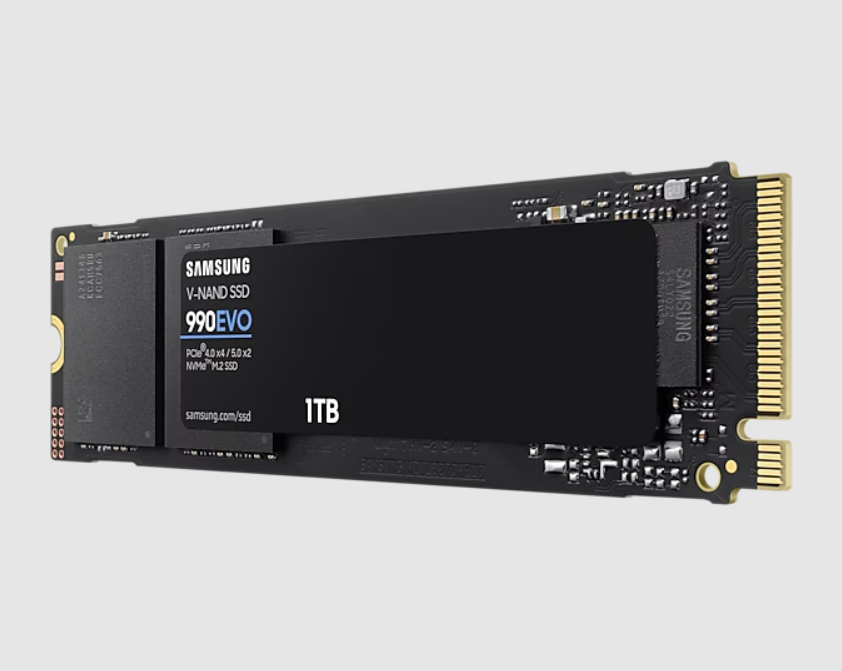

990 EVO
Model 990 EVOPart no. MZ-V9E2T0B/AMEAN 887276812526
40 specifications
- Storage1 TB
- ConnectivityPCI Express 4.0
- Weight9 g
- Operating voltage3.3 V
- Width80 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 1 TB
- Connectivity
- PCI Express 4.0
- Weight
- 9 g
- Operating voltage
- 3.3 V
- Width
- 80 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Samsung
- Category
- Internal Solid State Drive
- Model
- 990 EVO
- Part numbers
- MZ-V9E2T0B/AM, MZ-V9E1T0BW, MZ-V9E2T0BW, MZ-V9E1T0B/AM
- EAN / UPC
- 887276812526, 887276798035, 8806095300276, 887276798028 +2 more
- Also known as
- Samsung 990 EVO 1 TB M.2 PCI Express 4.0 NVMe V-NAND TLC
Specifications
40 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| NVMe version | 2.0 |
| Memory type | V-NAND TLC |
| Component for | PC |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 5000 MB/s |
| Write speed | 4200 MB/s |
| Random read (4KB) | 680000 IOPS |
| Random write (4KB) | 800000 IOPS |
| PCI Express interface data lanes | x4 |
| DevSlp (device sleep) support | Yes |
| PCI Express CEM revision | 4.0 |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1500000 h |
| TBW rating | 600 |
Power
| Specification | Value |
|---|---|
| Operating voltage | 3.3 V |
| Power consumption (read) | 4.9 W |
| Power consumption (write) | 4.5 W |
| Power consumption (sleep) | 0.005 W |
| Power consumption (idle) | 0.06 W |
| Power consumption DevSlp (device sleep) | 5 mW |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 2.38 mm |
| Height | 22 mm |
| Weight | 9 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Non-operating vibration | 20 G |
| Operating shock | 1500 G |
| Non-operating shock | 1500 G |
Other features
| Specification | Value |
|---|---|
| Warranty period | 5 year(s) |
