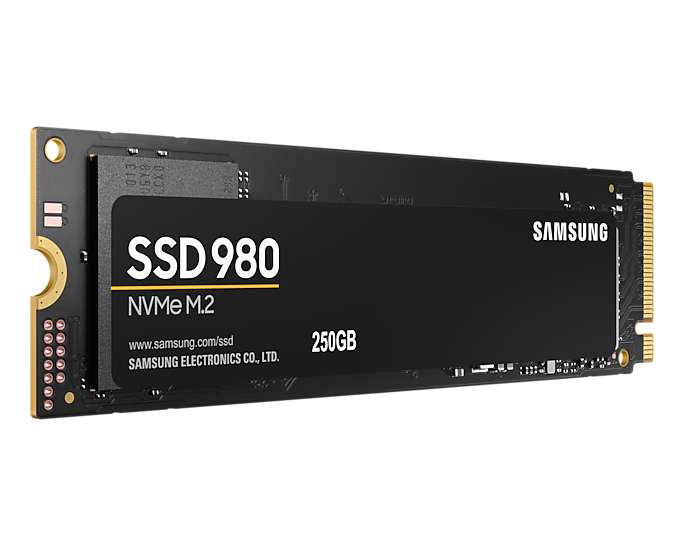

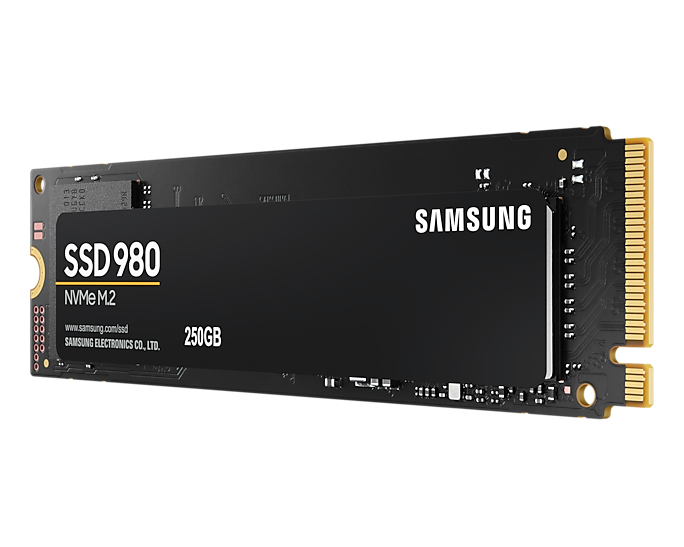

980 250 GB M.2 PCI Express 3.0 NVMe V-NAND MLC
Model 980Part no. MZ-V8V1T0B/AMEAN 887276437194
32 specifications
- Storage250 GB
- ConnectivityPCI Express 3.0
- Weight8 g
- Operating voltage3.3 V
- Width80.2 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 250 GB
- Connectivity
- PCI Express 3.0
- Weight
- 8 g
- Operating voltage
- 3.3 V
- Width
- 80.2 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Samsung
- Category
- Internal Solid State Drive
- Model
- 980
- Part numbers
- MZ-V8V1T0B/AM, MZ-V8V250BW, MZ-V8V1T0BW, MZ-V8V500BW, MZ-V8V500B/AM, MZ-V8V250B/AM
- EAN / UPC
- 887276437194, 887276437248, 8806090572234, 887276437224 +4 more
- Also known as
- Samsung 980 250 GB M.2 PCI Express 3.0 NVMe V-NAND MLC
Specifications
32 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 250 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| NVMe version | 1.4 |
| Memory type | V-NAND MLC |
| Component for | PC |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 2900 MB/s |
| Write speed | 1300 MB/s |
| Random read (4KB) | 230000 IOPS |
| Random write (4KB) | 320000 IOPS |
| Controller type | Samsung Pablo |
| PCI Express interface data lanes | x4 |
| DevSlp (device sleep) support | Yes |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1500000 h |
Power
| Specification | Value |
|---|---|
| Operating voltage | 3.3 V |
| Power consumption (max) | 5.6 W |
| Power consumption (average) | 3.7 W |
| Power consumption (idle) | 0.045 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80.2 mm |
| Depth | 22.1 mm |
| Height | 22.1 mm |
| Weight | 8 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Operating vibration | 1500 G |
| Operating shock | 1500 G |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717070 |
