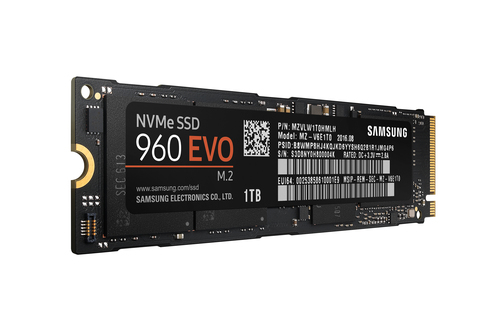

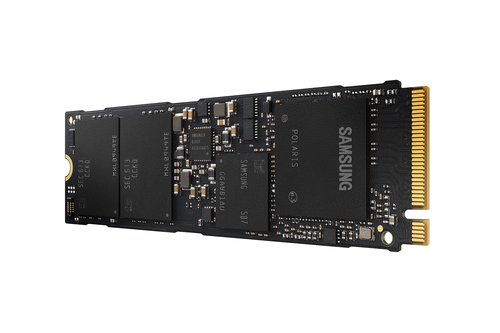

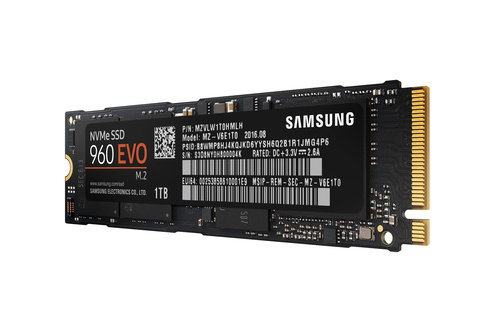

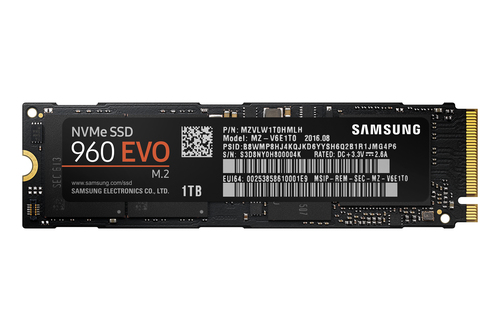

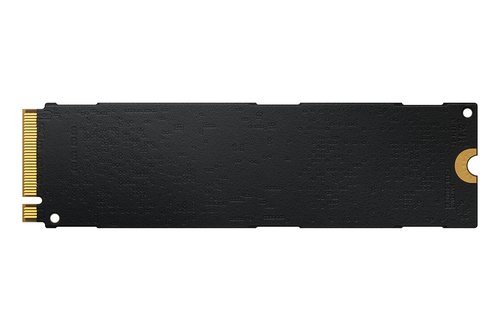

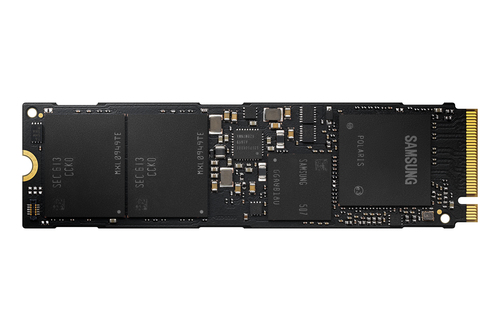

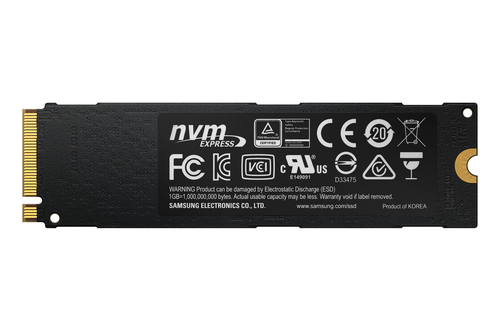

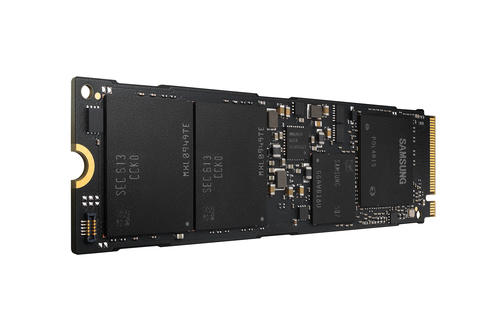

960 EVO
Model 960 EVOPart no. MZ-V6E500BW-RFBEAN 5706998783783
31 specifications
- Storage1 TB
- ConnectivityPCI Express
- Weight8 g
- ColourBlack
- Power consumption (average)5.7 W
- Width80.2 mm
Overview
- Storage
- 1 TB
- Connectivity
- PCI Express
- Weight
- 8 g
- Colour
- Black
- Power consumption (average)
- 5.7 W
- Width
- 80.2 mm
- Brand
- Samsung
- Category
- Internal Solid State Drive
- Model
- 960 EVO
- Part numbers
- MZ-V6E500BW-RFB, MZ-V6E1T0BW, MZ-V6E500BW, MZ-V6E250BW, MZ-V6E1T0B/AM, MZ-V6E250B/AM
- EAN / UPC
- 5706998783783, 887276185286, 8806088540115, 887276185293 +7 more
- Also known as
- Samsung 960 EVO 1 TB M.2 PCI Express NVMe V-NAND
Specifications
31 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | PCI Express |
| NVMe | Yes |
| NVMe version | 1.2 |
| Memory type | V-NAND |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| Read speed | 3200 MB/s |
| Write speed | 1900 MB/s |
| Maximum read (4KB) | 380000 IOPS |
| Maximum write (4KB) | 360000 IOPS |
| Random write (4KB) | 360000 IOPS |
| Controller type | Samsung Polaris |
| PCI Express interface data lanes | x4 |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1500000 h |
| Protection features | Shock resistant |
Power
| Specification | Value |
|---|---|
| Power consumption (average) | 5.7 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80.2 mm |
| Depth | 22.1 mm |
| Height | 2.38 mm |
| Weight | 8 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating shock | 1500 G |
Other features
| Specification | Value |
|---|---|
| Product colour | Black |
| Launch date | 2/14/2017 |
