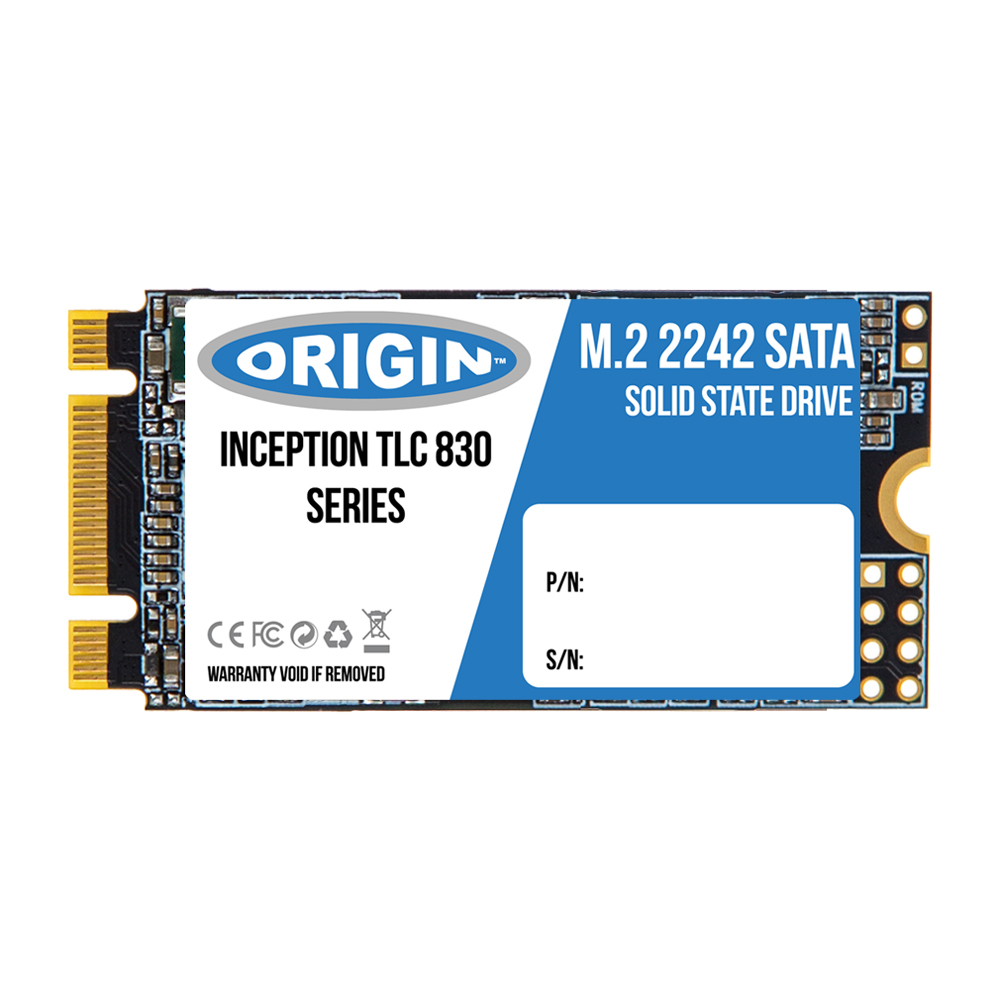

Inception TLC830 Series
240GB M.2 (NGFF) 42mm SATA 3D TLC SSD
Model OTLC2403DM.2/42EAN 5056006154891
39 specifications
- Storage240 GB
- ConnectivitySerial ATA III
- Operating voltage3.3 V
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 240 GB
- Connectivity
- Serial ATA III
- Operating voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Origin Storage
- Category
- Internal Solid State Drive
- Model
- OTLC2403DM.2/42
- Part number
- OTLC2403DM.2/42
- EAN / UPC
- 5056006154891
- Also known as
- Origin Storage Inception TLC830 Series 240GB M.2 (NGFF) 42mm SATA 3D TLC SSD
Specifications
39 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 240 GB |
| SSD form factor | M.2 |
| Interface | Serial ATA III |
| NVMe | No |
| Memory type | 3D TLC |
| Component for | PC/Laptop |
| Hardware encryption | No |
| Data transfer rate | 6 Gbit/s |
| Read speed | 550 MB/s |
| Write speed | 500 MB/s |
| Random read (4KB) | 53760 IOPS |
| Random write (4KB) | 56320 IOPS |
| Access time | 0.2 ms |
| Seek time | 0 ms |
| S.M.A.R.T. support | Yes |
| ECC | Yes |
| Hot-swap | No |
| Low-density parity-check (LDPC) | Yes |
| Mean time between failures (MTBF) | 1000000 h |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| TBW rating | 100 |
Power
| Specification | Value |
|---|---|
| Operating voltage | 3.3 V |
| Power consumption (read) | 2.78 W |
| Power consumption (write) | 4.28 W |
| Power consumption (idle) | 0.5 W |
Packaging data
| Specification | Value |
|---|---|
| Storage drive adapter included | No |
| Screws included | No |
| Package type | Blister |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -45 - 105 °C |
| Operating relative humidity (H-H) | 5 - 98% |
| Storage relative humidity (H-H) | 5 - 98% |
| Operating vibration | 16 G |
| Operating shock | 1500 G |
| Maximum operating altitude | 120000 m |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Compatible products | Universal |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717070 |
