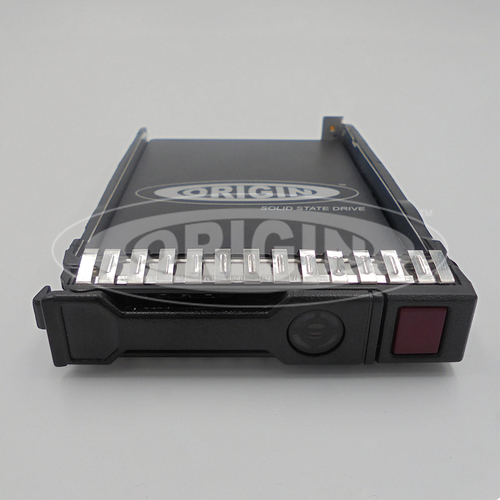

Origin Storage SSD 960GB 2.5in SAS 1DWPD in Hot Swap Caddy

Origin Storage SSD 960GB 2.5in SAS 1DWPD in Hot Swap Caddy

Model DELL-960ESASRI-S15EAN 5056006142584

33 specifications

Storage960 GB
ConnectivitySAS
Weight150 g
Operating voltage5 V
Width69.8 mm
Operating temperature (T-T)0 - 70 °C

See all specifications

Overview

Storage: 960 GB
Connectivity: SAS
Weight: 150 g
Operating voltage: 5 V
Width: 69.8 mm
Operating temperature (T-T): 0 - 70 °C

Brand: Origin Storage
Category: Internal Solid State Drive
Model: DELL-960ESASRI-S15
Part number: DELL-960ESASRI-S15
EAN / UPC: 5056006142584
Also known as: Origin Storage SSD 960GB 2.5in SAS 1DWPD in Hot Swap Caddy

Specifications

33 specifications in 7 groups

Features

Specification	Value
SSD capacity	960 GB
SSD form factor	2.5"
Interface	SAS
NVMe	No
Memory type	eMLC
NAND flash type	eMLC (Enterprise Multi Level Cell)
Component for	Server/workstation
Hardware encryption	No
Data transfer rate	12 Gbit/s
Read speed	1900 MB/s
Write speed	850 MB/s
Random read (4KB)	270000 IOPS
Random write (4KB)	60000 IOPS
Hot-swap	Yes
Mean time between failures (MTBF)	2000000 h
Windows operating systems supported	Yes
Linux operating systems supported	Yes

Power

Specification	Value
Operating voltage	5 V
Power consumption (average)	3.2 W

Weight & dimensions

Specification	Value
Width	69.8 mm
Depth	100.5 mm
Height	15 mm
Weight	150 g

Packaging data

Specification	Value
Storage drive adapter included	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Operating vibration	2.17 G
Operating shock	1000 G

Other features

Specification	Value
Compliance certificates	RoHS
Compatible products	Dell Server
Warranty period	5 year(s)

Logistics data

Specification	Value
Harmonized System (HS) code	84717070
