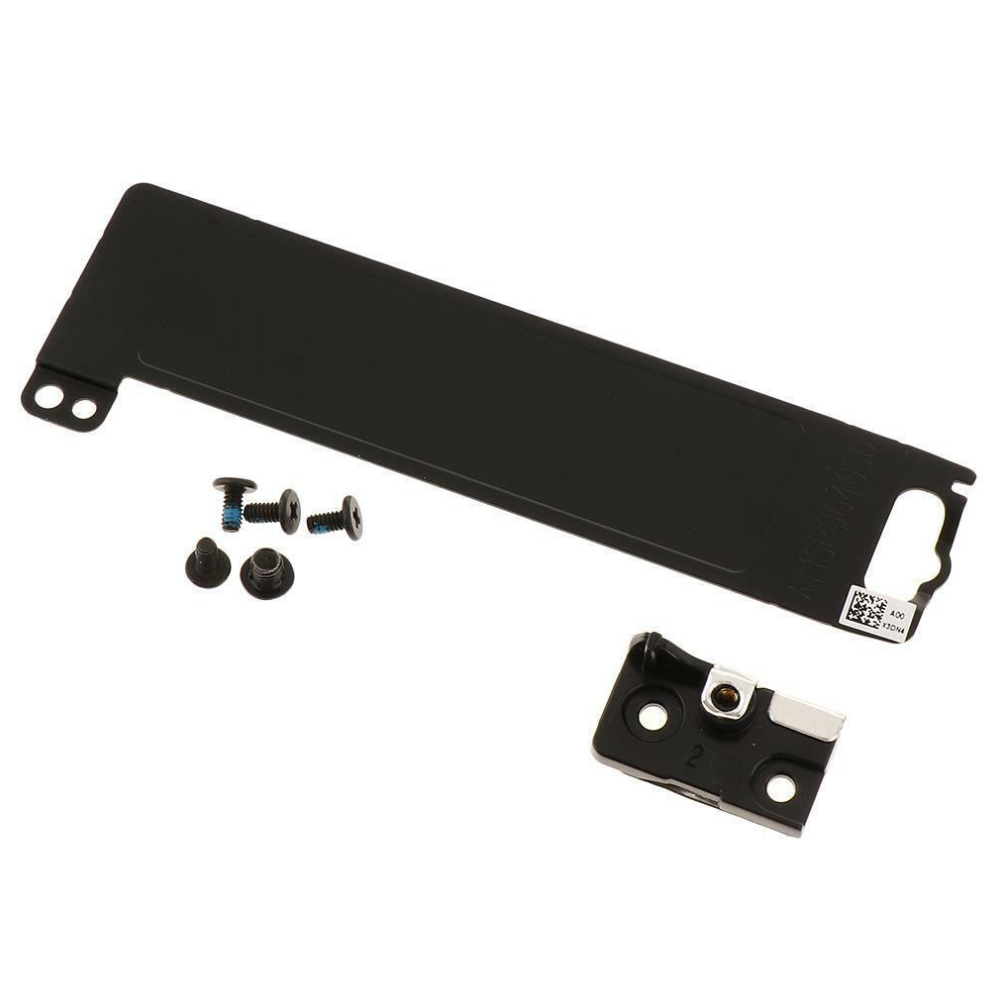

256GB NVMe M.2 SSD Lat 5280 incl. Bracket
Model DELL-2563DTLC-NB83NEAN 5056006164173
41 specifications
- Storage256 GB
- ConnectivityPCI Express 3.0
- Operating voltage3.3 V
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 256 GB
- Connectivity
- PCI Express 3.0
- Operating voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Origin Storage
- Category
- Internal Solid State Drive
- Model
- DELL-2563DTLC-NB83N
- Part number
- DELL-2563DTLC-NB83N
- EAN / UPC
- 5056006164173
- Also known as
- Origin Storage 256GB NVMe M.2 SSD Lat 5280 incl. Bracket
Specifications
41 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 256 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| Memory type | 3D TLC |
| Component for | PC/Laptop |
| Hardware encryption | No |
| Data transfer rate | 640 Gbit/s |
| Read speed | 2100 MB/s |
| Write speed | 1900 MB/s |
| Random read (4KB) | 179000 IOPS |
| Random write (4KB) | 102000 IOPS |
| Access time | 0.2 ms |
| Seek time | 0 ms |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Hot-swap | No |
| Mean time between failures (MTBF) | 1000000 h |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| TBW rating | 100 |
Power
| Specification | Value |
|---|---|
| Operating voltage | 3.3 V |
| Power consumption (read) | 2.84 W |
| Power consumption (write) | 3.22 W |
| Power consumption (max) | 3.22 W |
| Power consumption (average) | 3.03 W |
| Power consumption (idle) | 0.47 W |
Packaging data
| Specification | Value |
|---|---|
| Storage drive adapter included | No |
| Screws included | No |
| Package type | Blister |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -45 - 105 °C |
| Operating relative humidity (H-H) | 5 - 98% |
| Storage relative humidity (H-H) | 5 - 98% |
| Operating vibration | 16 G |
| Operating shock | 1500 G |
| Maximum operating altitude | 36576 m |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Compatible products | Universal |
| Warranty period | 5 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717070 |
