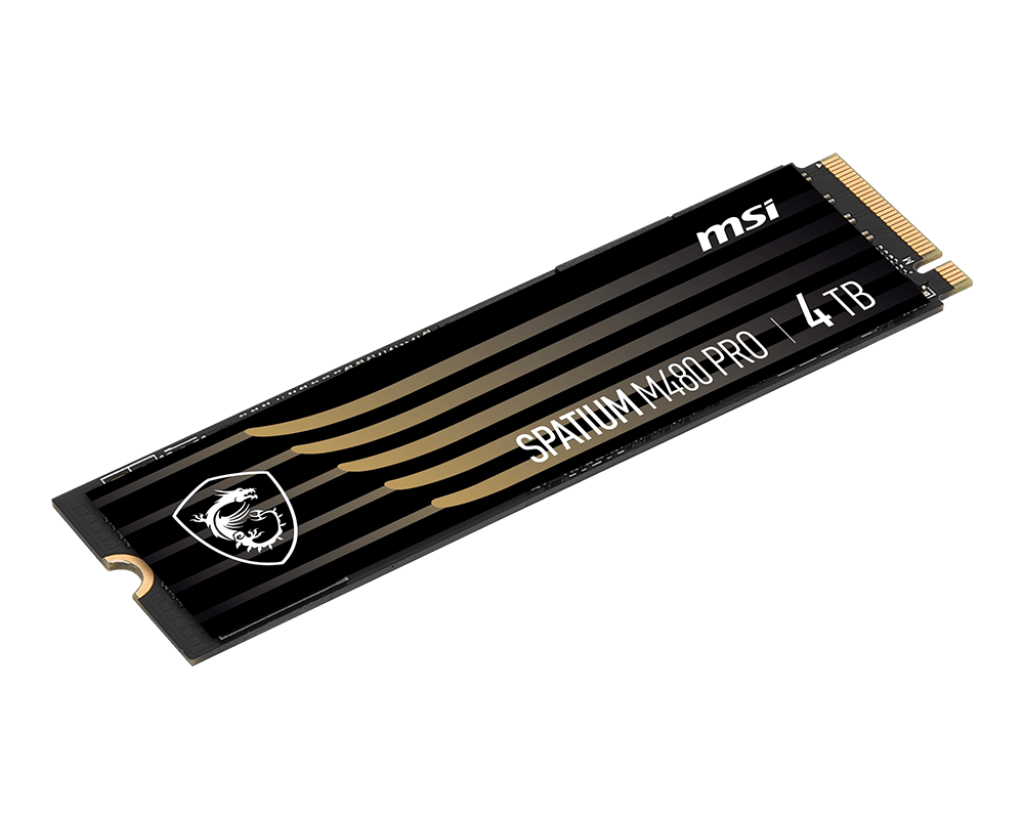

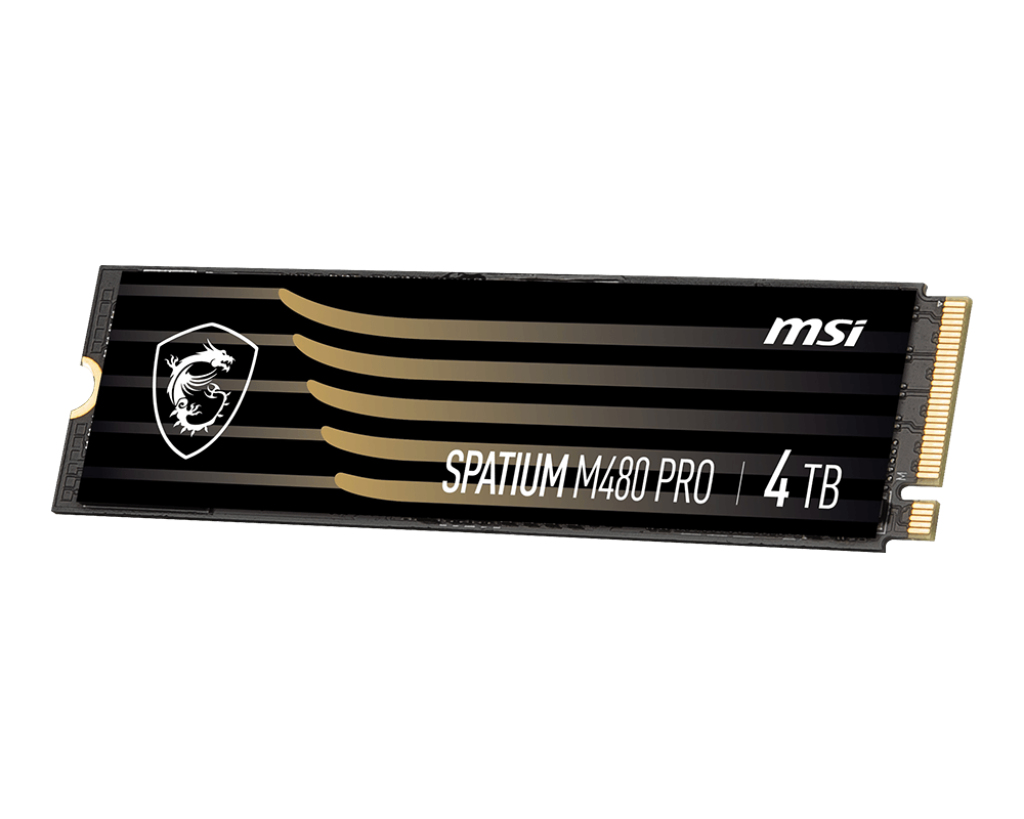

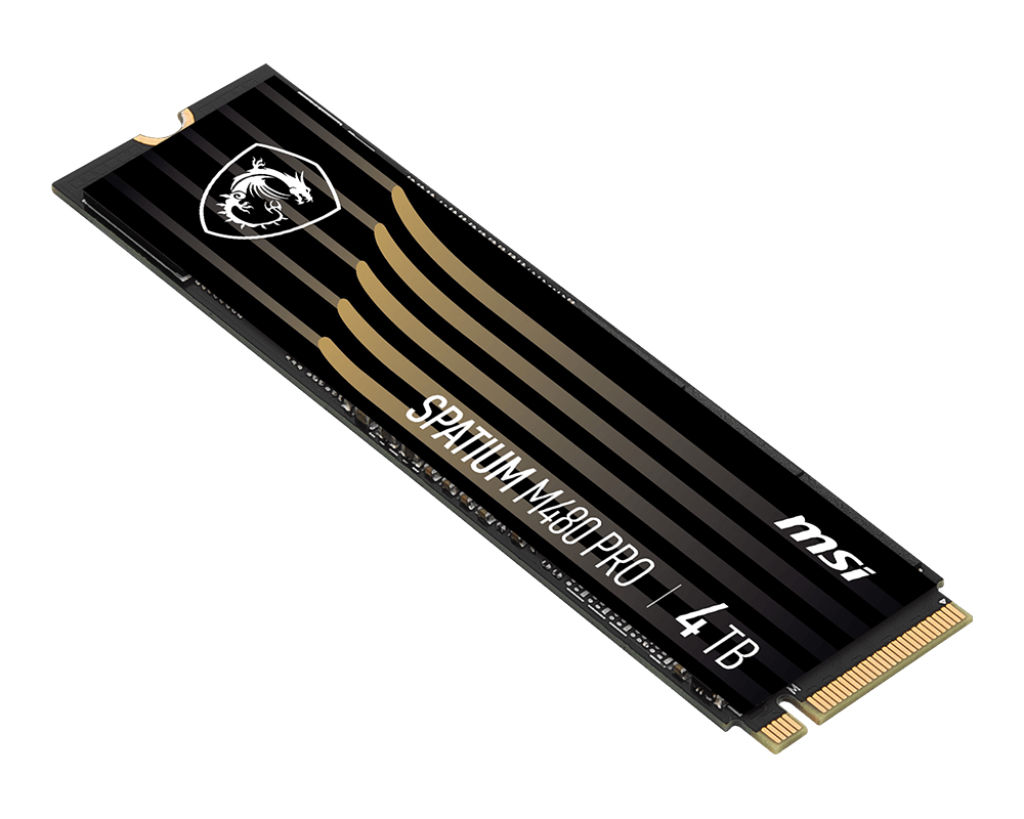

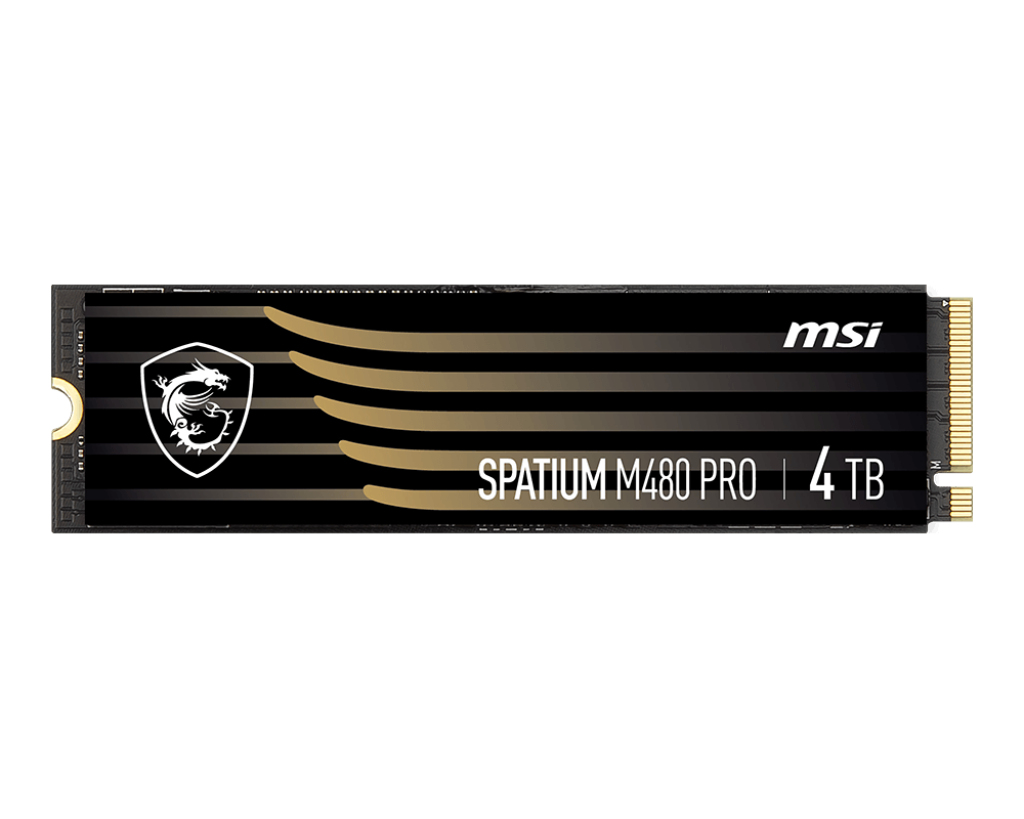

SPATIUM M480 PRO PCIE 4.0 NVME M.2 4TB
Model SPATIUM M480 PRO PCIE 4.0 NVME M.2 4TBEAN 824142326930
25 specifications
- Storage4 TB
- ConnectivityPCI Express 4.0
- Power consumption (max)11.3 W
- Width22 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 4 TB
- Connectivity
- PCI Express 4.0
- Power consumption (max)
- 11.3 W
- Width
- 22 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- MSI
- Category
- Internal Solid State Drive
- Model
- SPATIUM M480 PRO PCIE 4.0 NVME M.2 4TB
- Part number
- SPATIUM M480 PRO PCIE 4.0 NVME M.2 4TB
- EAN / UPC
- 824142326930, 4711377105620
- Also known as
- MSI SPATIUM M480 PRO PCIE 4.0 NVME M.2 4TB internal solid state drive PCI Express 4.0 3D NAND
Specifications
25 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 4 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| NVMe version | 1.4 |
| Memory type | 3D NAND |
| Component for | PC/Laptop |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 7400 MB/s |
| Write speed | 7000 MB/s |
| Random read (4KB) | 1000000 IOPS |
| Random write (4KB) | 1000000 IOPS |
| Controller type | Phison E18 |
| PCI Express interface data lanes | x4 |
| PCI Express CEM revision | 4.0 |
| S.M.A.R.T. support | Yes |
| ECC | Yes |
| Mean time between failures (MTBF) | 1600000 h |
| TBW rating | 1400 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 11.3 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.15 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
