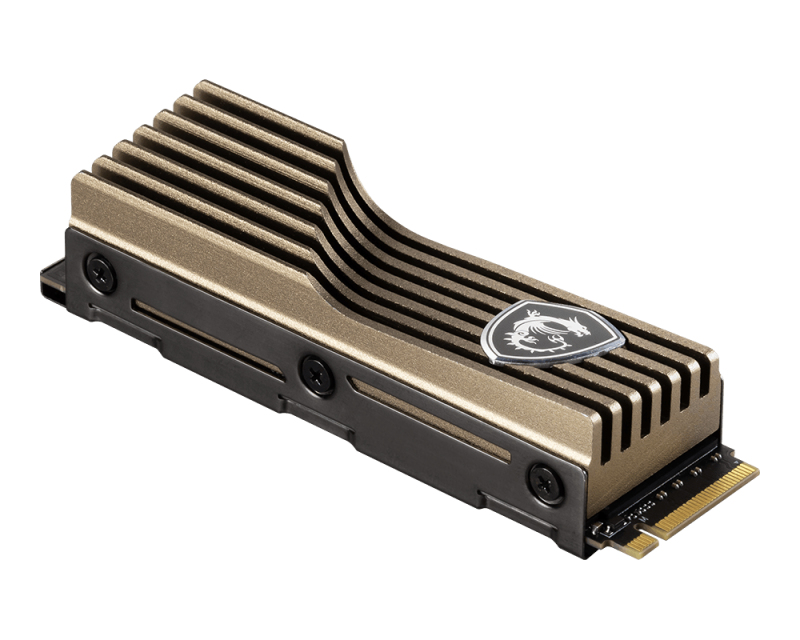

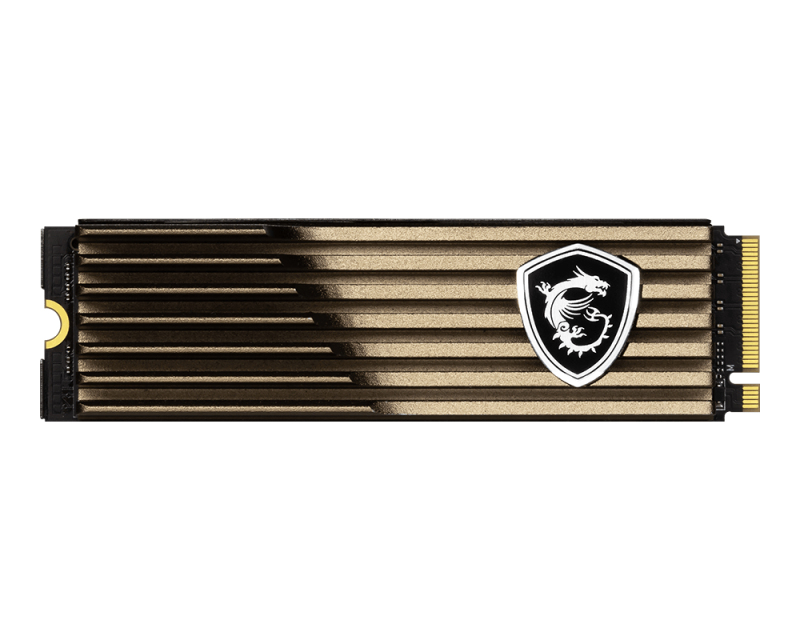

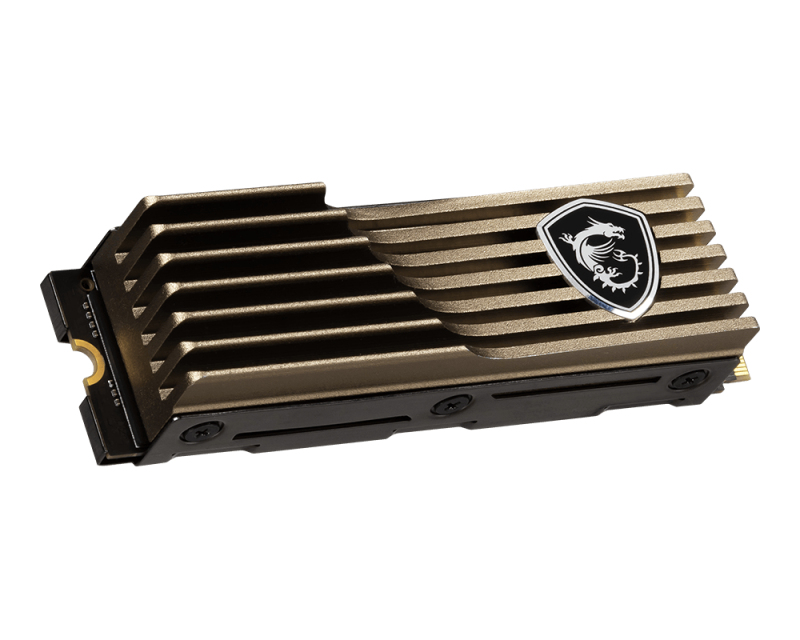

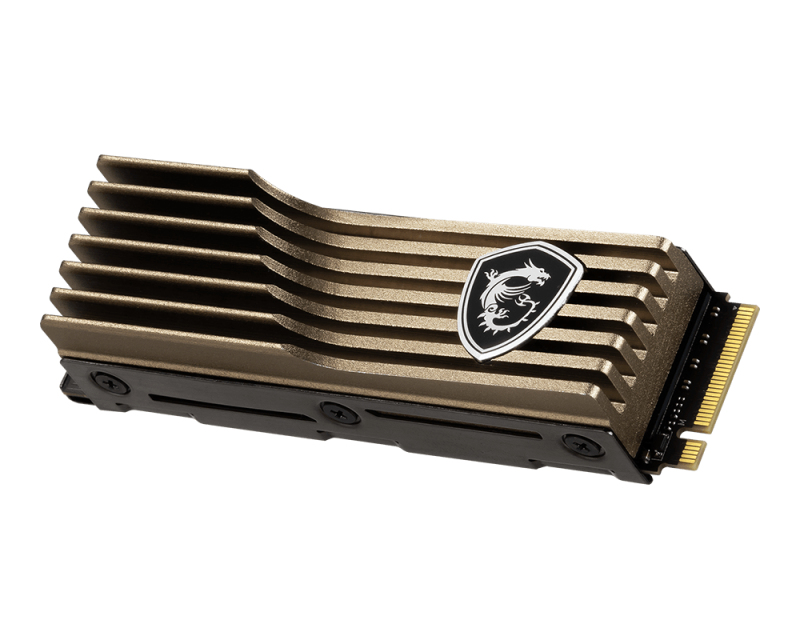

SPATIUM M480 PRO
Model SPATIUM M480 PROPart no. SM480N2TBHEAN 824142236949
34 specifications
- Storage2 TB
- ConnectivityPCI Express 4.0
- Power consumption (max)10.5 W
- Width22 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 2 TB
- Connectivity
- PCI Express 4.0
- Power consumption (max)
- 10.5 W
- Width
- 22 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- MSI
- Category
- Internal Solid State Drive
- Model
- SPATIUM M480 PRO
- Part numbers
- SM480N2TBH, SM480N1TBH
- EAN / UPC
- 824142236949, 824142236932
- Also known as
- MSI SPATIUM M480 PRO 2 TB M.2 PCI Express 4.0 NVMe 3D NAND
Specifications
34 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 2 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| NVMe version | 1.4 |
| Memory type | 3D NAND |
| Component for | PC/Laptop |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Target workload | Mixed Use (MU) |
| Random read (4KB) | 1000000 IOPS |
| Random write (4KB) | 1000000 IOPS |
| Sequential read speed (CDM) | 7400 MB/s |
| Sequential write speed (CDM) | 7000 MB/s |
| Controller type | Phison E18 |
| M.2 key ID | M |
| PCI Express interface data lanes | x4 |
| PCI Express CEM revision | 4.0 |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| ECC | Yes |
| End-to-End Data Protection | Yes |
| External DDR cache | Yes |
| External DDR cache quantity | 1024 MB |
| Mean time between failures (MTBF) | 1600000 h |
| TBW rating | 1400 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 10.5 W |
| Power consumption (idle) | 0.45 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22 mm |
| Depth | 80 mm |
| Height | 20.4 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
