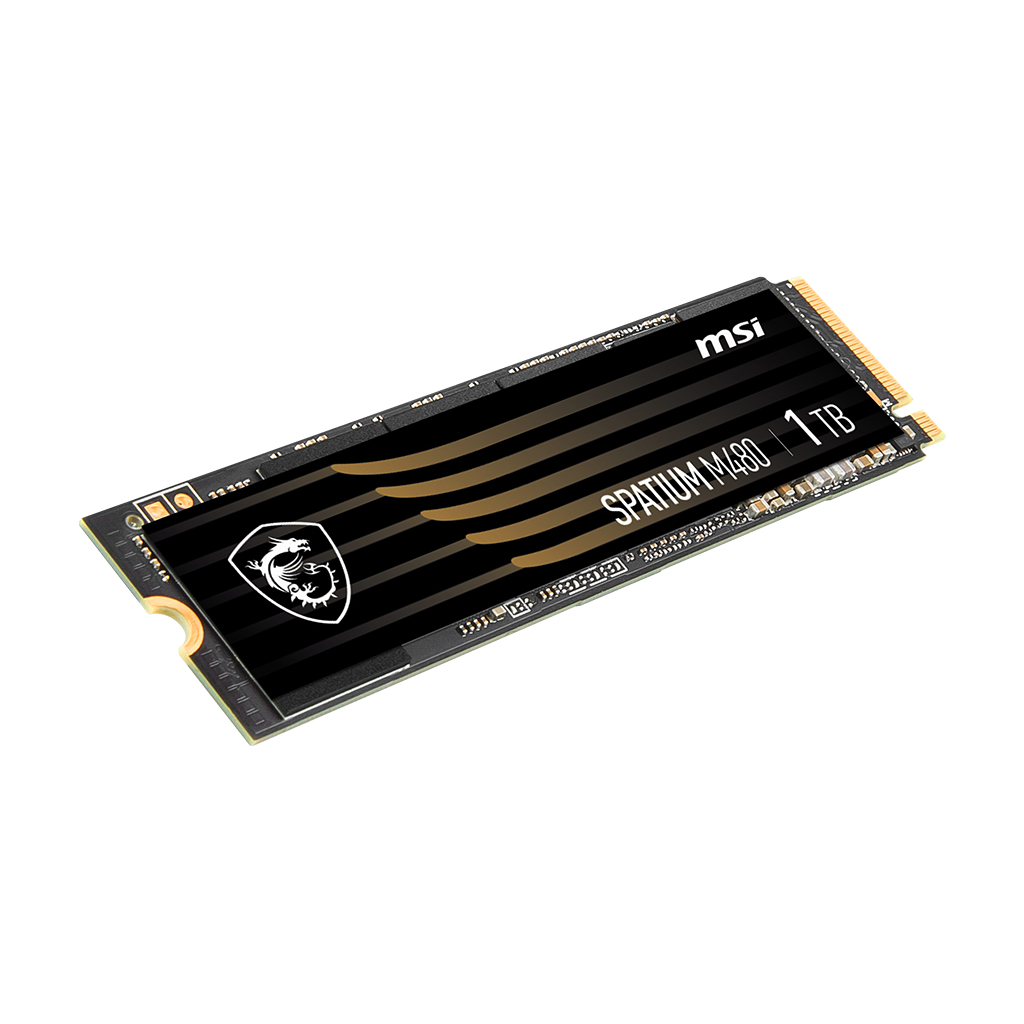

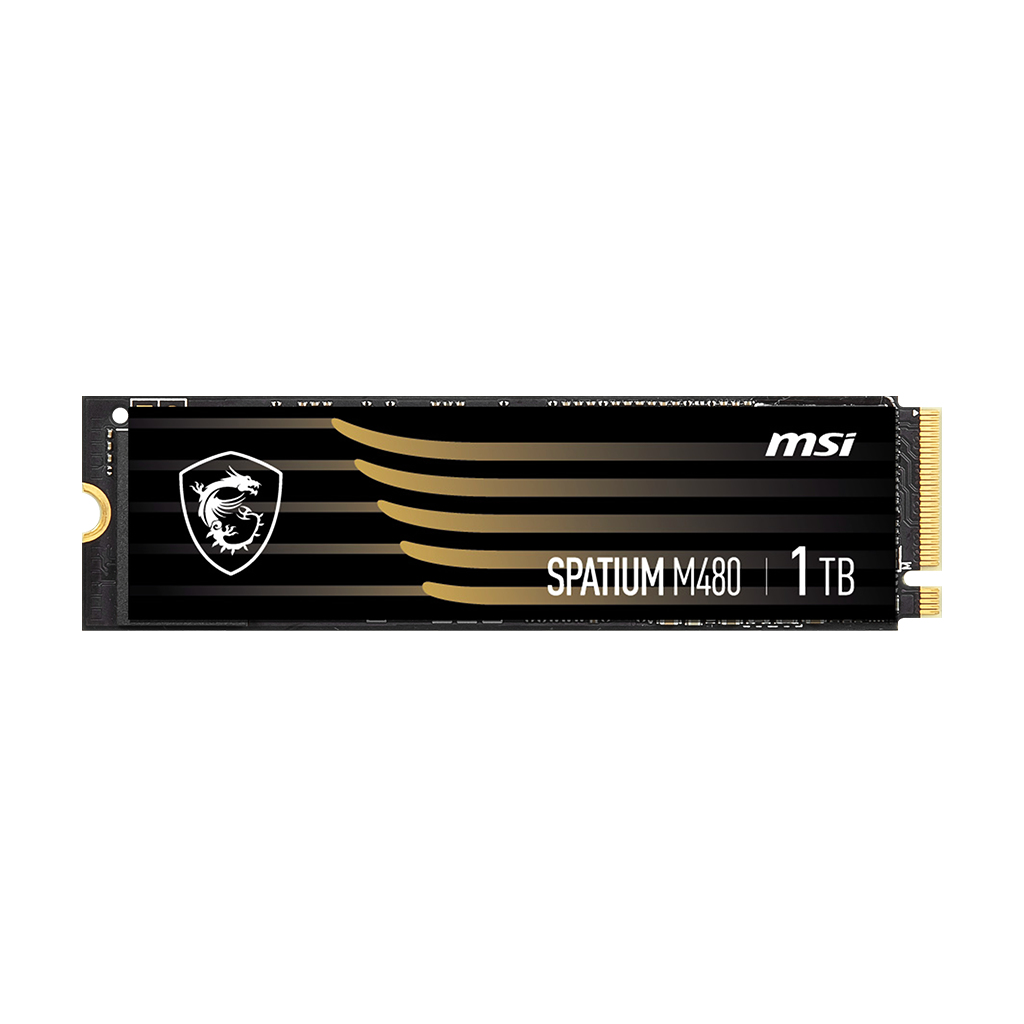

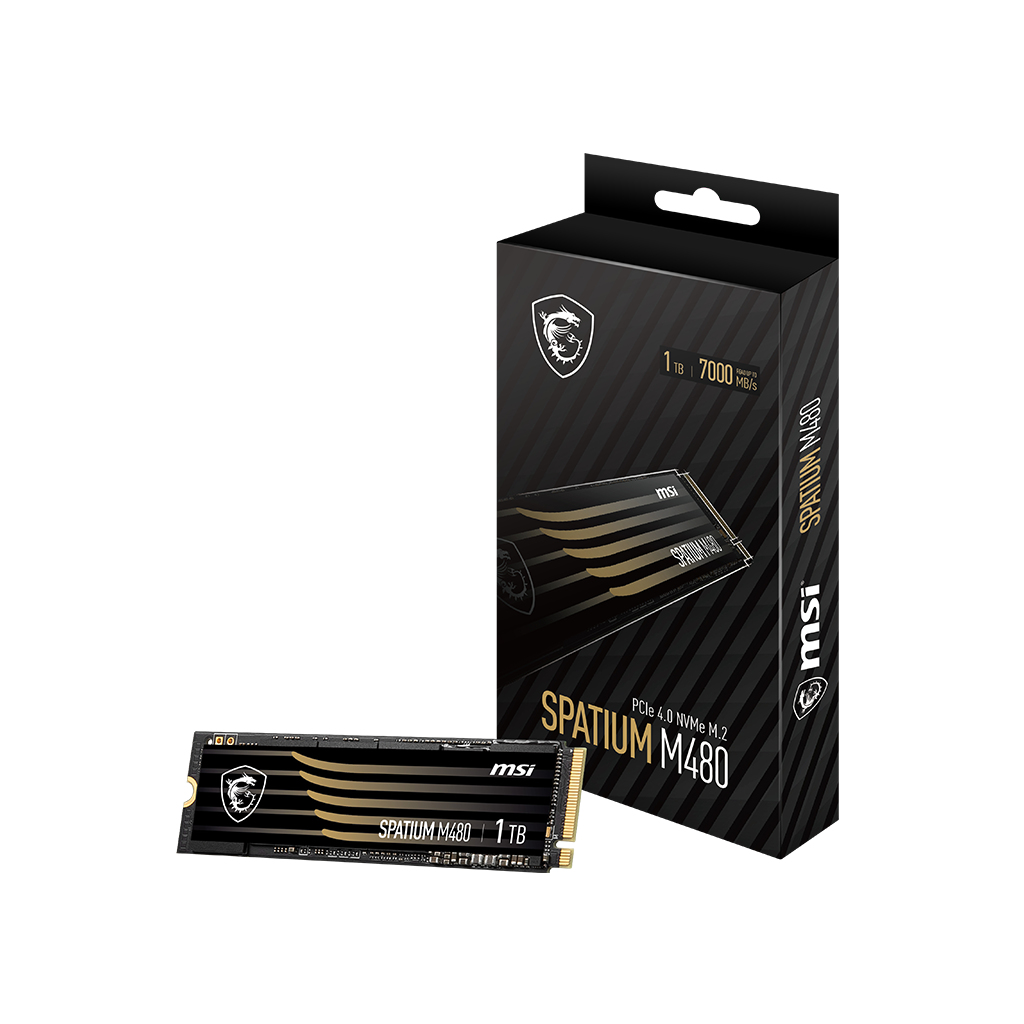

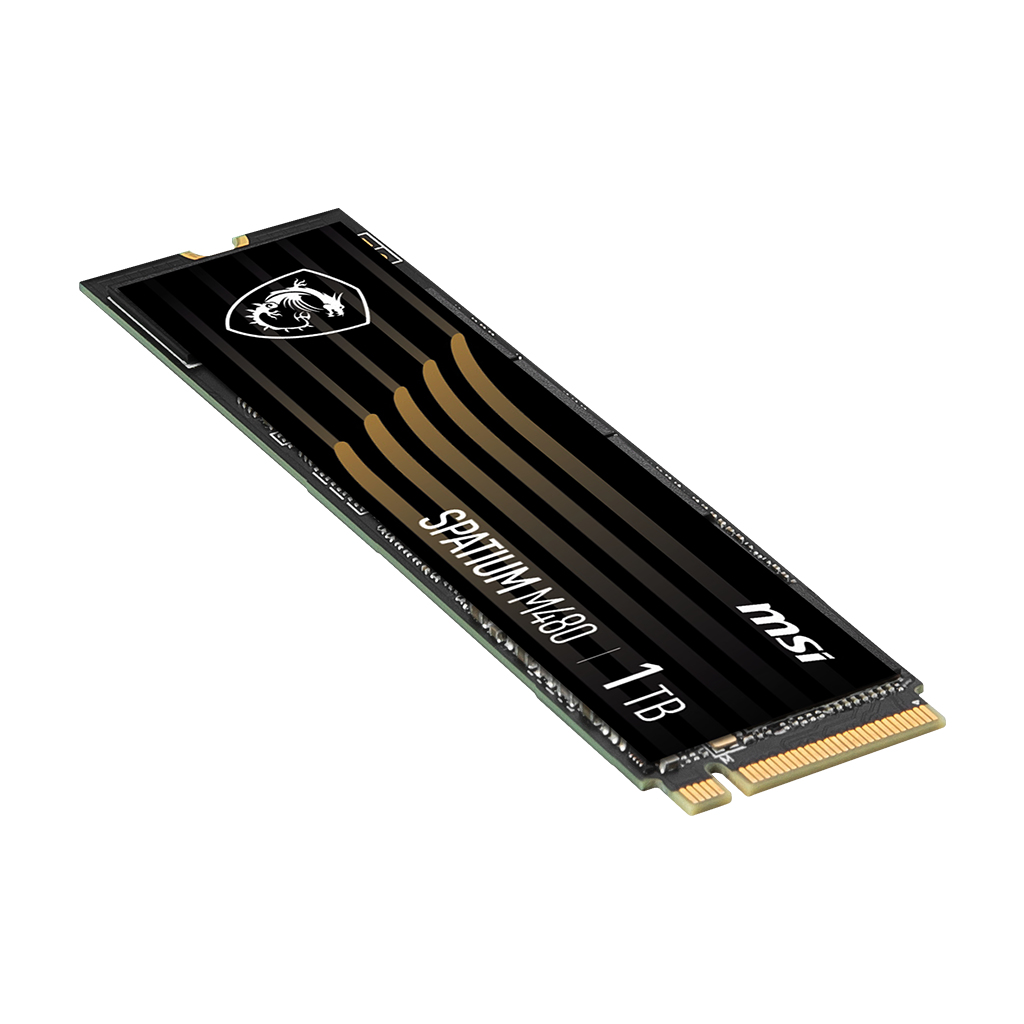

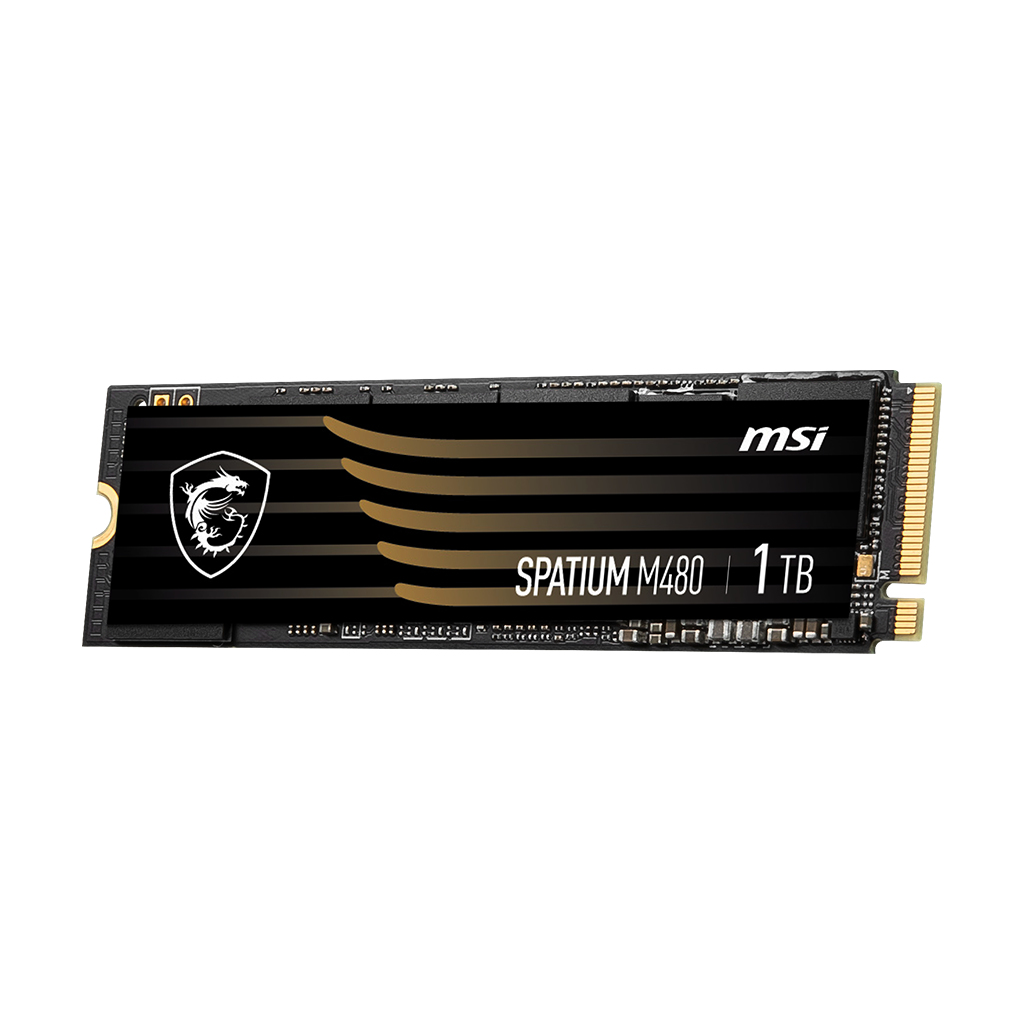

SM480N1TB internal solid state drive
1 TB M.2 PCI Express 4.0 NVMe 3D NAND
Model SM480N1TBEAN 824142304136
30 specifications
- Storage1 TB
- ConnectivityPCI Express 4.0
- Weight454 g
- Power consumption (max)6.6 W
- Width22 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 1 TB
- Connectivity
- PCI Express 4.0
- Weight
- 454 g
- Power consumption (max)
- 6.6 W
- Width
- 22 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- MSI
- Category
- Internal Solid State Drive
- Model
- SM480N1TB
- Part number
- SM480N1TB
- EAN / UPC
- 824142304136
- Also known as
- MSI SM480N1TB internal solid state drive 1 TB M.2 PCI Express 4.0 NVMe 3D NAND
Specifications
30 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| NVMe version | 1.4 |
| Memory type | 3D NAND |
| Component for | PC/Laptop |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| Read speed | 7000 MB/s |
| Write speed | 5500 MB/s |
| Random read (4KB) | 350000 IOPS |
| Random write (4KB) | 700000 IOPS |
| Controller type | Phison E18 |
| PCI Express interface data lanes | x4 |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| ECC | Yes |
| Low-density parity-check (LDPC) | Yes |
| End-to-End Data Protection | Yes |
| External DDR cache | Yes |
| Mean time between failures (MTBF) | 1600000 h |
| TBW rating | 700 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 6.6 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2 mm |
| Weight | 454 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
