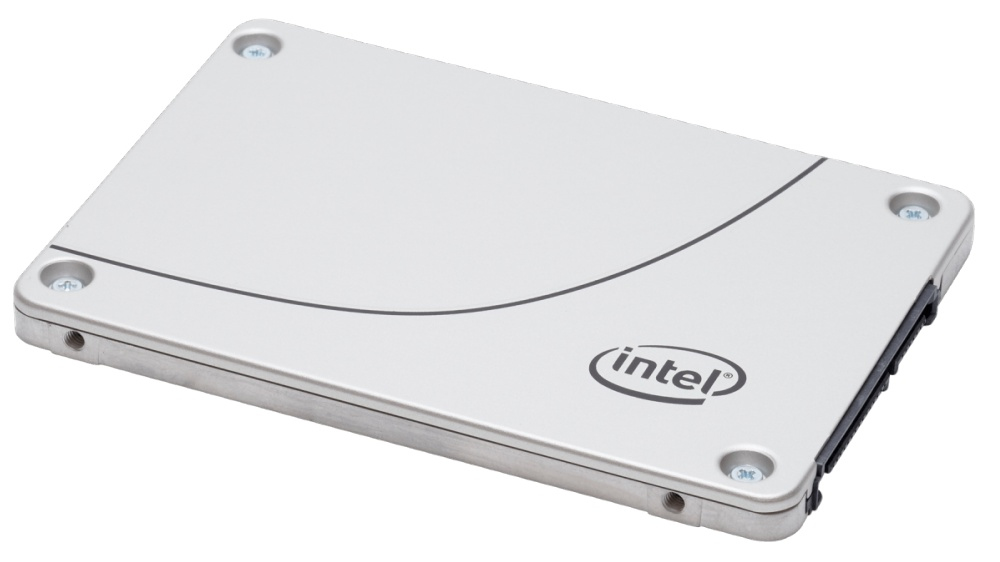

S4600 480 GB 2.5" SAS 3D TLC
Model S4600Part no. 7SD7A05722EAN 889488454693
35 specifications
- Storage480 GB
- ConnectivitySAS
- ColourAluminium
- Power consumption (average)4.5 W
- Intel High Endurance Technology (HET)Yes
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 480 GB
- Connectivity
- SAS
- Colour
- Aluminium
- Power consumption (average)
- 4.5 W
- Intel High Endurance Technology (HET)
- Yes
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Lenovo
- Category
- Internal Solid State Drive
- Model
- S4600
- Part numbers
- 7SD7A05722, 7SD7A05723, 7SD7A05718
- EAN / UPC
- 889488454693, 889488454723, 889488454730
- Also known as
- Lenovo S4600 480 GB 2.5" SAS 3D TLC
Specifications
35 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 480 GB |
| SSD form factor | 2.5" |
| Interface | SAS |
| Memory type | 3D TLC |
| NAND flash type | TLC (Triple Level Cell) |
| Component for | Server/workstation |
| Security algorithms | 256-bit AES |
| Data transfer rate | 6 Gbit/s |
| Random read (4KB) | 72000 IOPS |
| Random write (4KB) | 60000 IOPS |
| Read latency | 36 µs |
| Write latency | 36 µs |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Data path protection | Yes |
| Power loss protection | Yes |
| End-to-End Data Protection | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| Endurance rating (for 5 years) | 3.36 GB/day |
| TBW rating | 2.95 |
| Certification | FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU WEEE Directive 2002/96/EC |
Power
| Specification | Value |
|---|---|
| Power consumption (average) | 4.5 W |
Brand-specific features
| Specification | Value |
|---|---|
| Intel High Endurance Technology (HET) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -55 - 95 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating vibration | 2.17 G |
| Non-operating vibration | 3.13 G |
| Operating shock | 1000 G |
| Maximum operating altitude | 3050 m |
Other features
| Specification | Value |
|---|---|
| Product colour | Aluminium |
| Compliance certificates | RoHS |
| Compatible products | ThinkSystem ST550, SR530, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950, SD530, SN550, SN850 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717070 |
