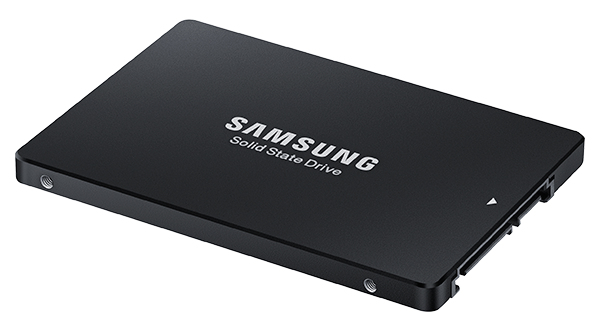

PM863a 240 GB 2.5" Serial ATA III V-NAND
Model PM863aPart no. 4XB0K12354EAN 191200315510
21 specifications
- Storage240 GB
- ConnectivitySerial ATA III
- Weight60 g
- Power consumption (read)3 W
- Width70 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 240 GB
- Connectivity
- Serial ATA III
- Weight
- 60 g
- Power consumption (read)
- 3 W
- Width
- 70 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Lenovo
- Category
- Internal Solid State Drive
- Model
- PM863a
- Part number
- 4XB0K12354
- EAN / UPC
- 191200315510
- Also known as
- Lenovo PM863a 240 GB 2.5" Serial ATA III V-NAND
Specifications
21 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 240 GB |
| SSD form factor | 2.5" |
| Interface | Serial ATA III |
| Memory type | V-NAND |
| Component for | Server/workstation |
| Read latency | 130 µs |
| Write latency | 30 µs |
| ECC | Yes |
| Hot-swap | No |
| Mean time between failures (MTBF) | 2000000 h |
| Certification | UL TUV FCC CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI) |
Power
| Specification | Value |
|---|---|
| Power consumption (read) | 3 W |
| Power consumption (write) | 3 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 60 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 8 - 85% |
| Operating shock | 1500 G |
| Maximum operating altitude | 3050 m |
