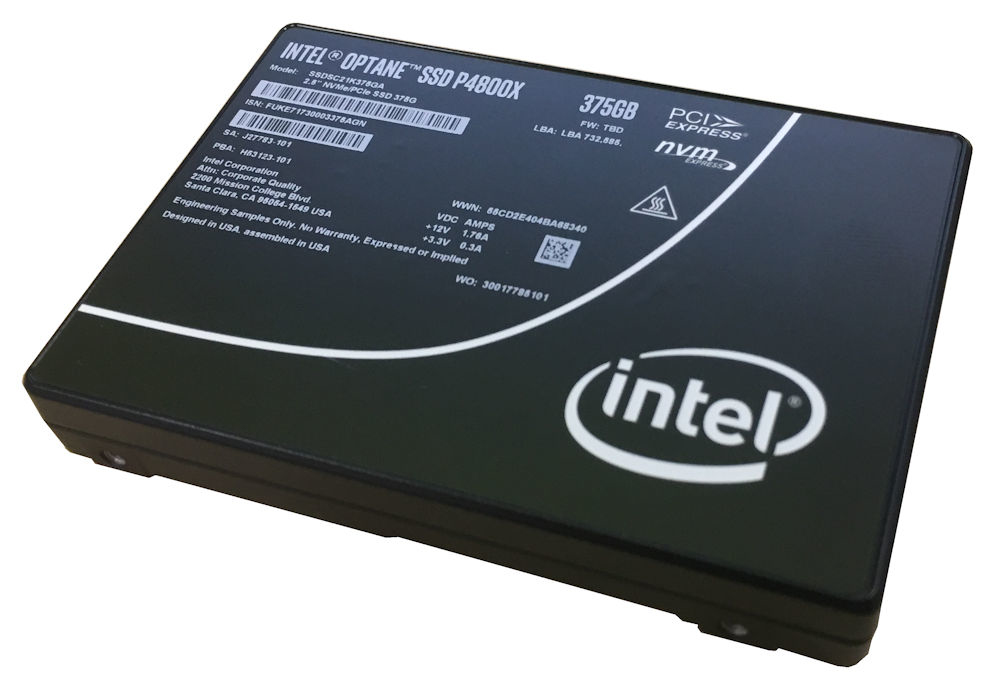

P4800X 375 GB 2.5" PCI Express 3.0 NVMe 3D XPoint
Model P4800XPart no. 4XB7A38159EAN 889488511273
26 specifications
- Storage375 GB
- ConnectivityPCI Express 3.0
- Power consumption (read)8 W
- Width70 mm
- Operating temperature (T-T)0 - 35 °C
Overview
- Storage
- 375 GB
- Connectivity
- PCI Express 3.0
- Power consumption (read)
- 8 W
- Width
- 70 mm
- Operating temperature (T-T)
- 0 - 35 °C
- Brand
- Lenovo
- Category
- Internal Solid State Drive
- Model
- P4800X
- Part numbers
- 4XB7A38159, 4XB7A38164
- EAN / UPC
- 889488511273
- Also known as
- Lenovo P4800X 375 GB 2.5" PCI Express 3.0 NVMe 3D XPoint
Specifications
26 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 375 GB |
| SSD form factor | 2.5" |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| Memory type | 3D XPoint |
| Component for | Server |
| Random read (4KB) | 550000 IOPS |
| Random write (4KB) | 550000 IOPS |
| Random latency - read (up to) | 10 µs |
| Random latency - write (up to) | 11 µs |
| Hot-swap | No |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Drive writes per day (DWPD) | 60 |
| Mean time between failures (MTBF) | 2000000 h |
| Certification | FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU WEEE Directive 2002/96/EC |
Power
| Specification | Value |
|---|---|
| Power consumption (read) | 8 W |
| Power consumption (write) | 13 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 100 mm |
| Height | 15 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating vibration | 2.17 G |
| Operating shock | 1000 G |
| Maximum operating altitude | 3048 m |
Other features
| Specification | Value |
|---|---|
| Endurance rating | 41 PB |
