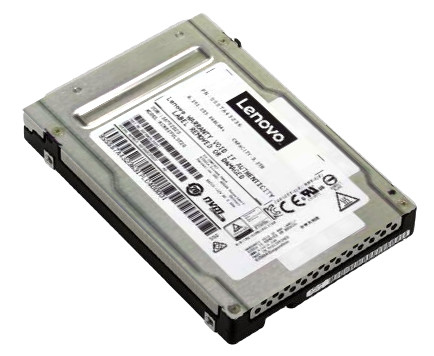

Kioxia CM6-V
Model Kioxia CM6-VPart no. 4XB7A64175EAN 889488542307
28 specifications
- Storage800 GB
- ConnectivityPCI Express 4.0
- Weight130 g
- Power consumption (max)14 W
- Width70 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 800 GB
- Connectivity
- PCI Express 4.0
- Weight
- 130 g
- Power consumption (max)
- 14 W
- Width
- 70 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Lenovo
- Category
- Internal Solid State Drive
- Model
- Kioxia CM6-V
- Part number
- 4XB7A64175
- EAN / UPC
- 889488542307
- Also known as
- Lenovo Kioxia CM6-V 800 GB U.3 PCI Express 4.0 NVMe 3D TLC
Specifications
28 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 800 GB |
| SSD form factor | U.3 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| Memory type | 3D TLC |
| Component for | Server/workstation |
| Random read (4KB) | 880000 IOPS |
| Random write (4KB) | 100000 IOPS |
| Random latency - read (up to) | 90 µs |
| Random latency - write (up to) | 10 µs |
| Hot-swap | Yes |
| End-to-End Data Protection | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Drive writes per day (DWPD) | 3 |
| Mean time between failures (MTBF) | 2500000 h |
| Certification | Underwriters Laboratories: UL60950-1 Canada: CAN/CSA-C22.2 No.60950-1 TUV: EN 60950-1 BSMI (Taiwan): CNS 13438 (CISPR Pub. 22 Class B): D33003 MSIP: KN22, KN24 (CISPR Pub. 22 Class B) Australia/New Zealand: AS/NZS CISPR32:2015 Class B Canada: ICES-003 Issue 6 Class B EMC: EN55022 (2015) Class B EMC: |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 14 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 100 mm |
| Height | 15 mm |
| Weight | 130 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating vibration | 2.17 G |
| Operating shock | 1000 G |
| Maximum non-operating altitude | 12192 m |
| Maximum operating altitude | 5486 m |
